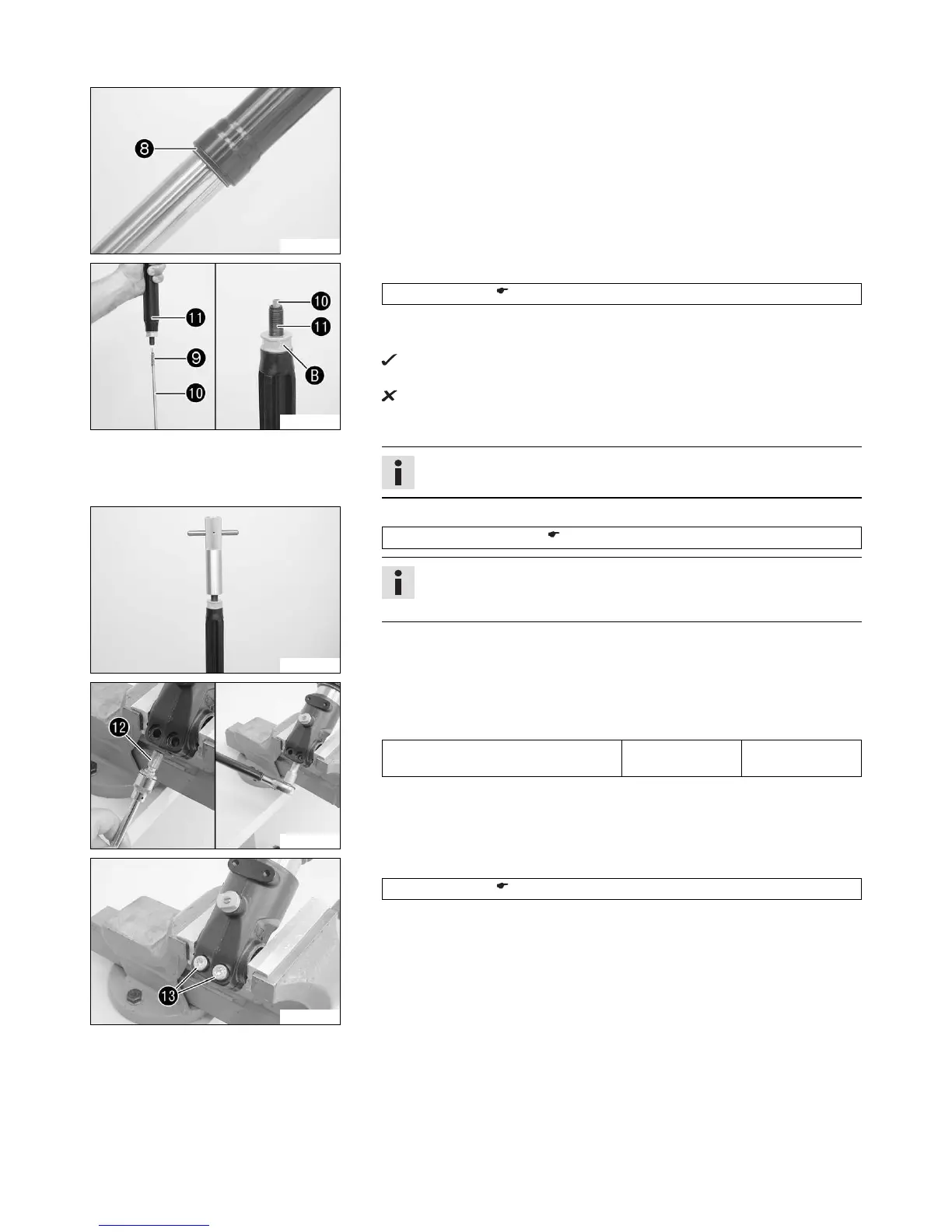

6 FORK, TRIPLE CLAMP 25
200655-11
– Mount dust boot 8.
200674-10
– Grease the O-ring of valve 9 of the rebound damping.
Lubricant (T158) ( p. 208)
– Mount valve 9 of the rebound damping with the spring on adjusting tube bk.
– Mount valve 9 of the rebound damping from below in cartridge bl.
The adjusting tube protrudes 5 mm from the cartridge and can be pressed in
against the resistance of the spring.
The adjusting tube protrudes more than 7 mm from the cartridge and cannot
be pressed in against the resistance of the spring.
– Screw on fluid barrier B as far as it will go.
Info
The fluid barrier must be tightened as much as possible. Do not use tools.
200675-10
– Install the special tool on the cartridge.
Gripping tool (T14026S1) ( p. 221)
Info
The special tool must be used to prevent the adjusting tube from being
lifted and thus to prevent oil from reaching the piston rod.
200683-10
– Push the cartridge with the spring seat and preload spacer into the inner tube.
– Mount screw bm of the cartridge with the seal ring and tighten it.
Guideline
Cartridge screw M12x1 25 Nm
(18.4 lbf ft)
200682-10
– Grease and mount screws bn of the axle clamp but do not tighten.
Lubricant (T152) ( p. 209)
