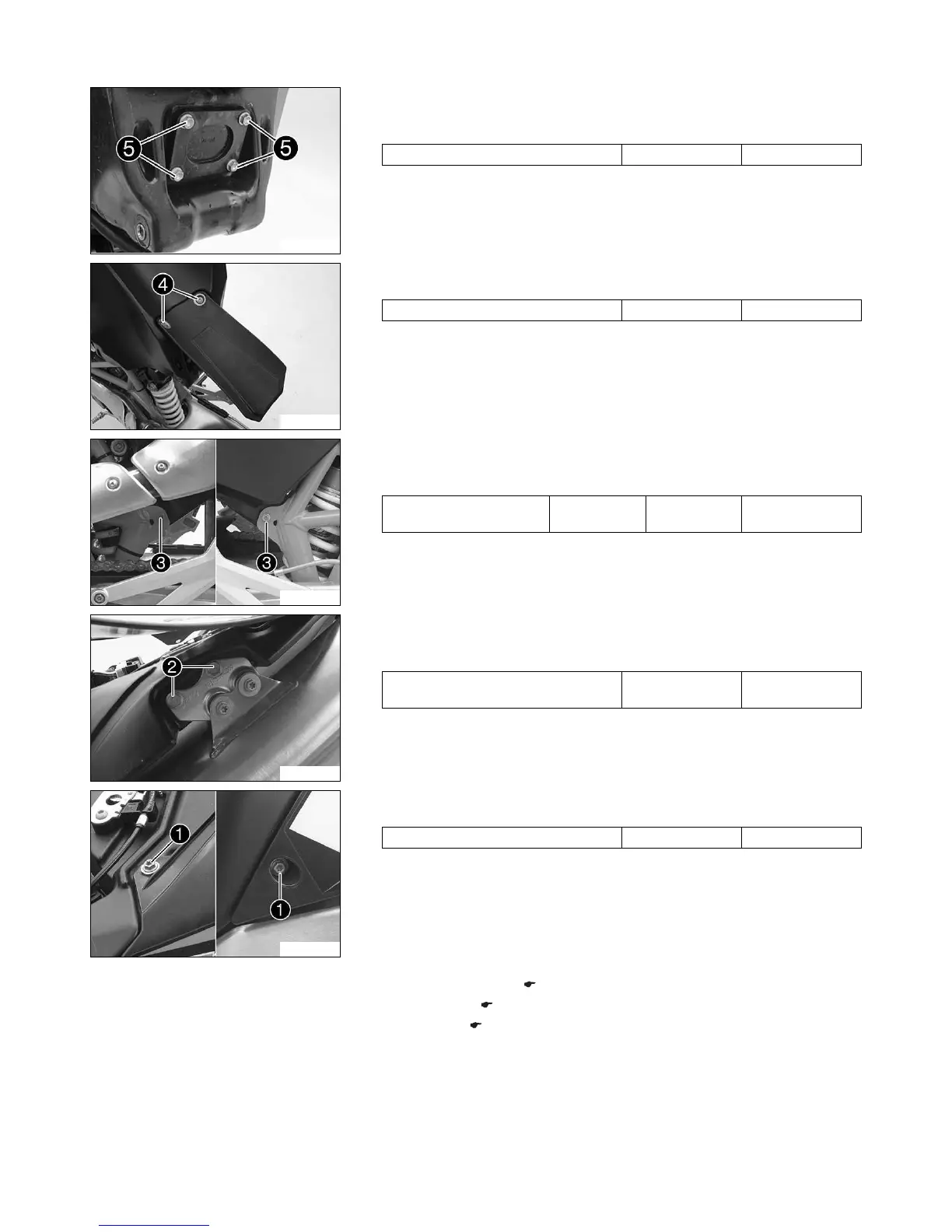

11 FUEL TANK, SEAT, TRIM 64
S00113-10
– Position the fuel pump.
– Mount and tighten screws 5.
Guideline
Screw, fuel pump M5 4 Nm (3 lbf ft)
S00327-10
– Position the splash protector. Mount and tighten screws 4.
Guideline
Remaining screws, chassis M5 4 Nm (3 lbf ft)
S00065-12
– Position the rear end.
– Mount and tighten screw 3 on both sides.
Guideline
Screw, fuel tank, bottom M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
S00064-10
– Lift the rear fairing.
– Mount and tighten screws 2.
Guideline
Screw, main silencer holder on fuel
tank
M8 25 Nm
(18.4 lbf ft)
S00063-10
– Mount and tighten screws 1.
Guideline
Screw, side cover M6 5 Nm (3.7 lbf ft)
Finishing work
– Disconnect the battery. ( p. 80)
– Mount the seat. ( p. 60)
– Set the clock. ( p. 95)
