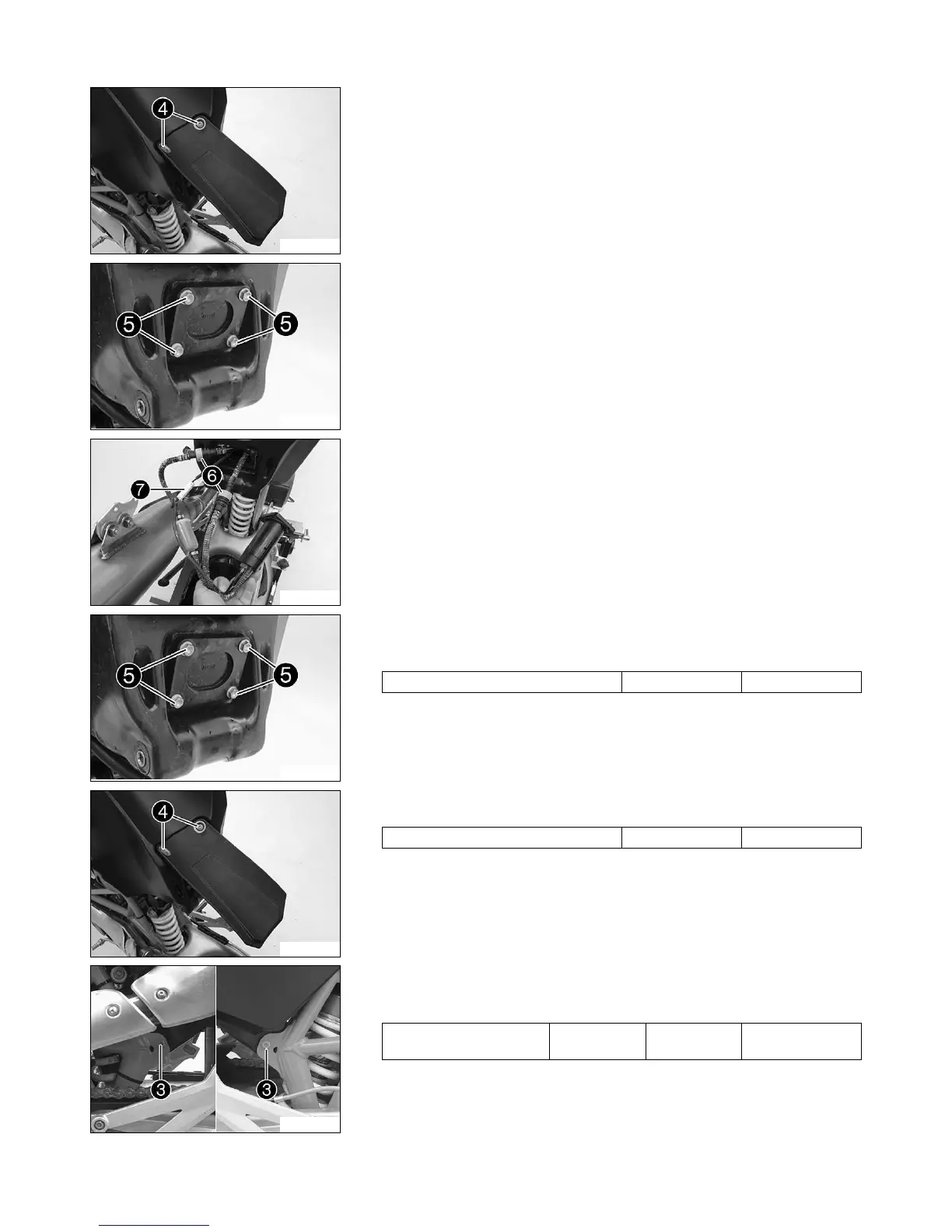

11 FUEL TANK, SEAT, TRIM 66
S00327-10
– Remove screws 4 and the splash protector.
S00113-10
– Remove screws 5.
– Pull out the fuel pump.
S00328-10
– Disconnect both fuel hose connections 6.
– Unplug connector 7. Remove the fuel pump.
– Connect the new fuel pump, attaching both fuel hose connections 6.
– Attach connector 7.
S00113-10
– Position the fuel pump.
– Mount and tighten screws 5.
Guideline
Screw, fuel pump M5 4 Nm (3 lbf ft)
S00327-10
– Position the splash protector. Mount and tighten screws 4.
Guideline
Remaining screws, chassis M5 4 Nm (3 lbf ft)
S00065-12
– Position the rear end.
– Mount and tighten screw 3 on both sides.
Guideline
Screw, fuel tank, bottom M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
