D9 Status bits

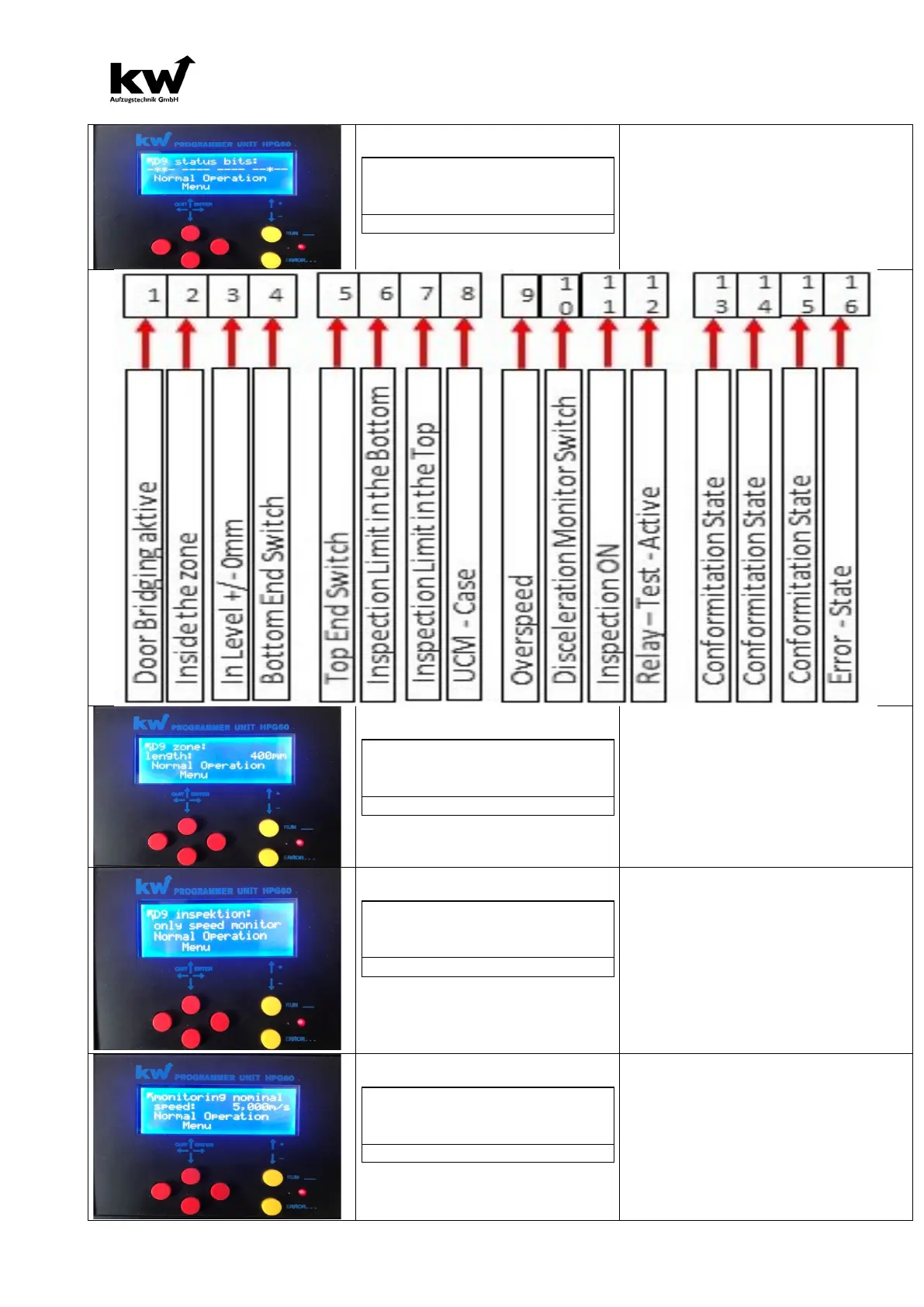

D9 Status bits:
-**- ---- ---- --*-Normal
operation
menu
Display of the internal communication between
the SAFE copy and the D613 controller.
Here, the internal PSU status bits, which are trans-
mitted from the SAFE copy to the controller using
the CANopen-Lift protocol, are displayed.
These are for internal documentation purposes only
and may be required to be sent to our hotline.
D9 ANTSSAFE - zones
D9 zone:
length: 400mm
Normal operation
menu
Display of the door zone length in mm.
Here, the zone length is shown, the
during the configuration in the SAFE
Copying was saved.
D9 ANTSSAFE - Inspection
D9 inspection:
Only speed monitoring
Normal operation
menu
Display of the supervision of the inspec-
tion speed. The following information is
possible:
„
no monitoring ": The inspection monitoring is deac-
tivated
"Only speed monitoring": In inspection mode, the
max. Speed over-wacht (0,6m / s)
"Limit switch up": The function "inspection limit
switch-
up" for the protection room monitoring in the
shaft head is activated
"Limit switch down": The
function "inspection limit
switch-
down" for protection room monitoring in the
shaft pit is activated
"Limit switch up + down": Both guard room monitors
are activated
Monitoring Nominal speed
Monitoring Nominal
speed.:5,000m/s
Normal operation
Menu
Display of the monitored rated speed in m / s.
Here, the speed threshold is displayed in m / s,
which at the
Configuration of the SAFE copy was saved.
