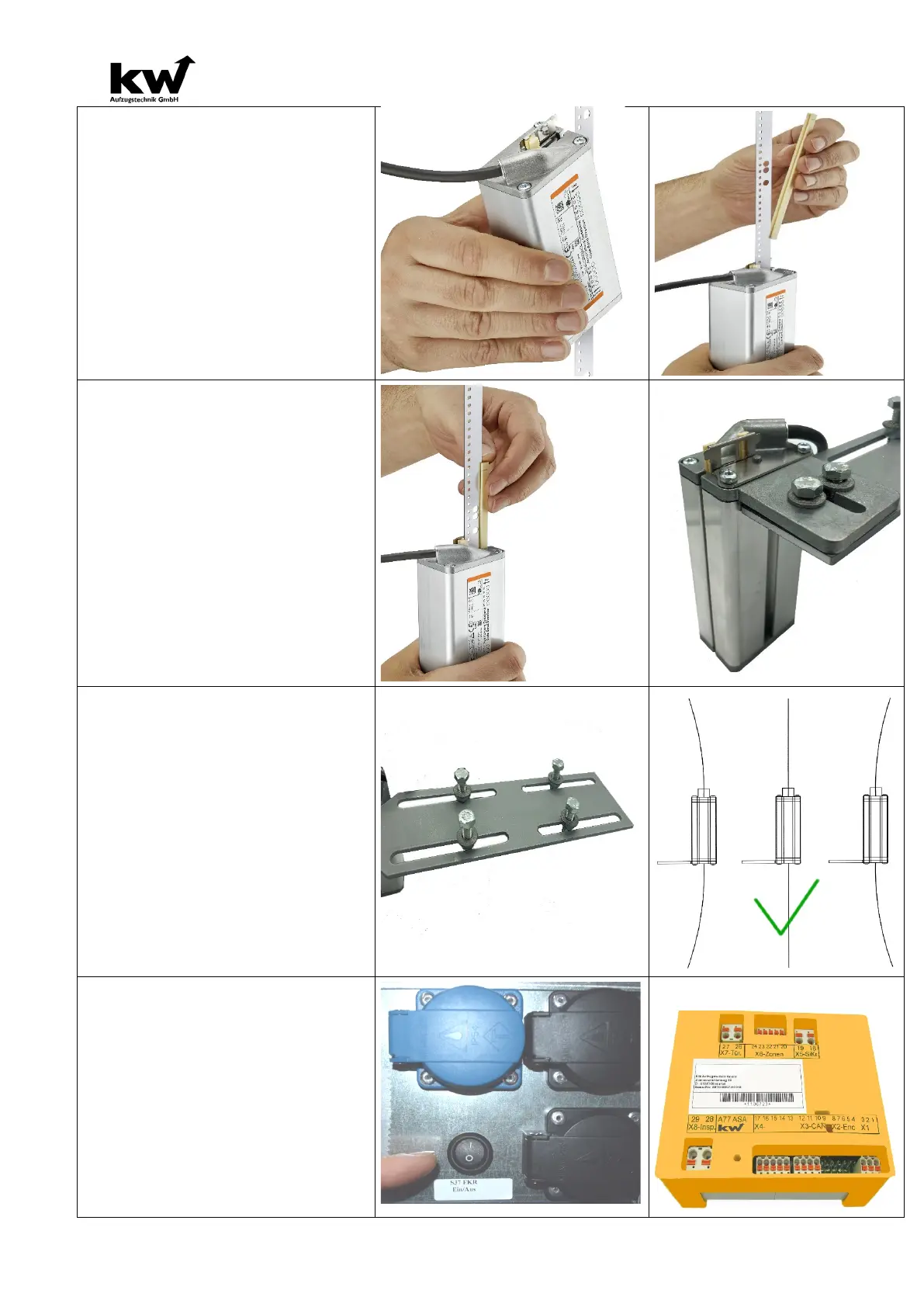

6. Insert the steel band through
the side opening on the reader.
Check the correct alignment of the
holes using the marks on the
reader.
7. Push the sliding jaw through the
opening with the notch intended
for the steel strip.
8
. Insert the aluminum strip from
top to bottom into the slot pro-
vided for this purpose.
9. Please mount the reader 7 on
the holder 6 provided. Up to 3
screws are available.
10. The holder with the reading
head is mounted on the cabin roof
with the 4 screws provided.
11. Check the correct assembly.
The tape should be installed as
vertically and straight as possible.
Deviations and angular misalign-
ments must be corrected. Other-
wise the sliding jaws will be dam-
aged!
12. Switch the car computer off
with the switch S37 FKR at the in-
spection box.
13. The plug of the Kübler LES02
read head can be plugged into the
ASE unit when de-energized.
Subsequently, the switch S37 can
be switched on again.
