KW Aufzugstechnik GmbH OPERATING MANUAL DAVID-613
DAVID-D613-V125-E 13.04.2021 Page - 27 -
U1
Safery-Circuit U1
Indicator Car Position
11A
11A Brakept. Up
U2
Safery-Circuit U2
11B
11B Brakept.Down
U3
Safery-Circuit U3
12A
12A Level Up
U4
Safery-Circuit U4
12B
12B Level Down
U5
Safery-Circuit U5
13B
13A Correction Top
U6
Safery-Circuit U6
13A
13B Correction Bot
U7
Safery-Circuit U7
71
71 Zone 1
U8
Safery-Circuit U8
72
72 Zone 2
U9
Safery-Circuit U9
Pulses
Pulses
U10
Safery-Circuit U10
D1 Open
Door 1 Open
U11
Safery-Circuit U11
Auf
Direction Up
D1 Close
Door 1 Close
U12
Safery-Circuit U12
Ab
Direction Down
D1 Lg
Door 1 Photocell Active
ZR-Run
Run ZR-CPU
V0
Speed V0
D1 Rev
Door 1 Reverse Motion
ZR-Spg
Power-ZR-CPU
V1
Speed V1
D2 Open
Door 2 Open
FKR-Run
Run FKR-CPU
V2
Speed V2
D2 Close
Door 2 Close
FKR-Spg
Power-FKR-CPU
V3
Speed V3
D2 Lg
Door 2 Photocell Active
NSG-Spg
NSG-Under voltage
Vi1
Speed Vi1
D2 Rev
Door 2 Reverse Motion
NSG-Alarm
NSG-Alert
Vi2
Speed Vi1
D3 Open
Door 3 Open
NSG-Lad.
NSG-Accu Loading
Vna
Speed Vna
D3 Close
Door 3 Close
NSG-Akku
NSG-Accu Drive
FS
Error memory
D3 Lg
Door 3 Photocell Active
WLAN HPG
WiFi Operation Active
Fault
Error in drive
D3 Rev
Door 3 Reverse Motion
INSPECT
Inspection Operation
GRP.MS
Groupp Master-Slave
NH
Releveling
RÜCKHOL
Re-Send Operation
MODEM
Modem Operation
EoT
Pre-Open Door

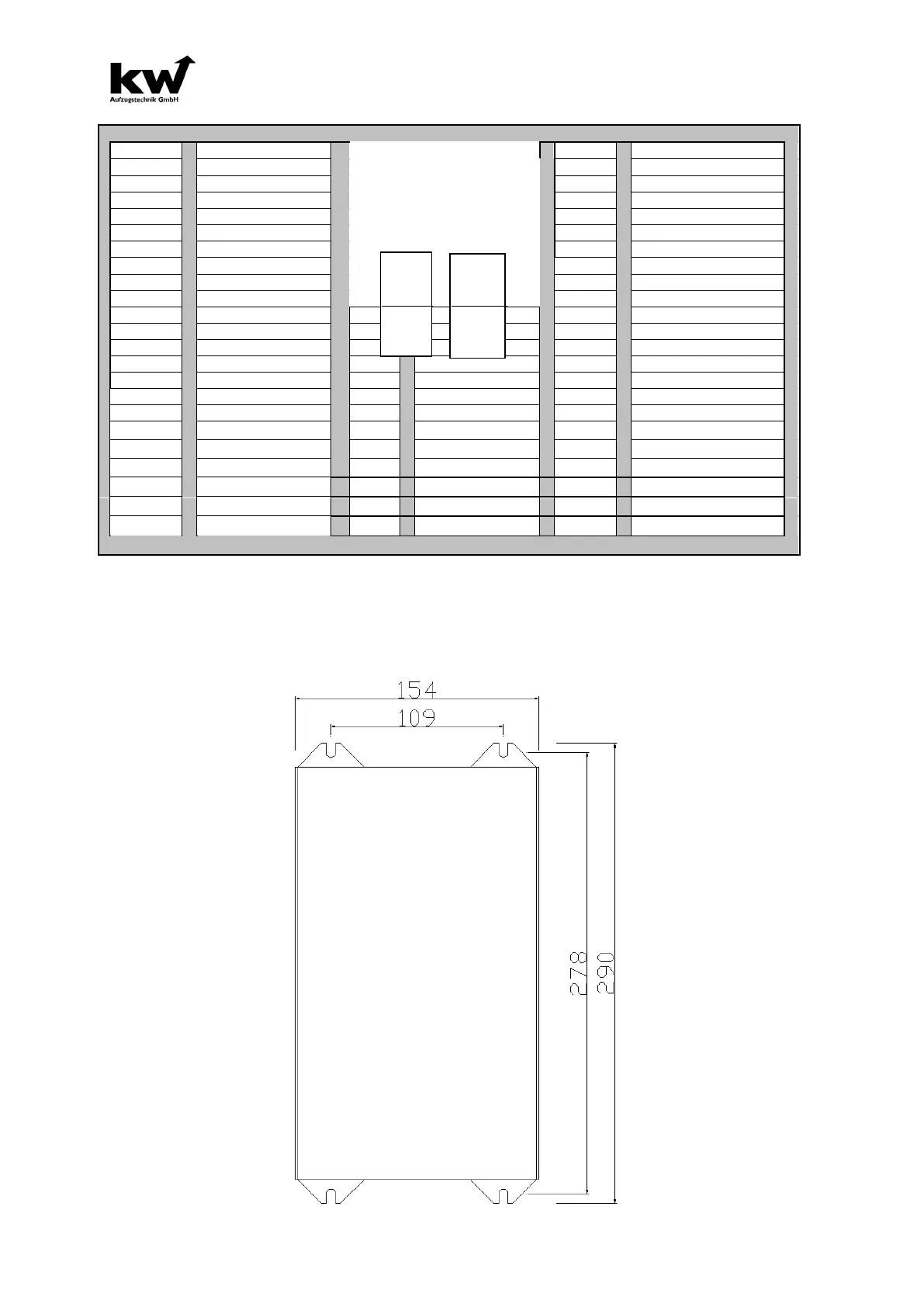

Indicator witg LEDs and Carpostion matrix indicator
Technial Dimensions of the Central-Unit ZR
