KW Aufzugstechnik GmbH OPERATING MANUAL DAVID-613
DAVID-D613-V125-E 13.04.2021 Page - 28 -

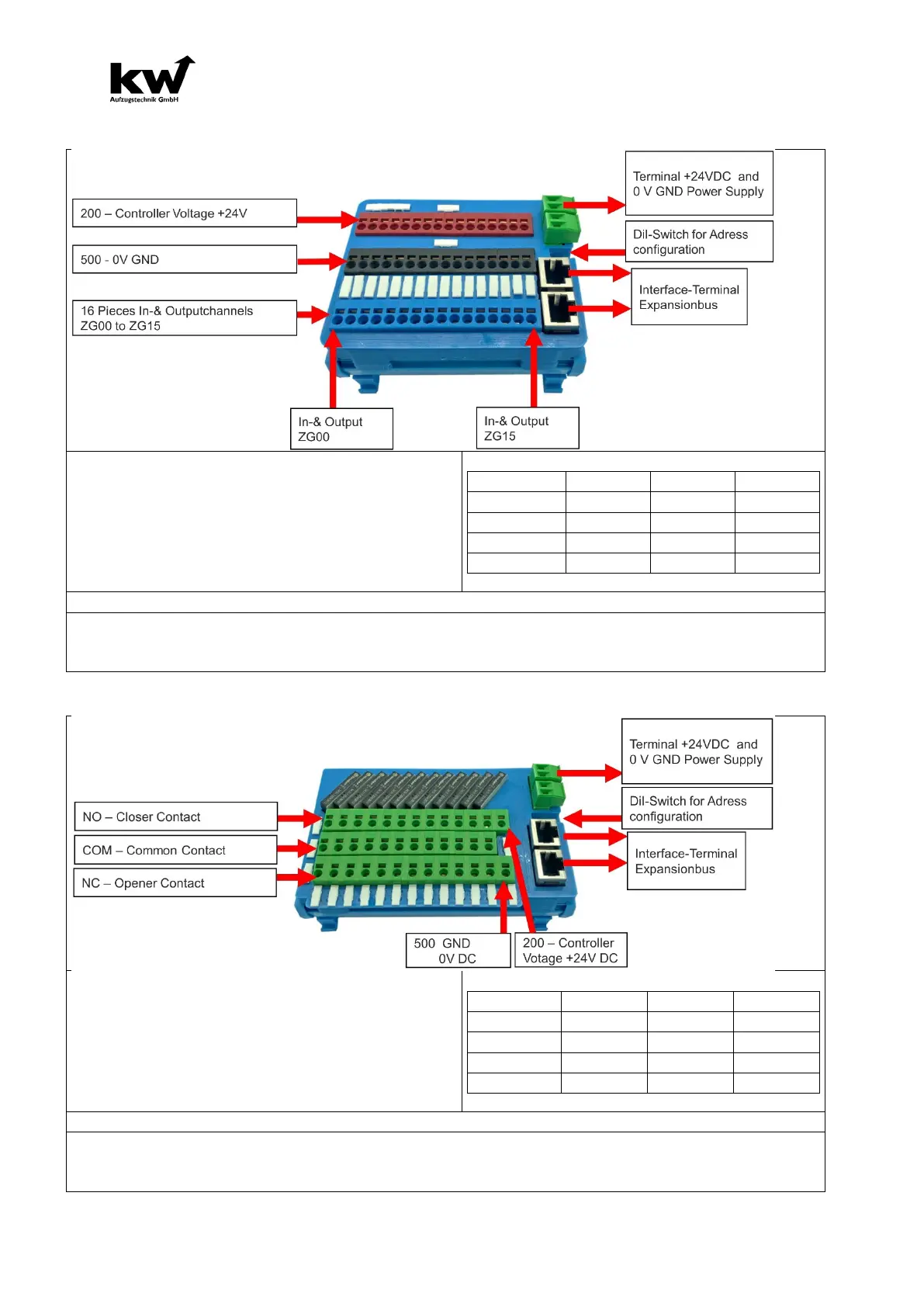

2.3 Device description Expansion group DAVID-ZG-16
The additional group ZG-16 offers 16 additional inputs
and outputs. The ZG-
32 is connected with a bus cable
RJ45, the power supply (200 and 500) to the central unit
ZR.
The input and output assignment is freely selectable. Up
to 4 ZG16 auxiliary groups can be operated in a D613
control system.
Address setting additional group:
DIPP-0
DIPP-1
DIPP-3
1. ZG16
OFF
OFF
2. ZG16
ON
OFF
3. ZG16
OFF
ON
4. ZG16
ON
ON
KW-Nr. 1100059
For the last ZG-16 assembly in the chain, the Dipp-4 switch is set to ON to terminate the line.
Activation takes place:
1.) By plugging in the module on the ZR computer Expansion bus Green
2.) By activating the I / Os in the B7 menu:
2.4 Device description Relaygroup DAVID-RG-12
The relay group RG-12 offers 12 additional relay
outputs. The RG-
12 is connected with a bus cable
RJ45, the power supply (200 and 500) at the central
unit ZR.
The output
assignment is freely selectable. Up to 4
RG12 relay groups can be operated in a D613 con-
trol system.
Address setting additional group:
DIPP-0
DIPP-1
DIPP-3
1.RG12
OFF
OFF
2.RG12
ON
OFF
3.RG12
OFF
ON
KW-Nr. 1100059
For the last RG-12 assembly in the chain, the Dipp-4 switch is set to ON to terminate the line.
Activation takes place:
1.) By plugging in the module on the ZR computer Expansion bus Green
2.) By activating the I / Os in the B7 menu:
