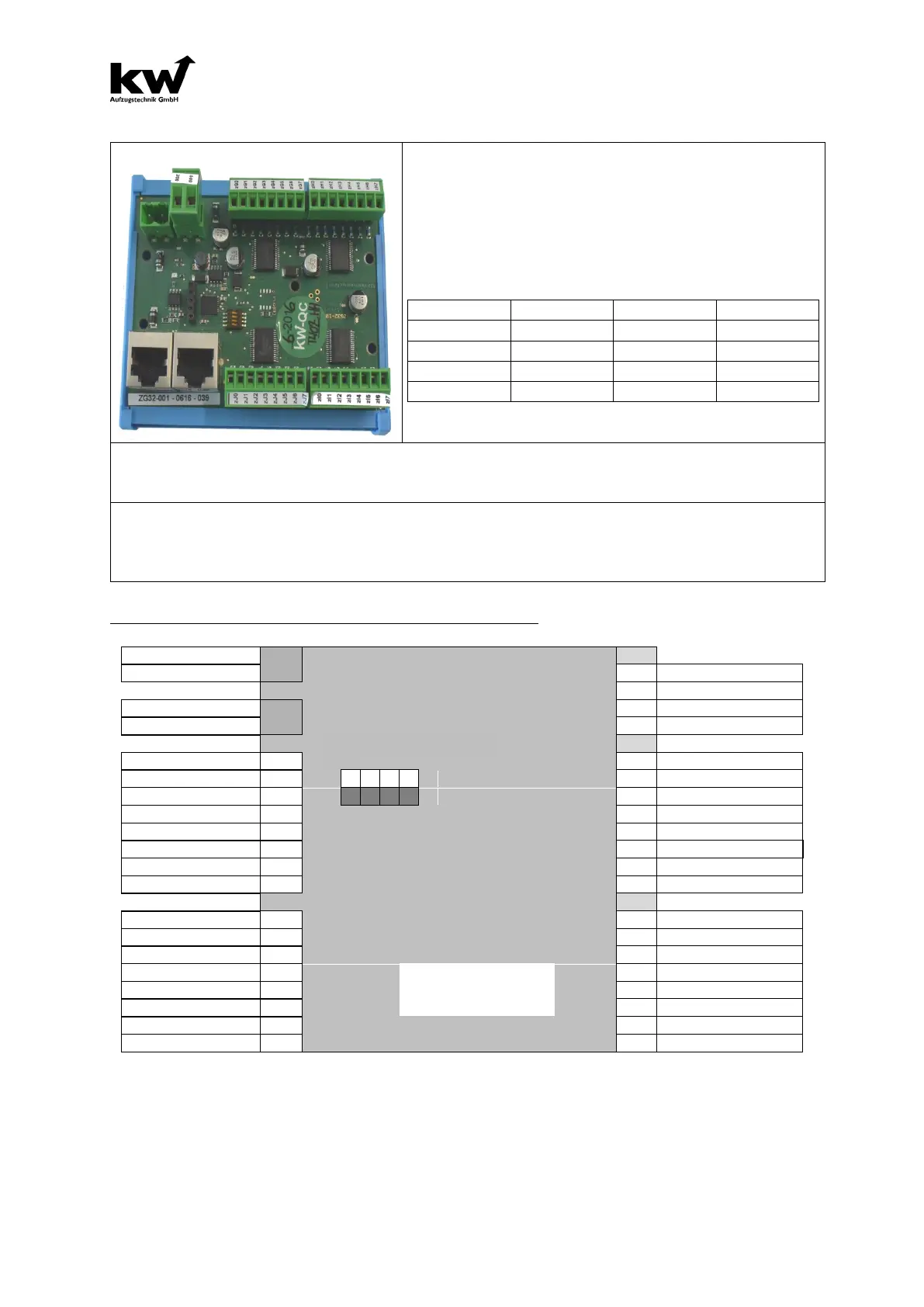

2.5 DESCRIPTION EXPANSION DEVICE DAVID-ZG-32
The expansion unit ZG-32 offers 32 additional inputs
and outputs. The ZG-
32 is connected to a bus cable
RJ45, the voltage supply (200 and 500) at the central
unit ZR.
The input and output assignment is freely selectable.
Up to 4 additional groups of type ZG32 can be operate
in a control system D613.
Adress-switching of the Expansion Unit:
KW-Nr. 1100059
On the last ZG32 module in the chain, the Dipp-4 switch is set to ON and serves as
Activation takes place:
1.) Insert the module on the ZR computer
2.) By activating the I /O’s in the B7 menu:
Terminal -Description Expansion Unit DAVID-ZG-32
