KW Aufzugstechnik GmbH OPERATING MANUAL DAVID-613
DAVID-D613-V125-E 13.04.2021 Page - 31 -

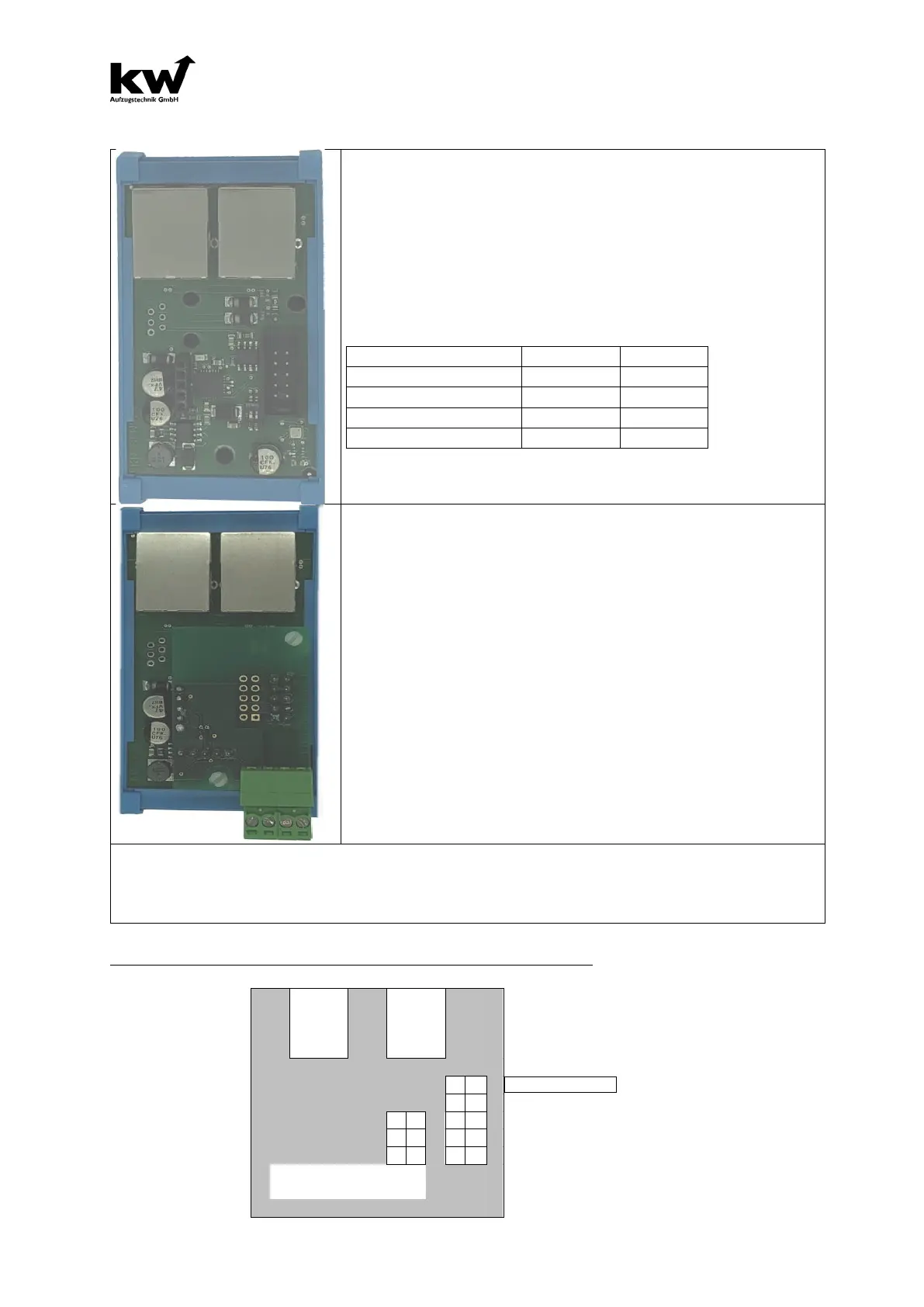

2.7 Device description Environmental module SENSOR-102 for elevator car and
shaft
The environmental module SENSOR-102 provides the current
values for temperature, humidity and air pressure. The environ-
mental module is connected to the car with a 10-pin ribbon ca-
ble on the FKR613 car computer.
En
vironmental modules can also be used at various points (pit
/ head / engine room) for the lift shaft. Up to 4 environmental
modules can be operated on the expansion bus in a D613 con-
trol system.
Address setting of the environmental module in the shaft:
DIPP-0
DIPP-1
1. SENSOR-102
OFF
OFF
2. SENSOR-102
ON
OFF
3. SENSOR-102
OFF
ON
4. SENSOR-102
ON
ON
KW-Nr. 1100060
The SENSOR-102 module can be equipped with a Huckpack
conductor plate, which has two PTC inputs that allow tempera-
ture measurement.
Thus, the outside temperature of motor housings can be
grasped.
Activation takes place:
1.) By plugging in the 10 pin ribbon connection of the module at the FKR computer resp
2.) By plugging the RJ-45 cable into the expansion bus.
Terminal Description Environmental module SENSOR-102
RJ45
RJ45
RJ45 Expansionbus
10P Flatwire to FKR
DIPP-
ON
ON
1
2
SENSOR-102
Environmental
