8. A.C. GENERATOR
8-3
MX’er 50
A.C. GENERATOR REMOVAL

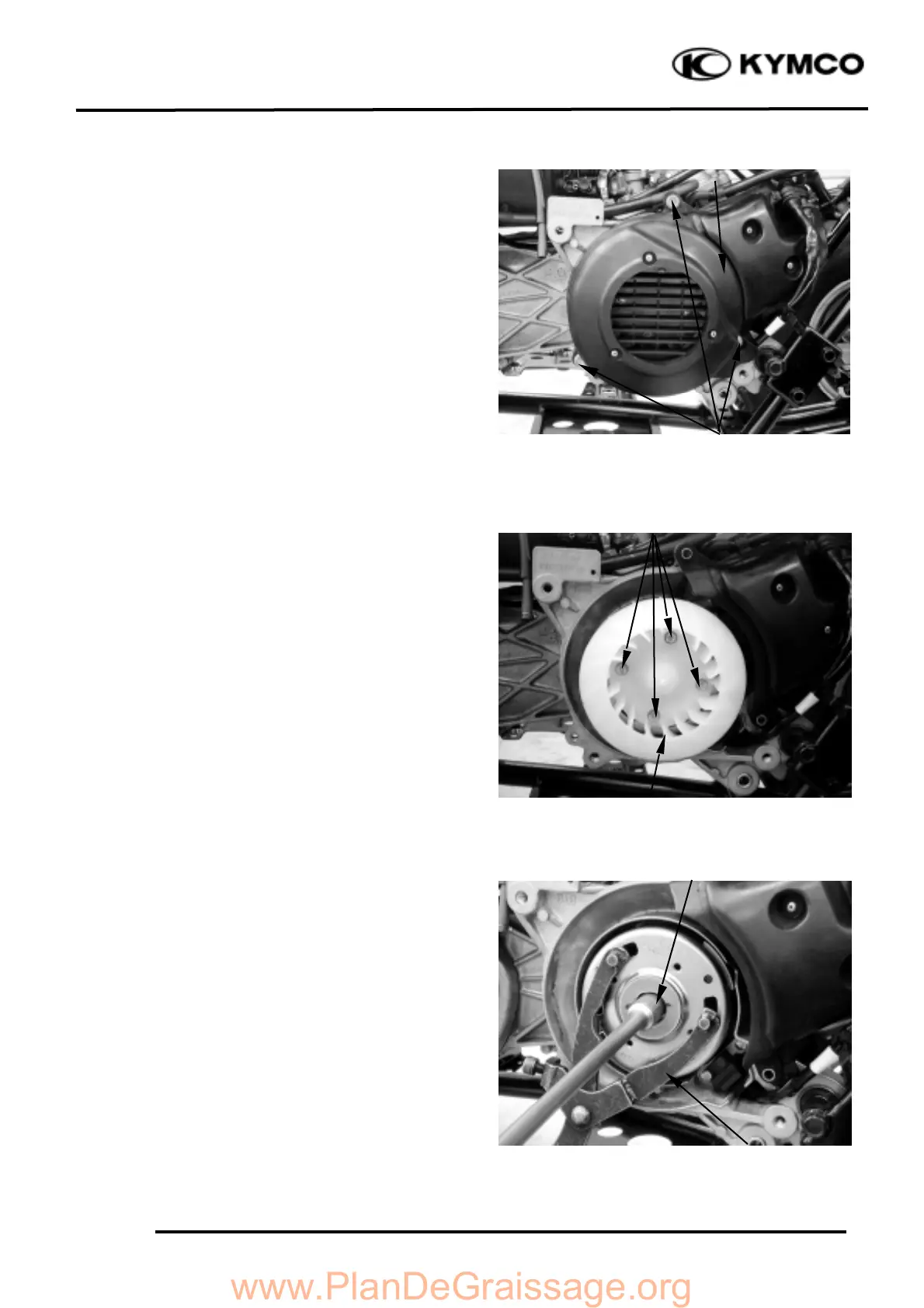

Remove the three bolts attaching the fan
cover to remove the fan cover.
Remove the cooling fan by removing the
four bolts.
Hold the flywheel with an universal holder
and then remove the flywheel nut.
Fan Cover
Bolts
Bolt
Nut
Universal Holder
Cooling Fan
