KYMCO MX'ER 50 - Steering System

12. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM
12-13
MX’er 50
STEERING SYSTEM
REMOVAL
Remove the following parts:
Seat, Front cover, Center cover and Front
fender
Refer to the “FENDERS” section in the
CHAPTER 2

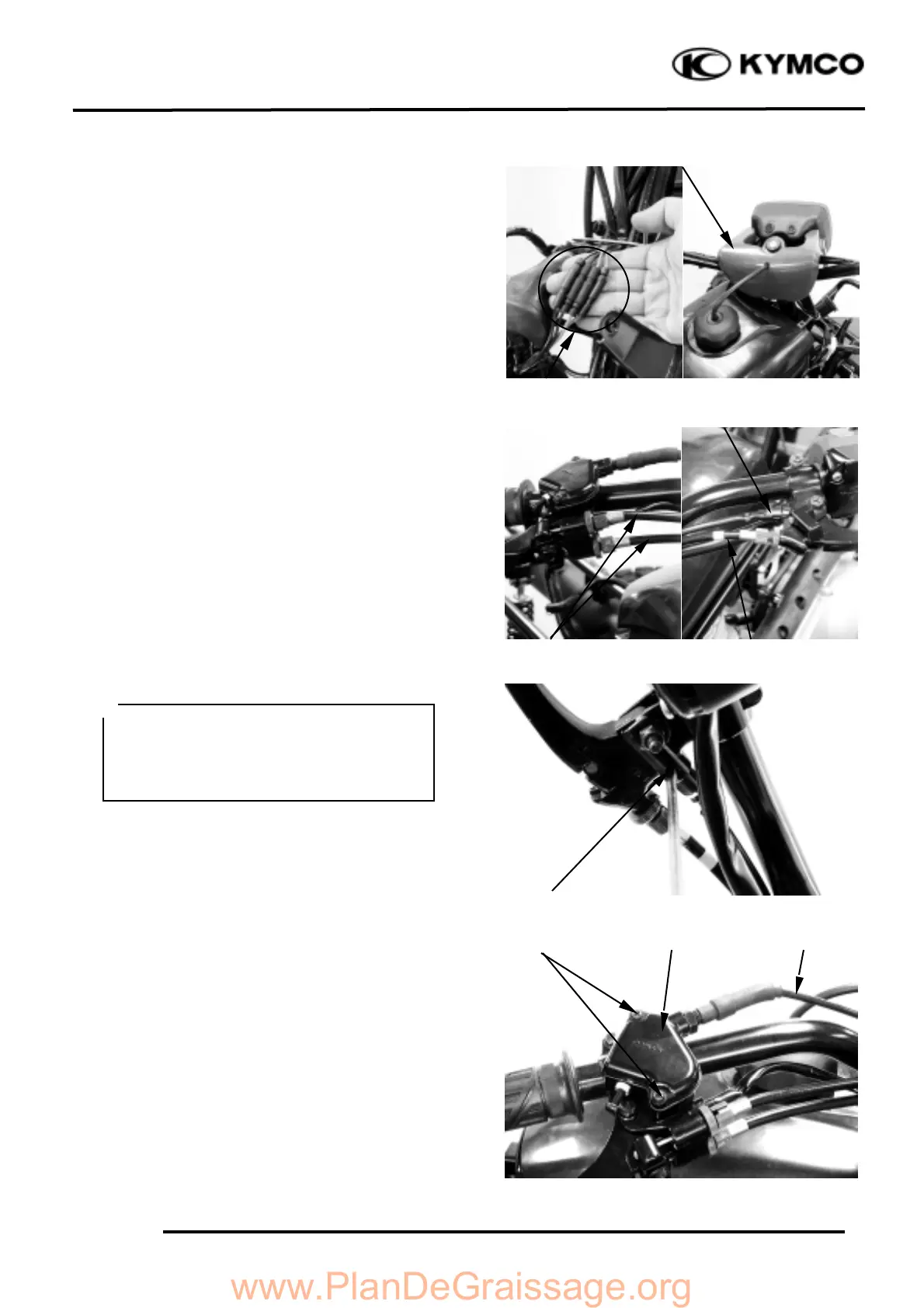

Disconnect the main switch lead.
Remove the handlebar cover with main
switch.
Disconnect the front brake cables from the
brake lever, rear brake cable from the brake
lever and brake switch from the bracket of the
brake lever.
Remove the two screws to remove the cover
of the throttle housing.
Disconnect the throttle cable from the lever.
Brake Switch
Hook
Front Brake Cables
Handlebar Cover
Main Switch Lead
Rear Brake Cable
Disconnect the brake switch from the
bracket of the brake lever while pushing
the hook of the brake switch with a
driver.
°Ø
Screws
Cover
Throttle Housing
