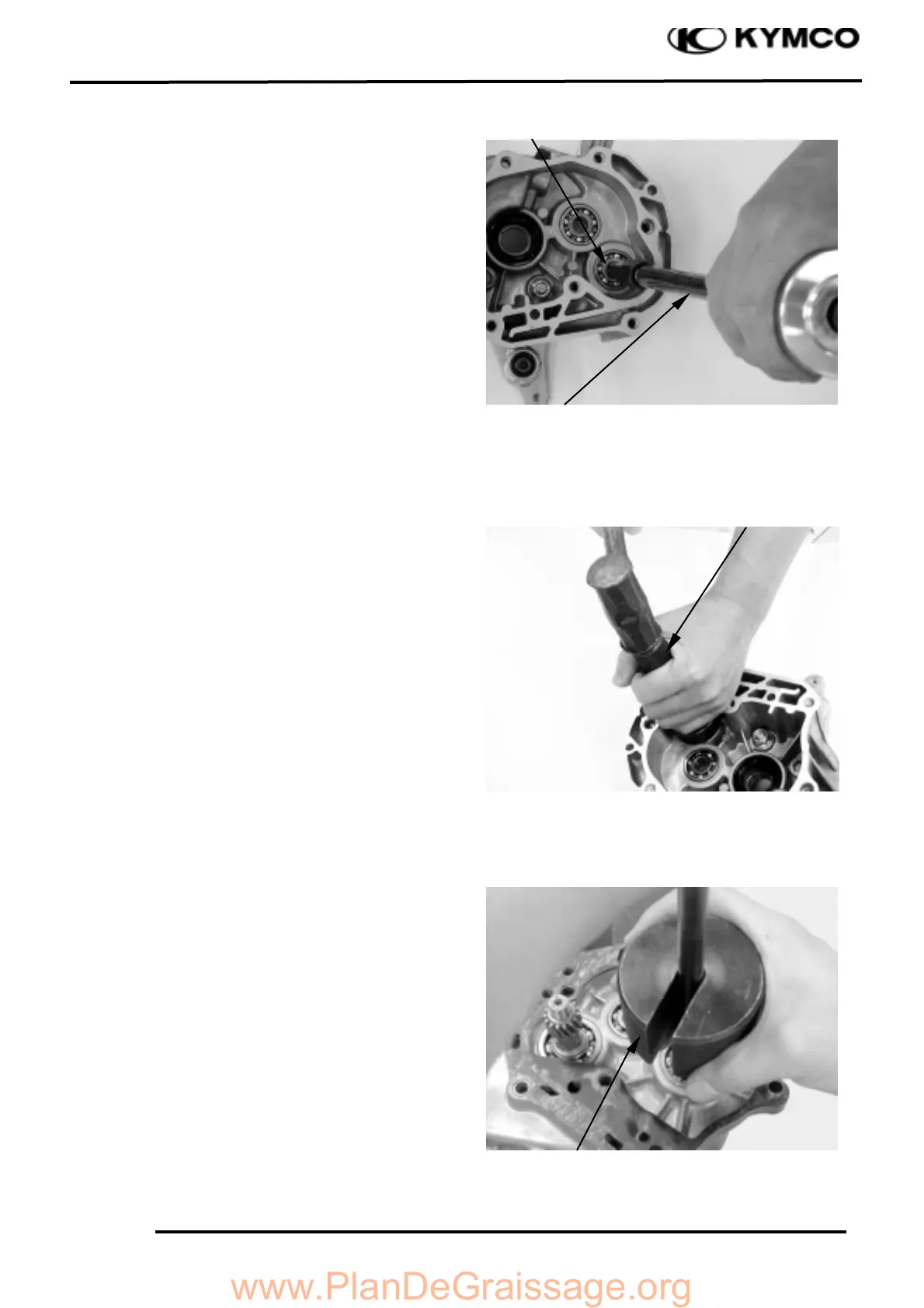

BEARING REPLACEMENT
(Transmission Case Cover)
Remove the transmission case cover bearings
using the bearing remover.
Remove the final shaft oil seal.
Drive new bearings into the transmission case
cover.
BEARING REPLACEMENT (Left
Crankcase Cover)
Remove the drive shaft.
Remove the drive shaft oil seal.
Remove the left crankcase bearings using the
bearing remover.
Drive Shaft Bearing
Bearing Remover Set
Bearing Remover Set, 15mm
Bearing Outer Driver Handle
