4. LUBRICATION SYSTEM
4-6
MX’er 50
Pump Cover
Dowel Pin

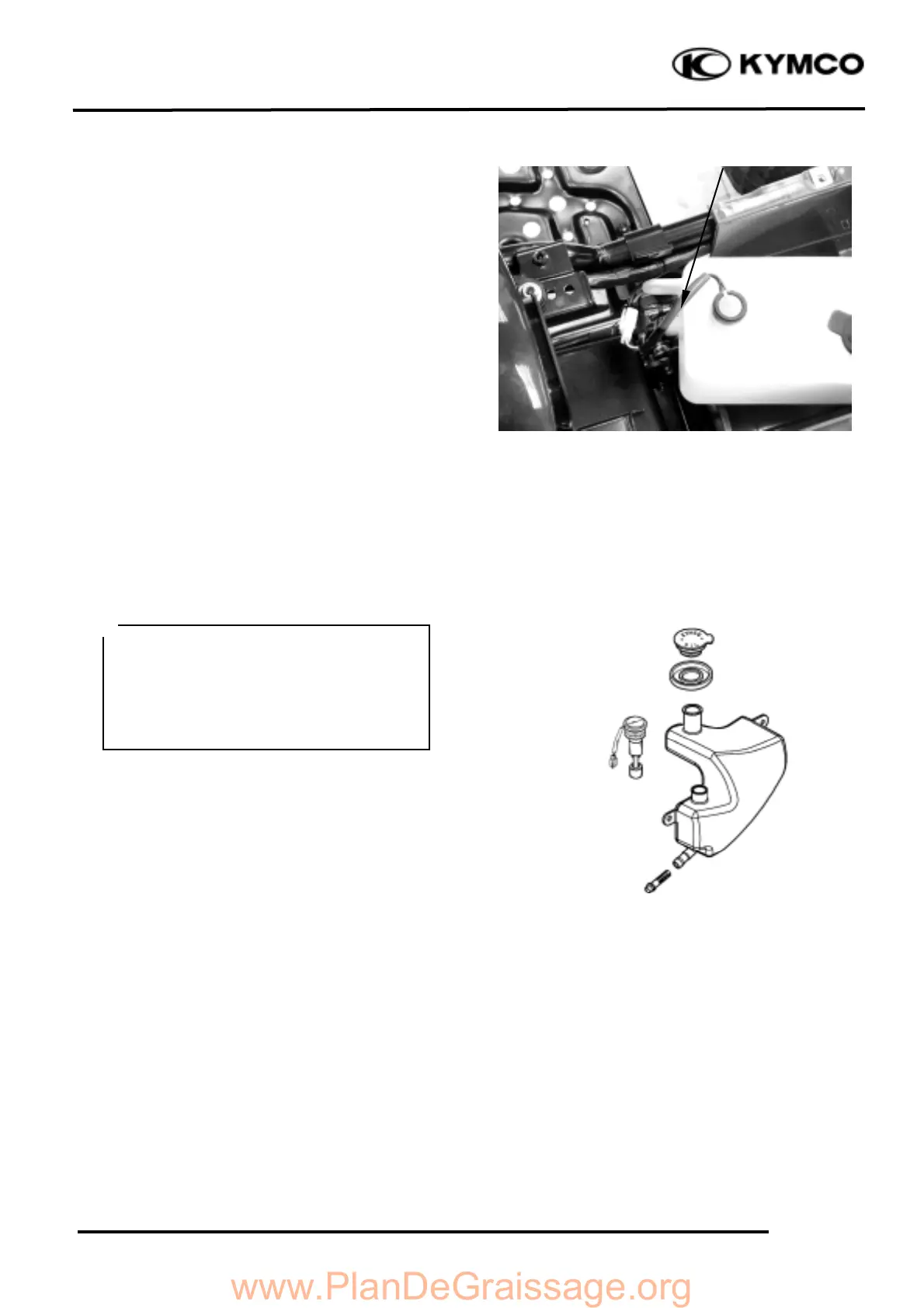

OIL TANK
OIL TANK REMOVAL
Remove the seat. (
!
2-3)
Remove the oil meter connector.
Remove the two bolts attaching the oil tank.
Disconnect the oil inlet line.
Drain the oil inside the oil tank into a clean
container.
Remove the oil tank.
The installation sequence is the reverse of
removal.
• Connect the oil line properly.
• Bleed air from the oil pump after
installation.
• The oil tube clip (at the oil tank side)
must be locked from inside of the oil
tube joint.
°Ø
Wire Connector
