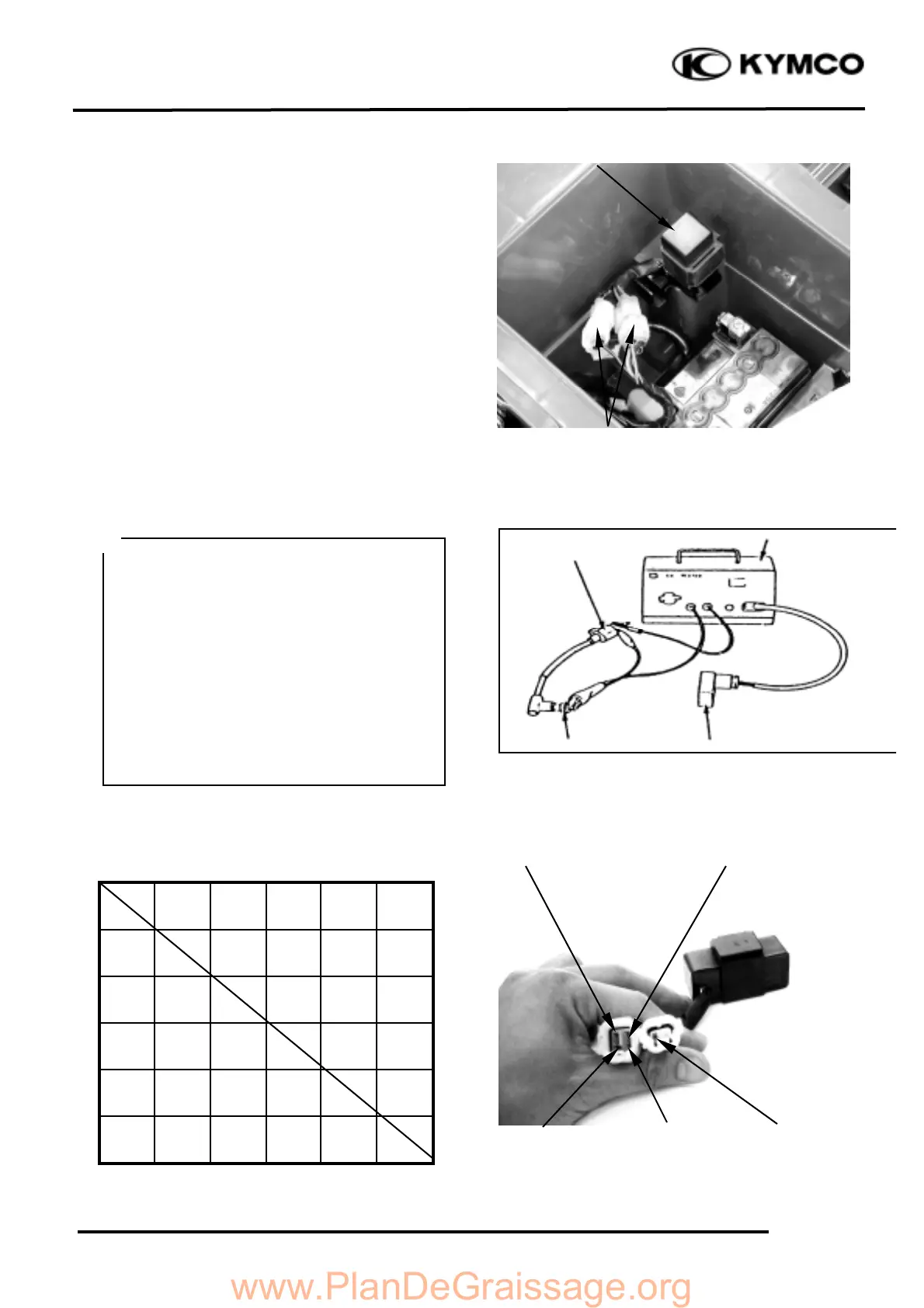

CDI UNIT INSPECTION
Remove the seat and battery cover.
Disconnect the CDI coupler and remove the
CDI unit.
CDI CIRCUIT INSPECTION
Measure the resistance between the
terminals.
Replace the CDI unit if the readings are not
within the specifications in the table below.
Use the x KW range for the Sanwa Tester.
Use the x 100W range for the Kowa Tester.
Unit: KW
• Due to the semiconductor in circuit, it is
necessary to use a specified tester for
accurate testing. Use of an improper
tester in an improper range may give
false readings.
• Use a Sanwa Electric Tester or Kowa
Electric Tester (TH-5H).
• In this table, “Needle swings then
returns” indicates that there is a charging
current applied to a condenser. The needle
will then remain at “°¤ ” unless the
condenser is discharged.
