5. FUEL SYSTEM
5-8
MX’er 50

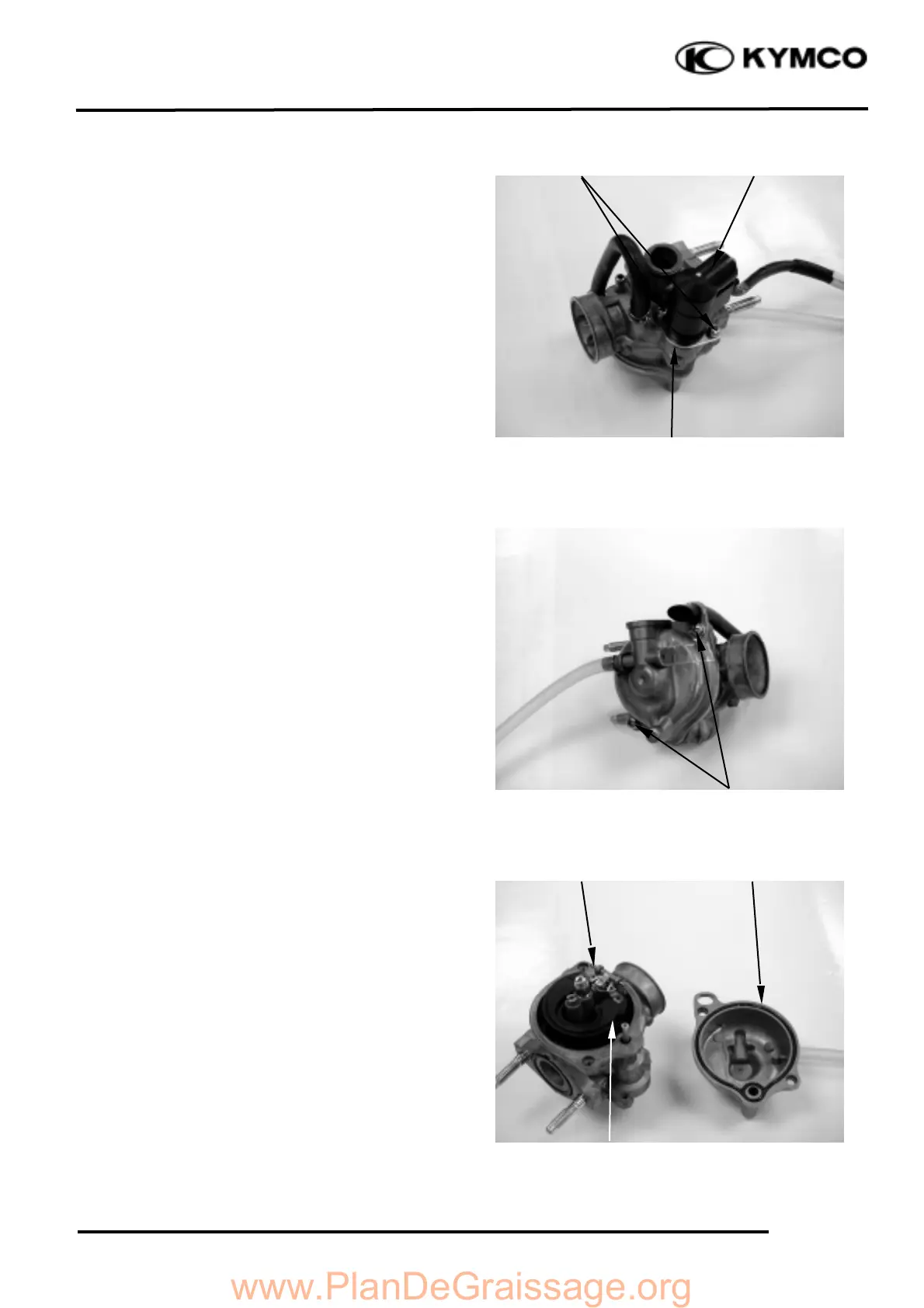

AUTO BYSTARTER INSTALLATION
Install the auto bystarter into the carburetor
body until it bottoms..
Install the set plate and then tighten the two
screws.
FLOAT/FLOAT VALVE/JETS
FLOAT CHAMBER
Remove the two float chamber screws and
the float chamber.
Remove the screw and O-ring.
Remove the float pin, float and float valve.
Auto Bystarter
Float
O-ring
Set Plate
Float Pin
Screws
Screws
