5. FUEL SYSTEM
5-14
MX’er 50
FUEL TANK

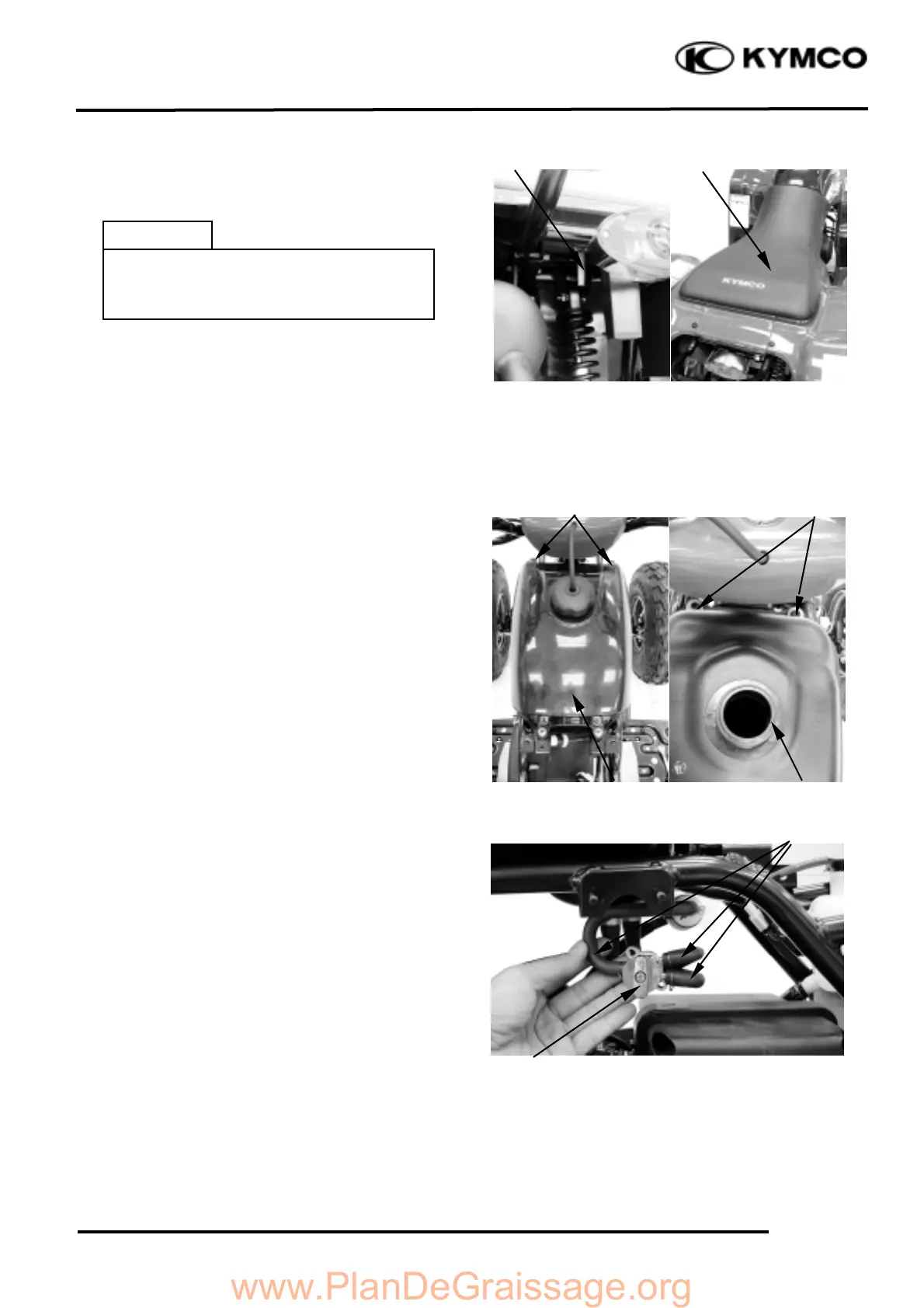

FUEL TANK REMOVAL
Remove the seat.
Remove the center cover.
Remove the right and left front fender.
Remove two bolts on the end of the fuel
tank.
Switch the fuel valve “OFF”.
Disconnect the fuel tubes.
Remove the fuel tank and fuel valve.
Bolts
Fuel Tank
Screws
Seat
Lever
Center Cover
• Keep sparks and flames away from the
work area.
• Wipe off any spilled gasoline.
Warning
Fuel Tubes
Fuel Valve
