KYMCO MX'ER 50 - Ignition Switch; Stop Switch;Oil Meter

17. LIGHTS/ SWITCHES
17-5
MX’er 50

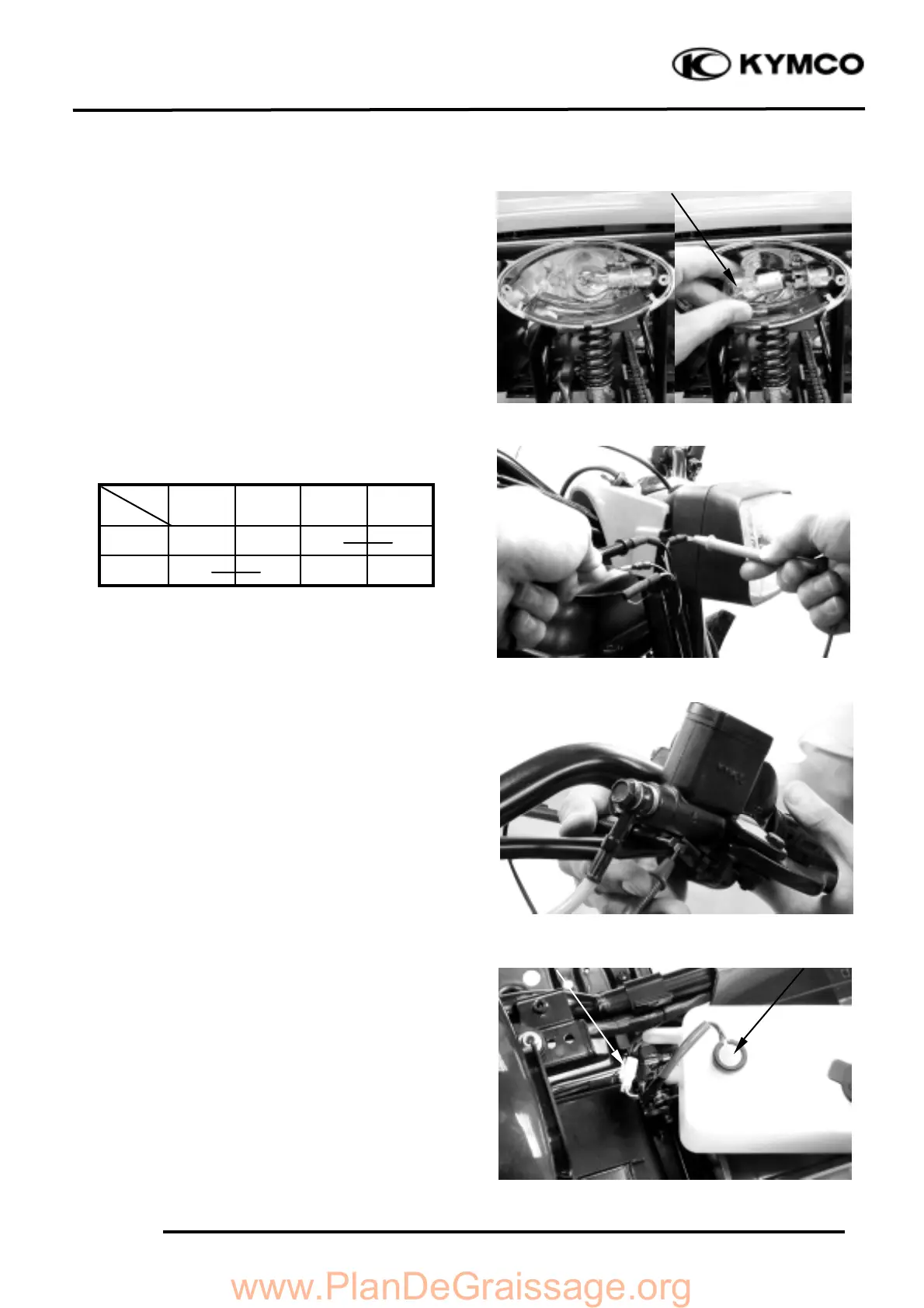

Remove the bulb and check the bulb for
damage. Replace with a new one if
necessary.
IGNITION SWITCH
Check for continuity between the wires
indicated below.
Color
Position
Black
Red
Black/
White
Green
OFF
°≥
°≥
ON
°≥
°≥
STOP SWITCH
Disconnect the front stop switch wire
coupler.
Check for continuity between the front stop
switch wires.
Brake lever applied: There is continuity.
Brake lever released: There is no continuity.
OIL METER
Remove the seat. (
!
2-3)
Disconnect the oil meter wire connectors
and remove the oil meter. Keep the oil
meter float at the lower position (the oil
meter is ON).
Measure the resistances between the wire
terminals as Å and Ç shown in the left
figure.
Bulb
B
Oil Meter Wire
Oil Meter
