KYMCO MX'ER 50 - Front Brake

12. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM
12-7
MX’er 50

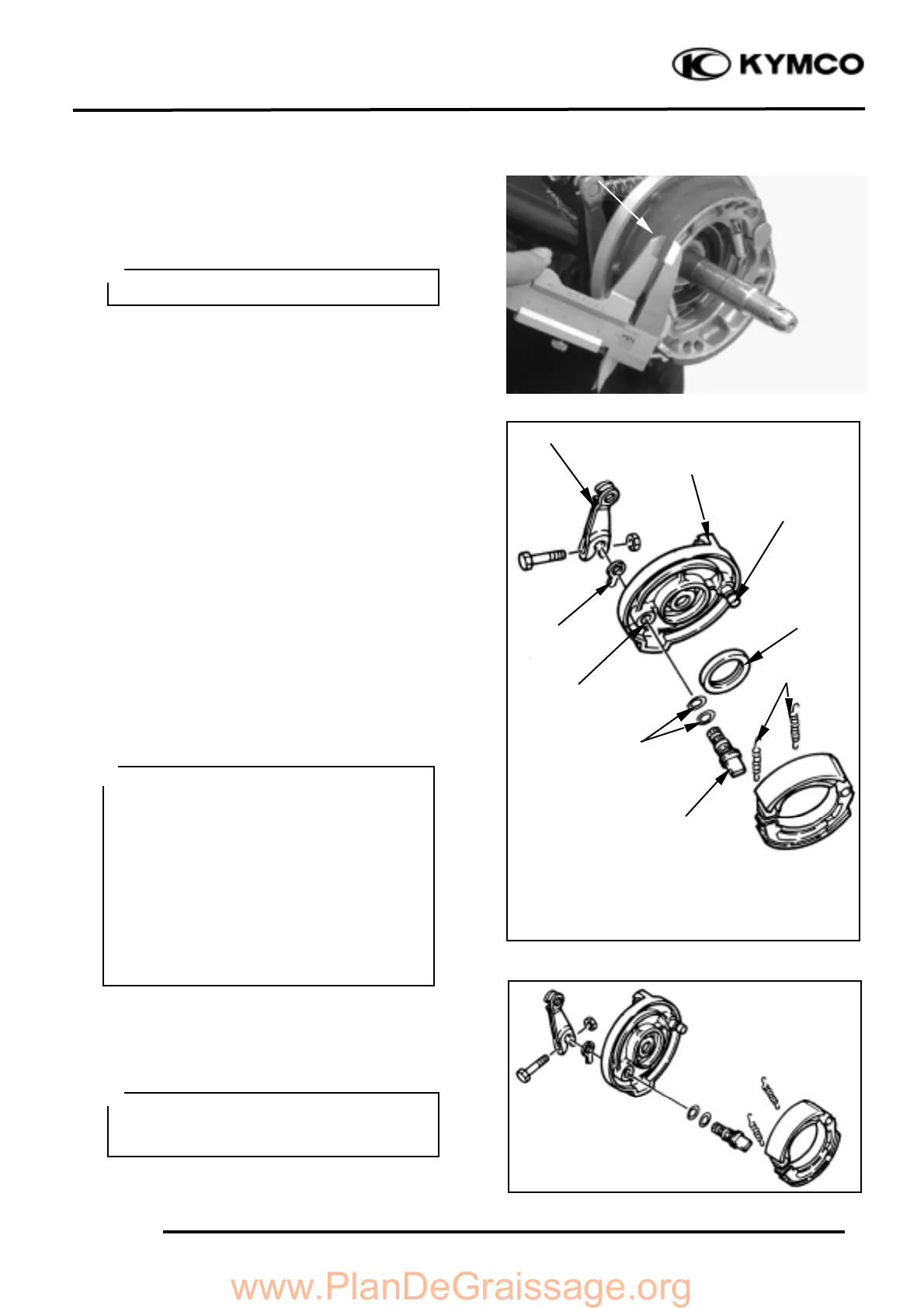

FRONT BRAKE
FRONT BRAKE LINING INSPECTION
Measure the front brake lining thickness.
Service limit: 2.0mm replace if below
REMOVAL
Inspect the shoe springs, O-rings, camshaft
lever and wear indicator.
Replace if damage.
Inspect the brake shoe plate.
Replace if cracks or damage.
Inspect the brake shoe pivot pin.
Replace if wear or damage.
Inspect the camshaft hole and camshaft.
Replace if scratches or excessive wear.
INSTALLATION
Reverse the “REMOVAL” procedures.
Tighten the bolt for camshaft lever.
Torque: 1.8_ 2.5kgf-m
Brake Lining
Apply the grease onto the o-ring, oil seal
lips, pivot pin of brake shoe and
camshaft.
°Ø
• Install the camshaft to the brake
shoe plate with the slot of the camshaft
placing at bass line of the wear indicator
scale.
• Align the projection with the slot
of the camshaft when installing the
wear indicator to the camshaft.
• Align the cut-out of the camshaft
lever with the slot of the camshaft
when installing the camshaft lever to
the camshaft.
°Ø
Camshaft lever
Wear
Indicator
Brake Plate
O-rings
Springs
Oil Seal
Camshaft Hole
Brake shoe pivot pin
Camshaft
Keep oil or grease off the brake linings.
°Ø
