ENGINE REMOVAL

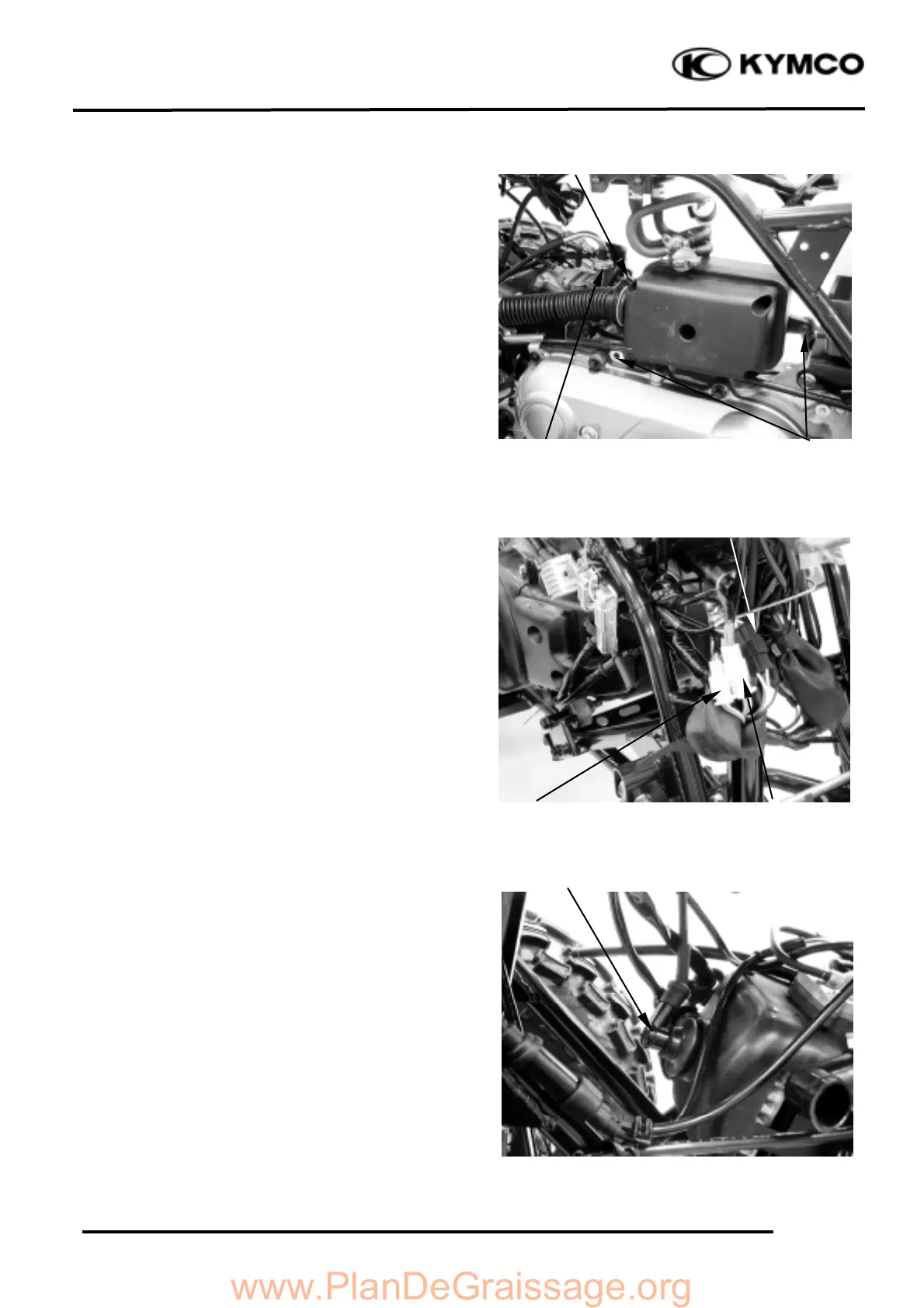

Remove the two bolts attaching the air
cleaner case.
Loosen the band between the air cleaner and
carburetor to remove the air cleaner case.
Remove the carburetor cap.
Disconnect the auto bystarter, A.C.
generator and starter motor wire connectors.
Remove the spark plug cap.
Bolts
Band
Starter Motor
Wire Connector
A.C.Generator Wire Connector
Carburetor Cap
Auto Bystarter
Wire Connector
