2. FRAME COVERS/EXHAUST MUFFLER
2-5
MX’er 50

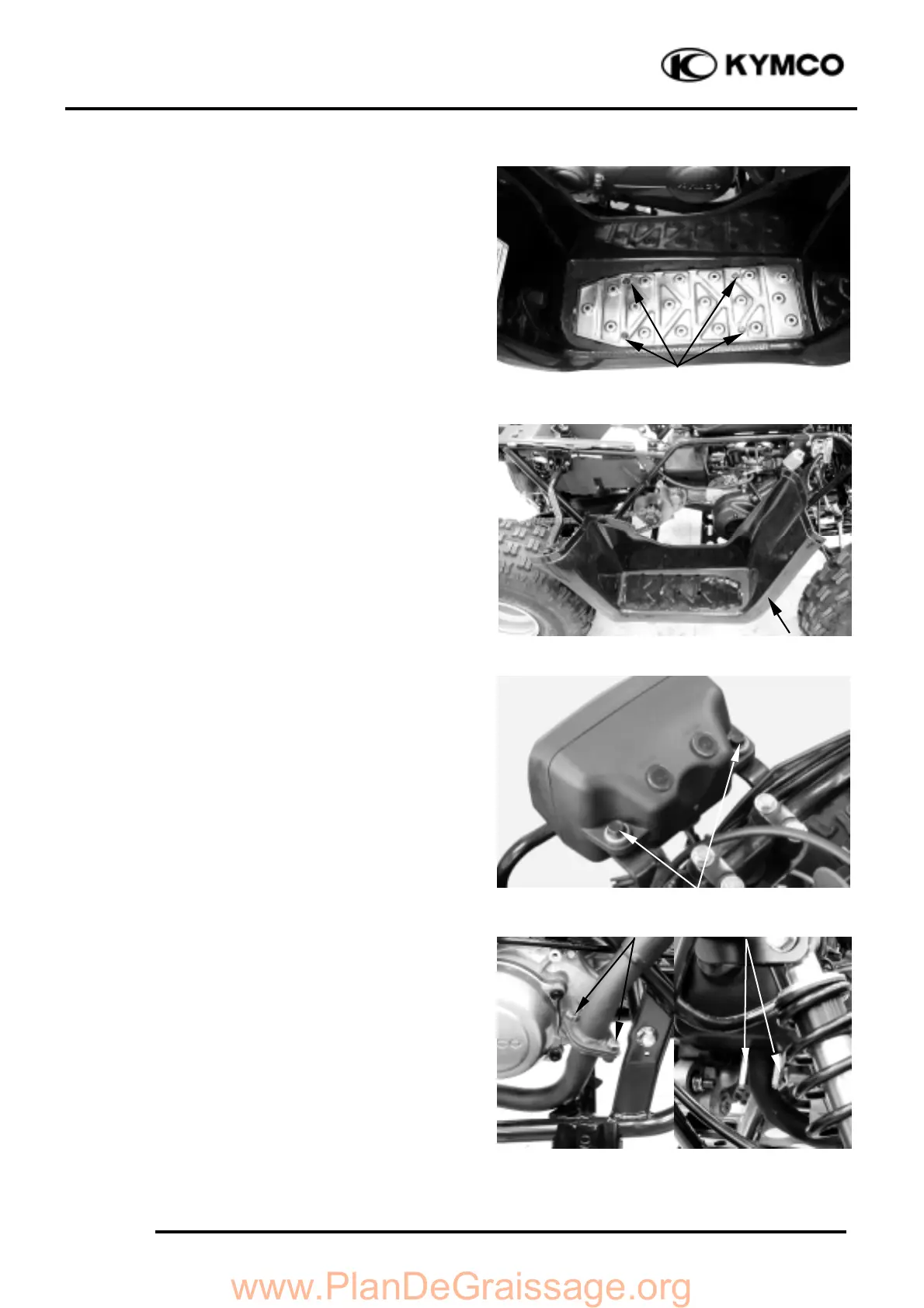

FLOOR BOARD COVER REMOVAL
Remove the four bolts on the floorboard
cover.
Remove the floorboard cover.
HEADLIGHT REMOVAL
Remove the headlight connector wire.
Remove the two bolts on the headlight.
EXHAUST MUFFLER
REMOVAL
Remove the two nuts attaching the exhaust
muffler.
Remove the two nuts attaching the exhaust
pipe.
Bolts
Bolts
Floor Board
Nuts
Nuts
