10. FINAL REDUCTION
10-3
MX’er 50

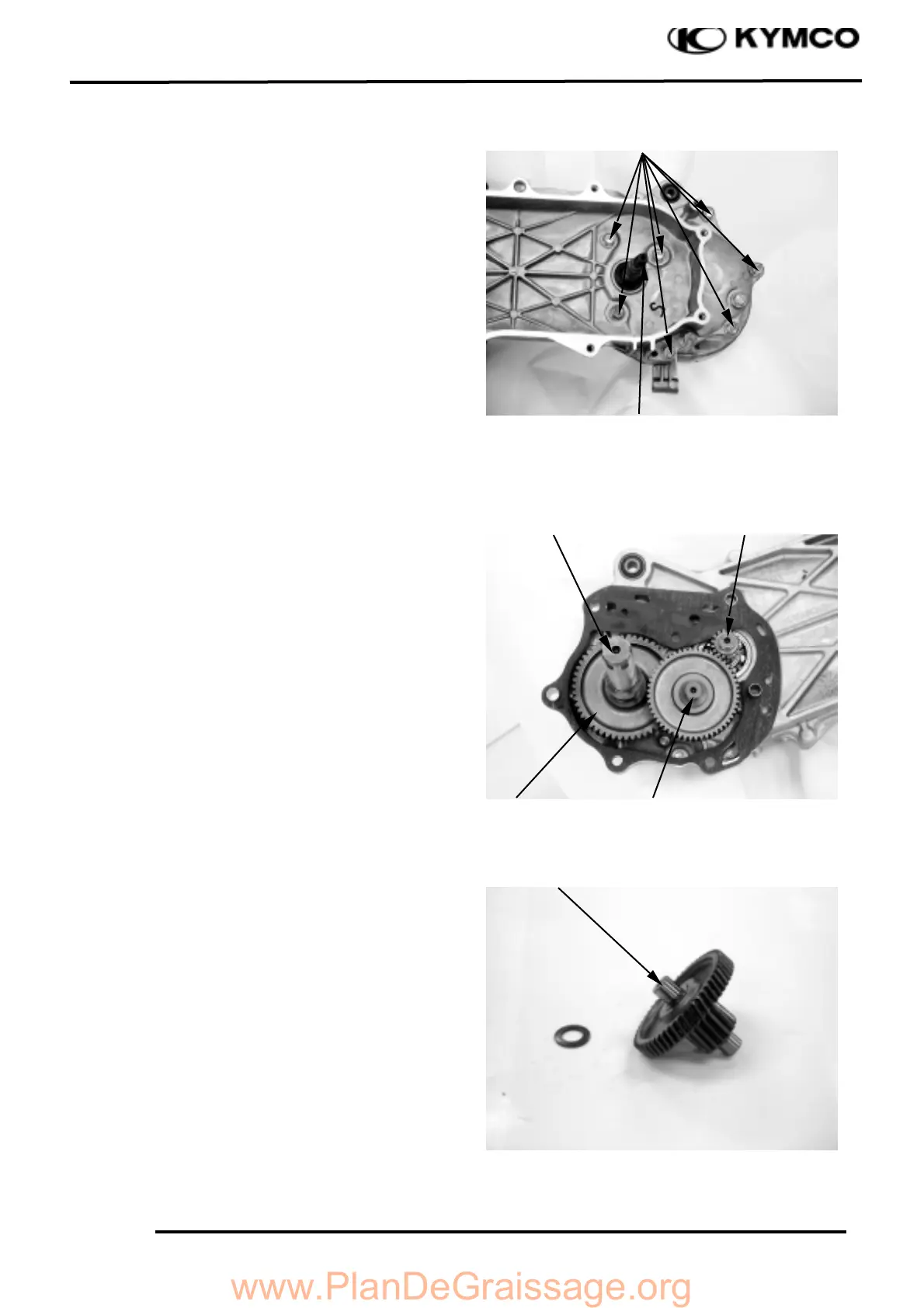

FINAL REDUCTION DISAS-
SEMBLY
Remove the left crankcase cover. (
!
9-3)
Remove the clutch/driven pulley. (
!
9-9)
Drain the transmission gear oil into a clean
container.
Remove the transmission case cover attaching
bolts.
Remove the transmission case cover.
Remove the gasket and dowel pins.
Remove the final gear and countershaft.
FINAL REDUCTION INSPECTION
Inspect the countershaft and gear for wear or
damage.
Final Shaft
Final Gear
Countershaft
Countershaft
Driver shift
Driver shift
Bolts
