KYMCO MX'ER 50 - Frame Covers; Frame Covers;Exhaust Muffler

2. FRAME COVERS/EXHAUST MUFFLER
2-3
MX’er 50
FRAME COVERS

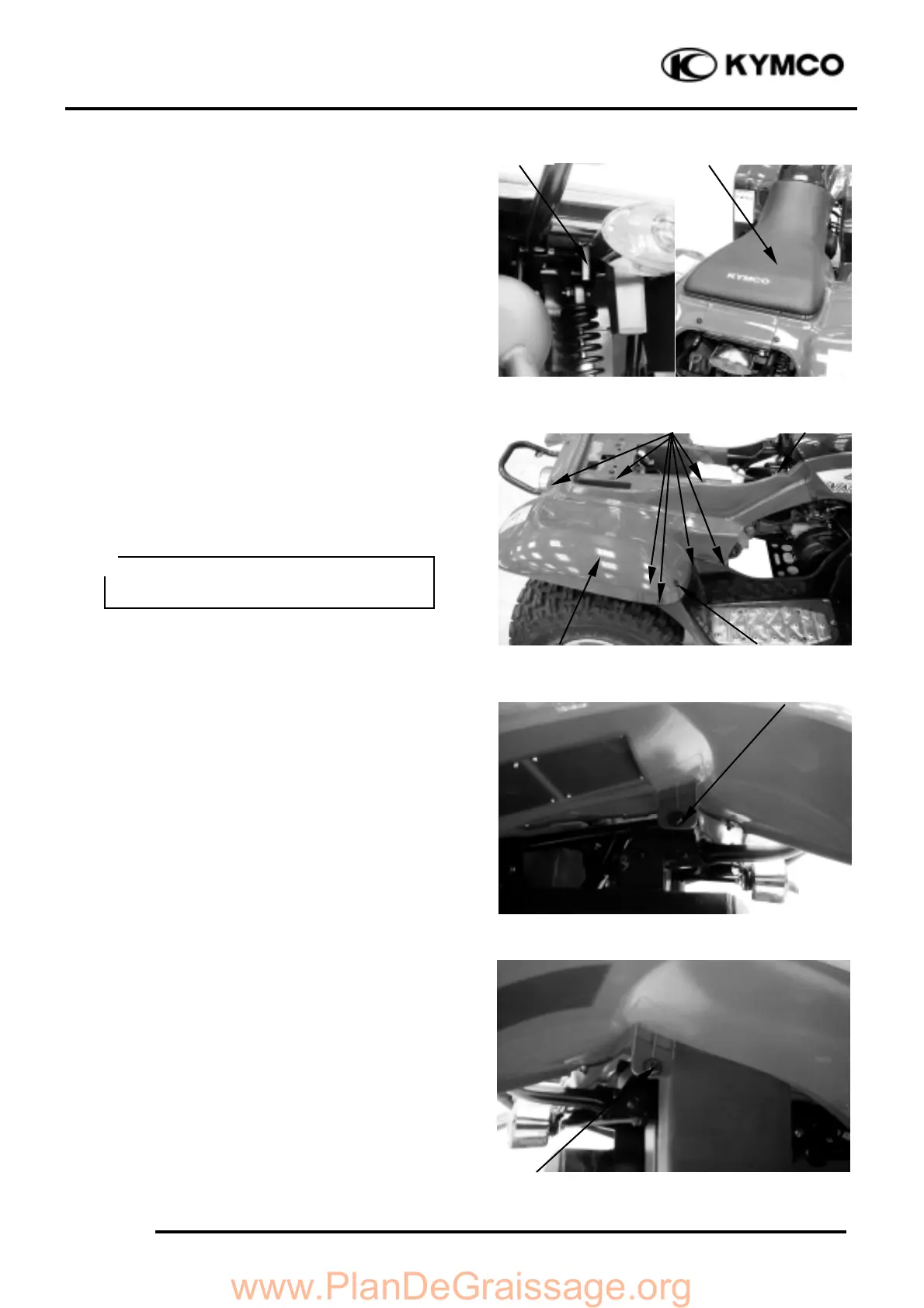

SEAT REMOVAL
Pull the lever backward, then pull up the
seat at the rear.
Remove the seat.
LEFT AND RIGHT FENDER REMOVAL
Remove seven screws and two bolts
attaching the left rear fender.
Remove seven screws and two bolts
attaching the right rear fender.
Remove the left rear fender under bolt.
Remove the left rear fender.
Remove right rear fender under bolt.
Remove the right rear fender.
Seat
Screws
Frame Right Cover
Bolt
Bolt
Lever
During removal, do not pull the joint
claws forcedly to avoid damage.
°Ø
Bolt
Bolt
