11. CRANKCASE/CRANKSHAFT
11-4
MX’er 50

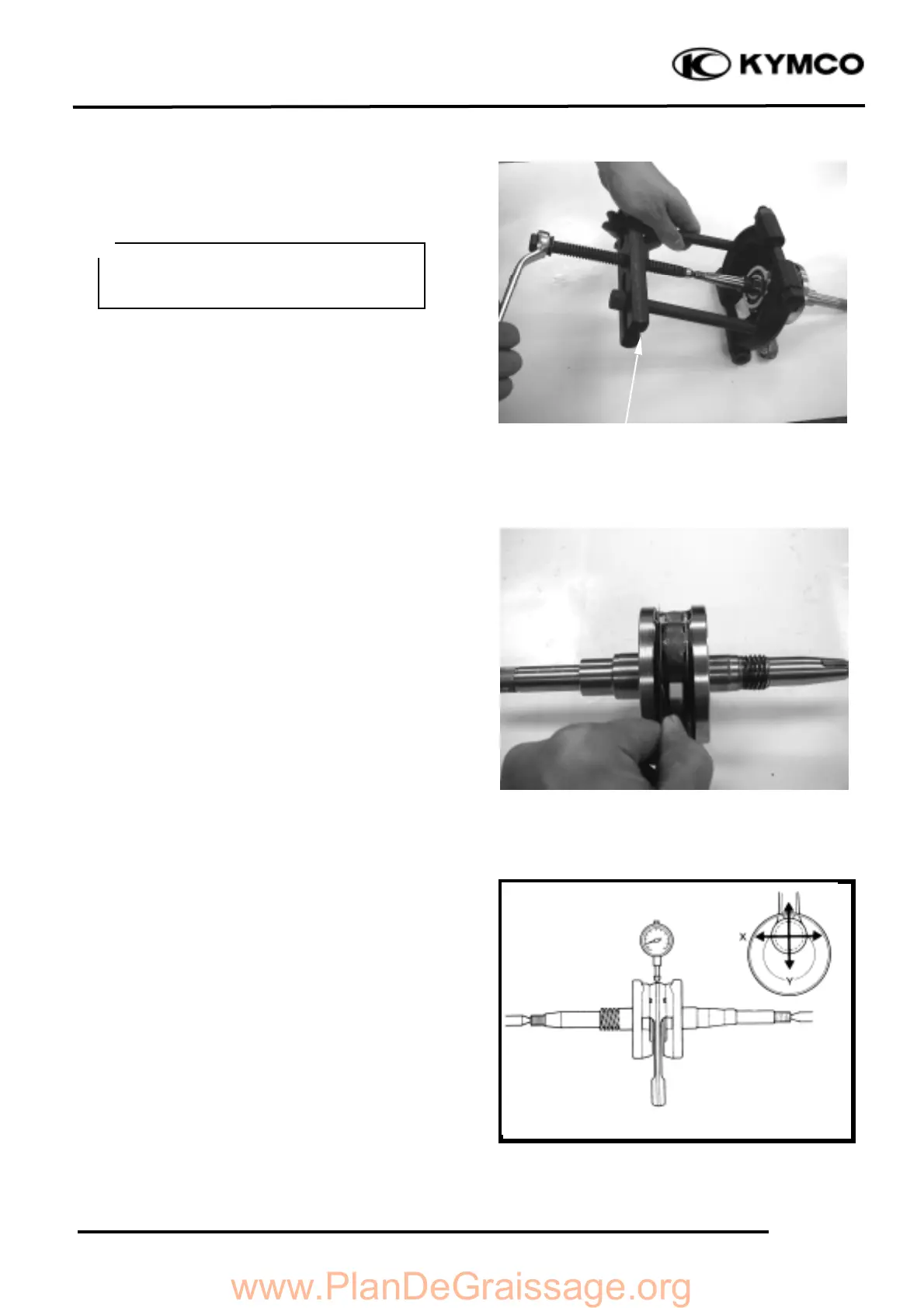

Remove the remaining bearing on the
crankshaft side using the universal bearing
puller.
CRANKSHAFT INSPECTION
Measure the connecting rod big end side
clearance.
Service Limit: 0.6mm replace if over
Measure the connecting rod big end radial
clearance at two points in the X and Y
directions.
Service Limit: 0.04mm replace if over
Universal Bearing Puller
When separating the crankcase, the oil
seals must be removed. Replace the oil
seals with new ones.
