5. FUEL SYSTEM
5-11
MX’er 50

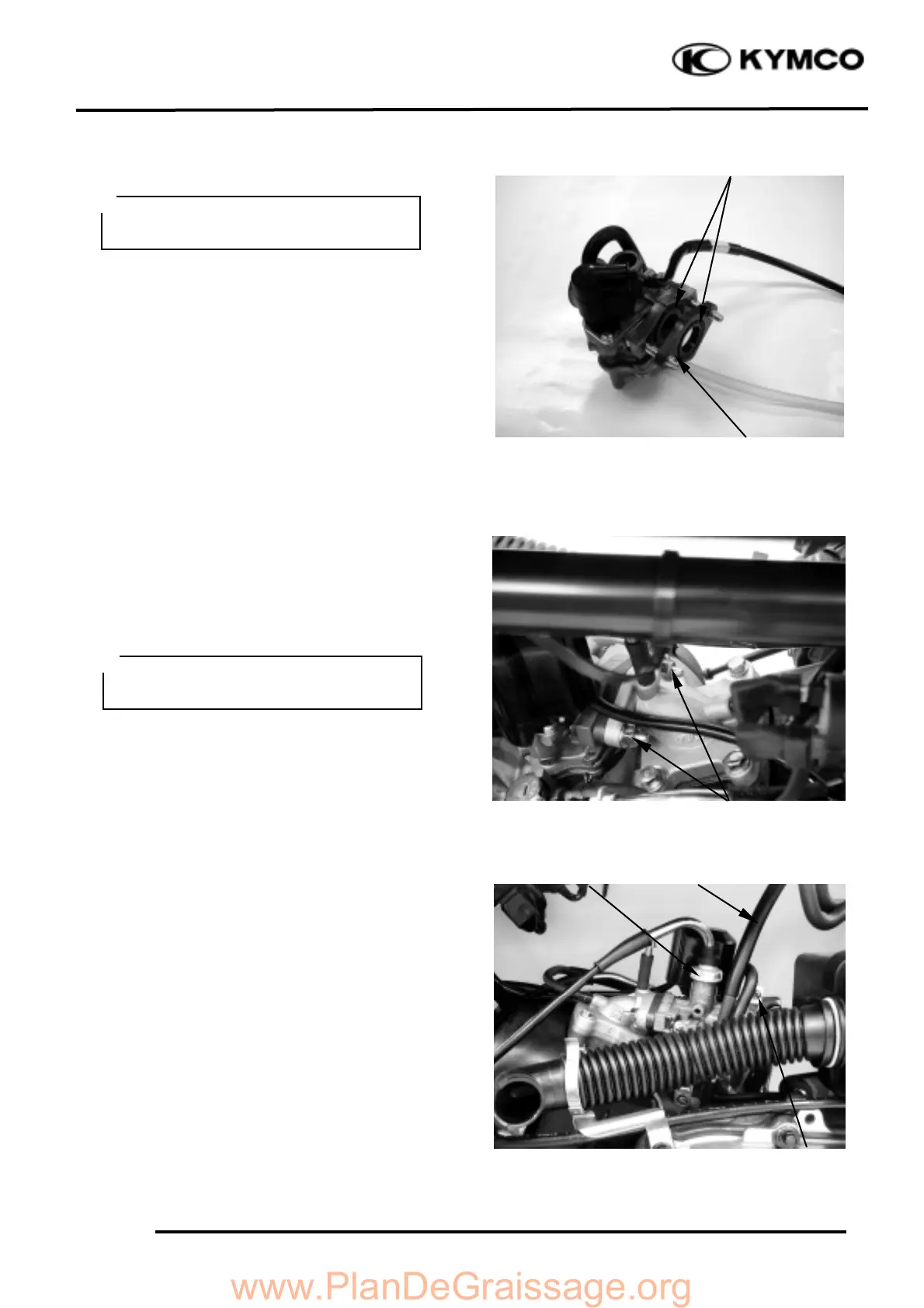

CARBURETOR INSTALLATION
Check the carburetor insulator and O-ring for
wear or damage.
Install the carburetor and insulator onto the
intake manifold and tighten the two lock
nuts.
Connect the fuel tube and auto bystarter
wire connector.
Install the carburetor cap. (
!
5-4)
Install the fuel tube
Install the air cleaner onto the carburetor and
tighten the band screw.
O-rings
Insulator
Nuts
When installation, do not allow foreign
particles to enter the carburetor.
°Ø
Route the auto bystarter wire correctly
and properly.
°Ø
Fuel Tube
Carburetor Cap
Band
