10. FINAL REDUCTION
10-4
MX’er 50

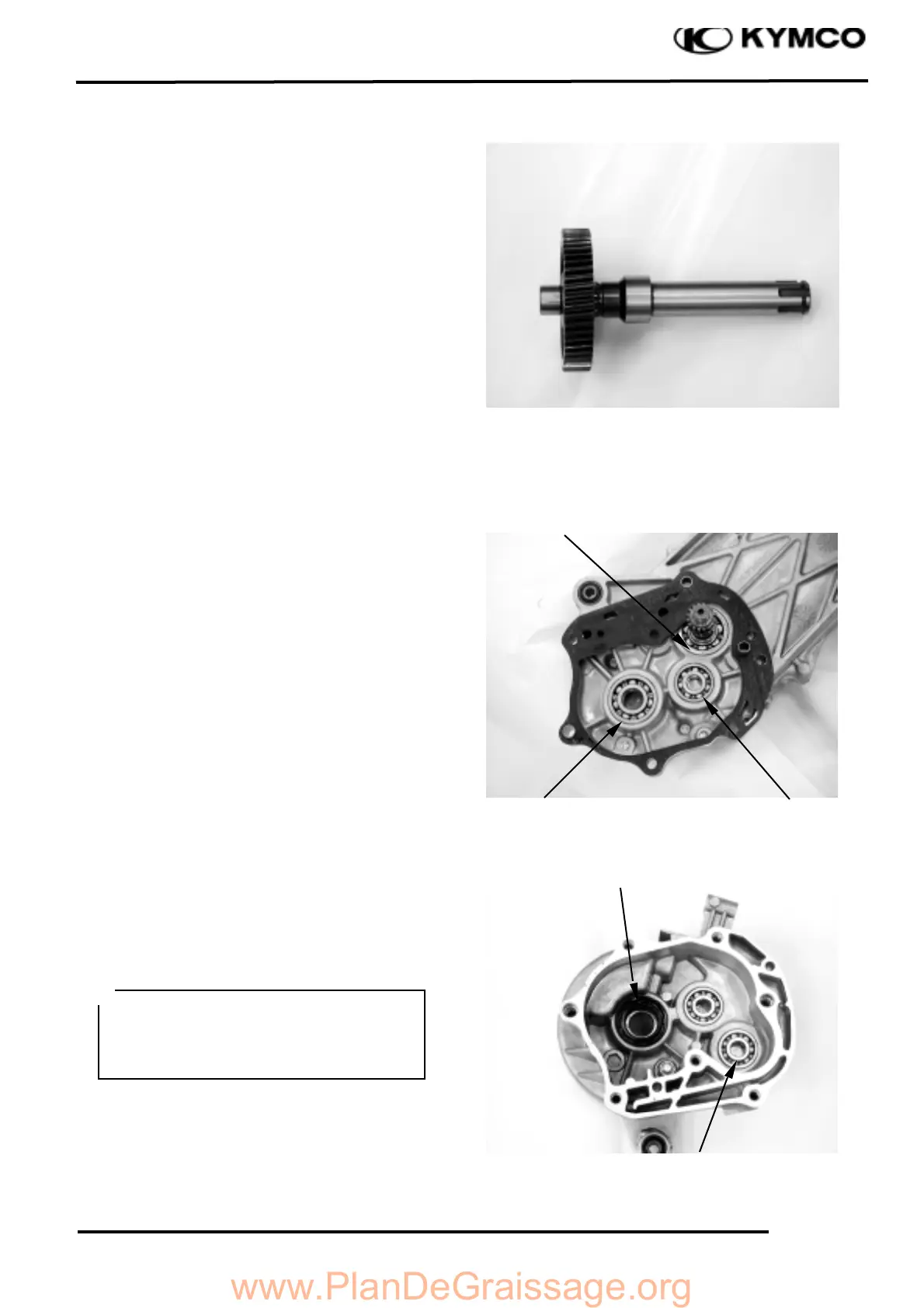

Inspect the final gear and final shaft for wear,
damage or seizure.
Check the left crankcase bearings for
excessive play and inspect the oil seal for
wear or damage.
Inspect the drive shaft and gear for wear or
damage.
Check the transmission case cover bearings
for excessive play and inspect the final shaft
bearing oil seal for wear or damage.
Do not remove the transmission case
cover except for necessary part replace-
ment. When replacing the drive shaft,
also replace the bearing and oil seal.
°Ø
Oil Seal
Drive Shaft Bearing
Final Shaft Bearing
Drive Shaft Bearing
Countershaft Bearing
