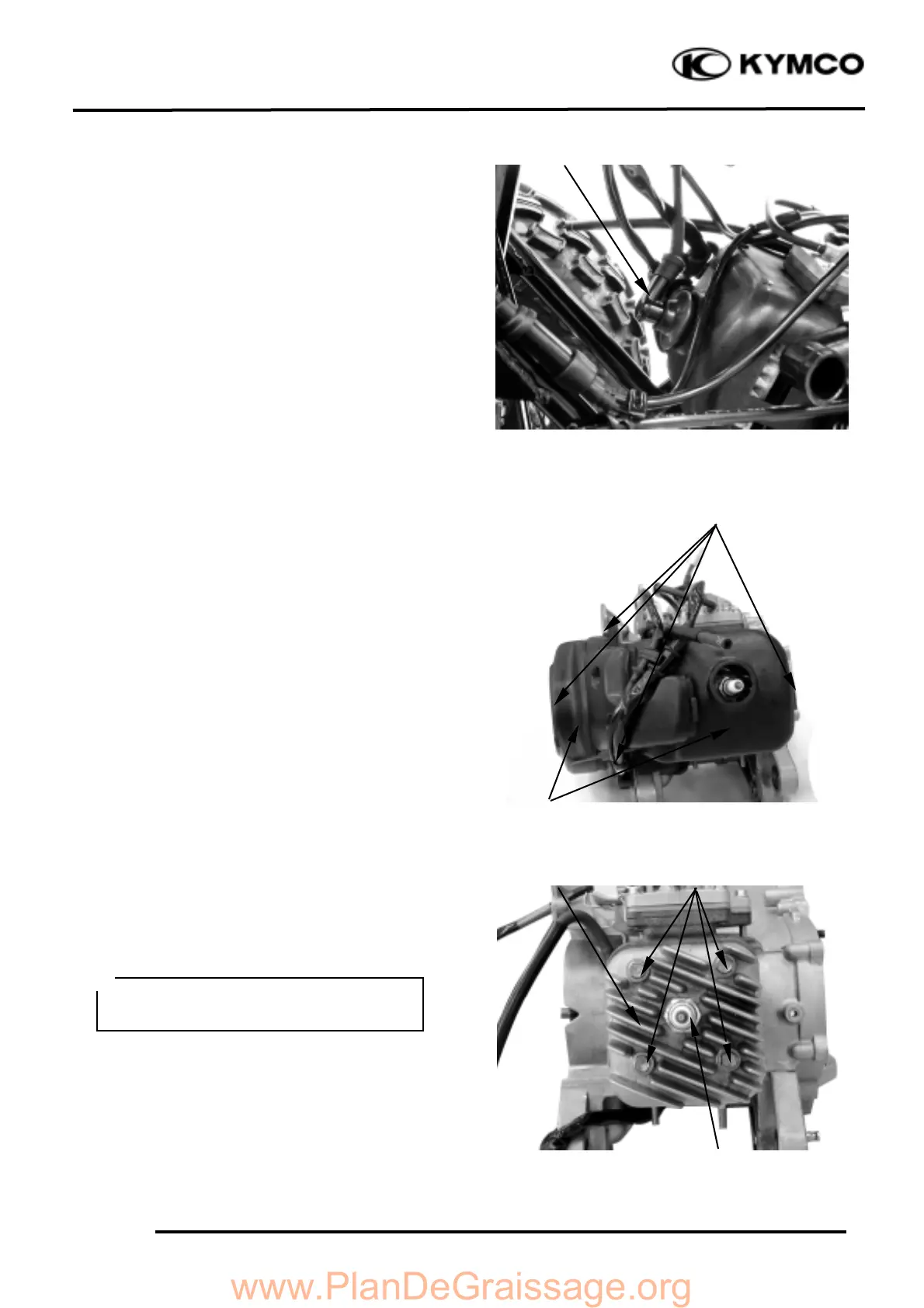

CYLINDER HEAD
REMOVAL
Remove the spark plug cap.
Remove the exhaust muffler. (
!
2-5)
Remove the three bolts attaching the fan
cover to remove the fan cover.
Remove the bolt attaching the engine hood
to remove the engine hood.
The installation sequence is the reverse of
removal.
Remove the spark plug.
Remove the cylinder head bolts and the
cylinder head.
Remove the cylinder head gasket.
Cylinder head Bolts
Spark Plug Cap
Fan Cover/Engine Hood
Bolts
Cylinder Head
Spark Plug
Loosen the bolts diagonally in 2 or 3
times.
