7. CYLINDER HEAD/CYLINDER/PISTON
7-4
MX’er 50

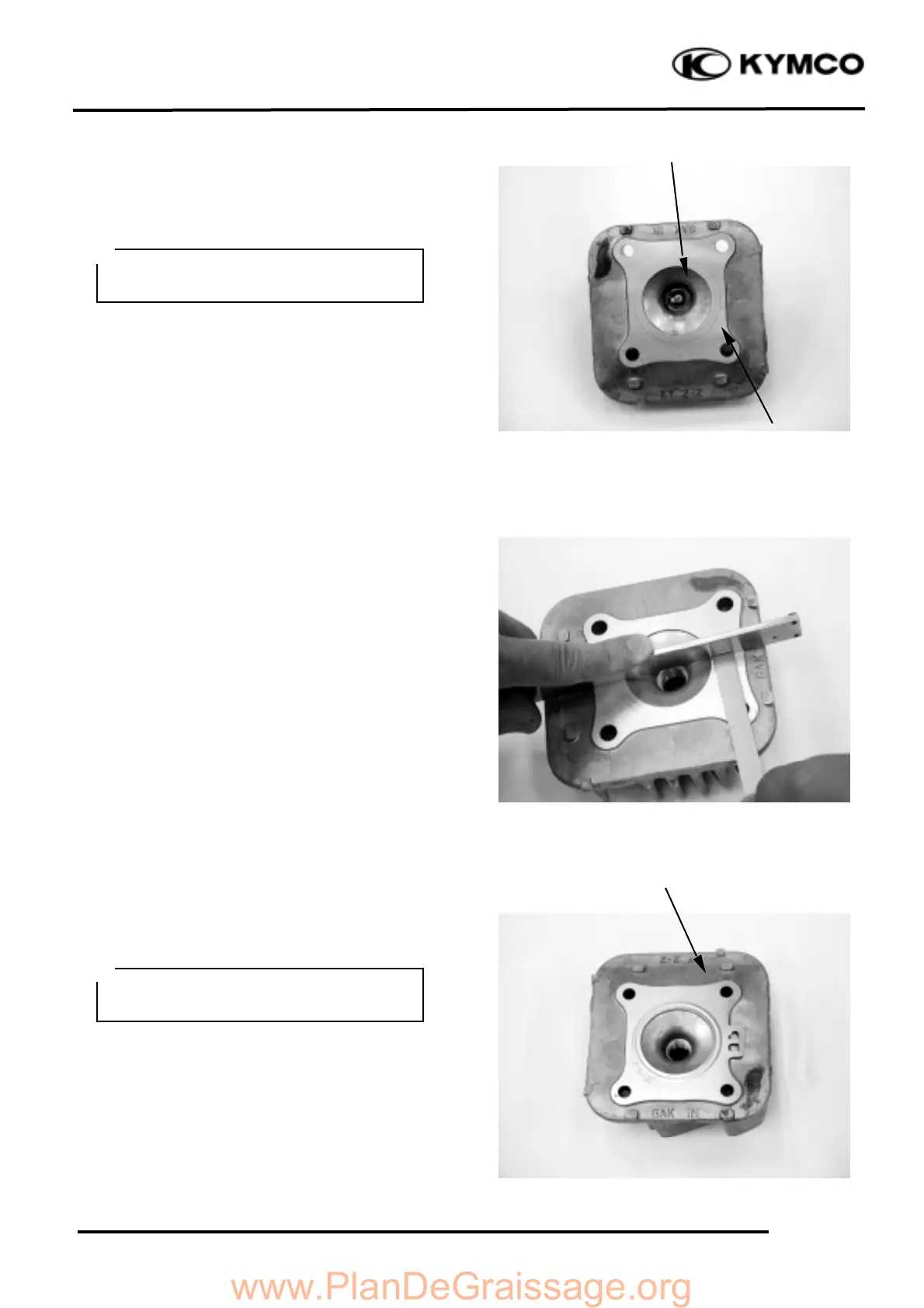

COMBUSTION CHAMBER
DECABONIZING
Remove the carbon deposits from the
combustion chamber
CYLINDER HEAD INSPECTION
Check the cylinder head for warpage with a
straight edge and feeler gauge.
Service Limit: 0.10mm replace if over
CYLINDER HEAD INSTALLATION
Install the cylinder head on the cylinder
properly.
Install a new cylinder head gasket onto the
cylinder.
Cylinder head Gasket
Combustion Chamber
Mating Surface
Avoid damaging the combustion cham-
ber wall and cylinder mating surface.
°Ø
Be careful not to damage the mating
surfaces.
°Ø
