7. CYLINDER HEAD/CYLINDER/PISTON
7-5
MX’er 50

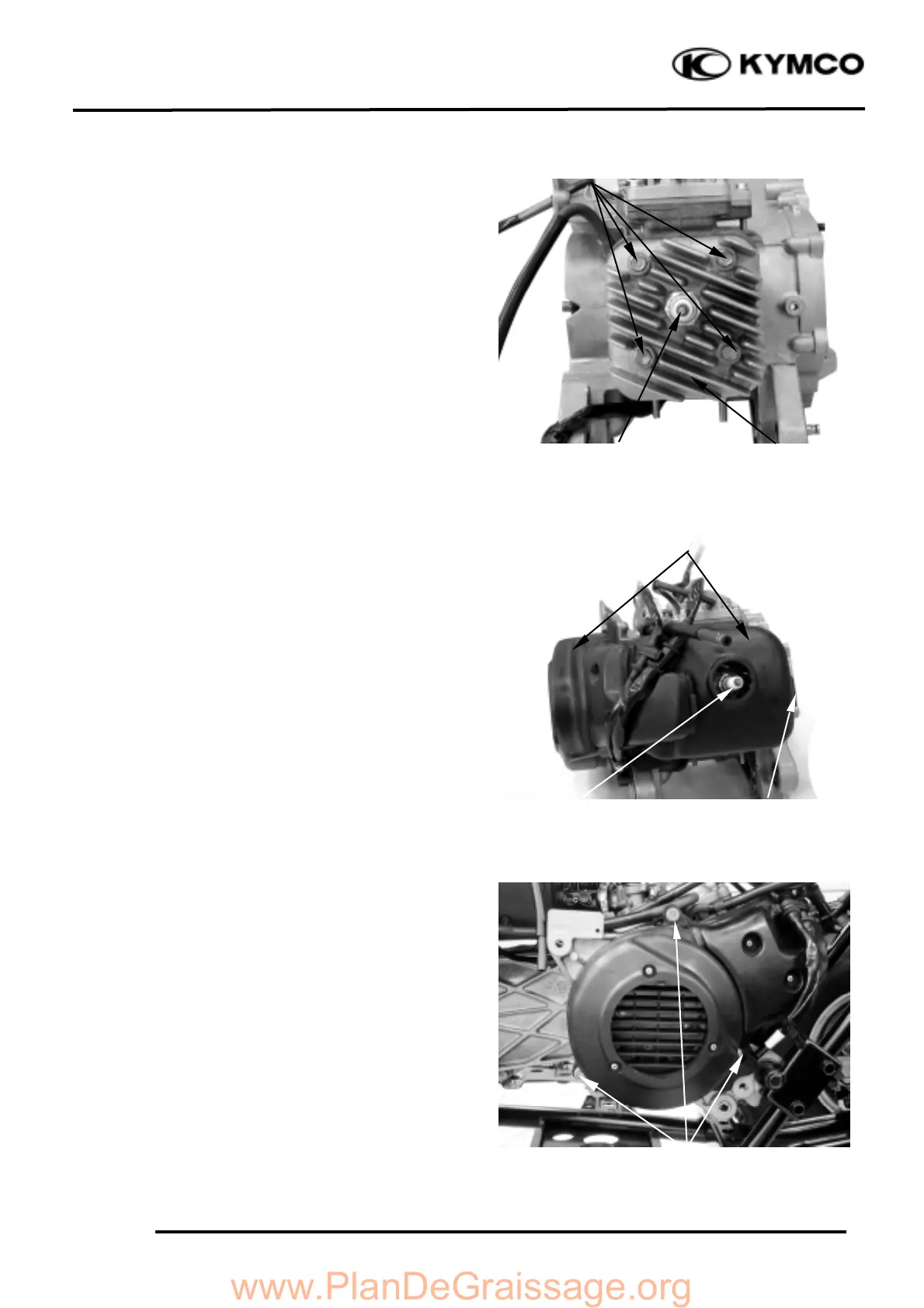

Cylinder Head Bolts Installation
Install and tighten the cylinder head bolts
diagonally in 2 or 3 times.
Torque: 1.5_ 1.7kg-m
Install the spark plug.
Torque: 1.1_ 1.7kg-m
Engine Hood Installation
Install the engine hood. (
!
7-3)
Install the spark plug cap. (
!
7-3)
Install the exhaust muffler. (
!
7-3)
Perform the following inspections after
installation:
• Compression test
• Abnormal engine noise
• Cylinder air leaks
Cylinder head Bolts
Bolts
Bolt
Cylinder Head
Spark Plug
Spark Plug
Engine Hood
