2. FRAME COVERS/EXHAUST MUFFLER
2-6
MX’er 50

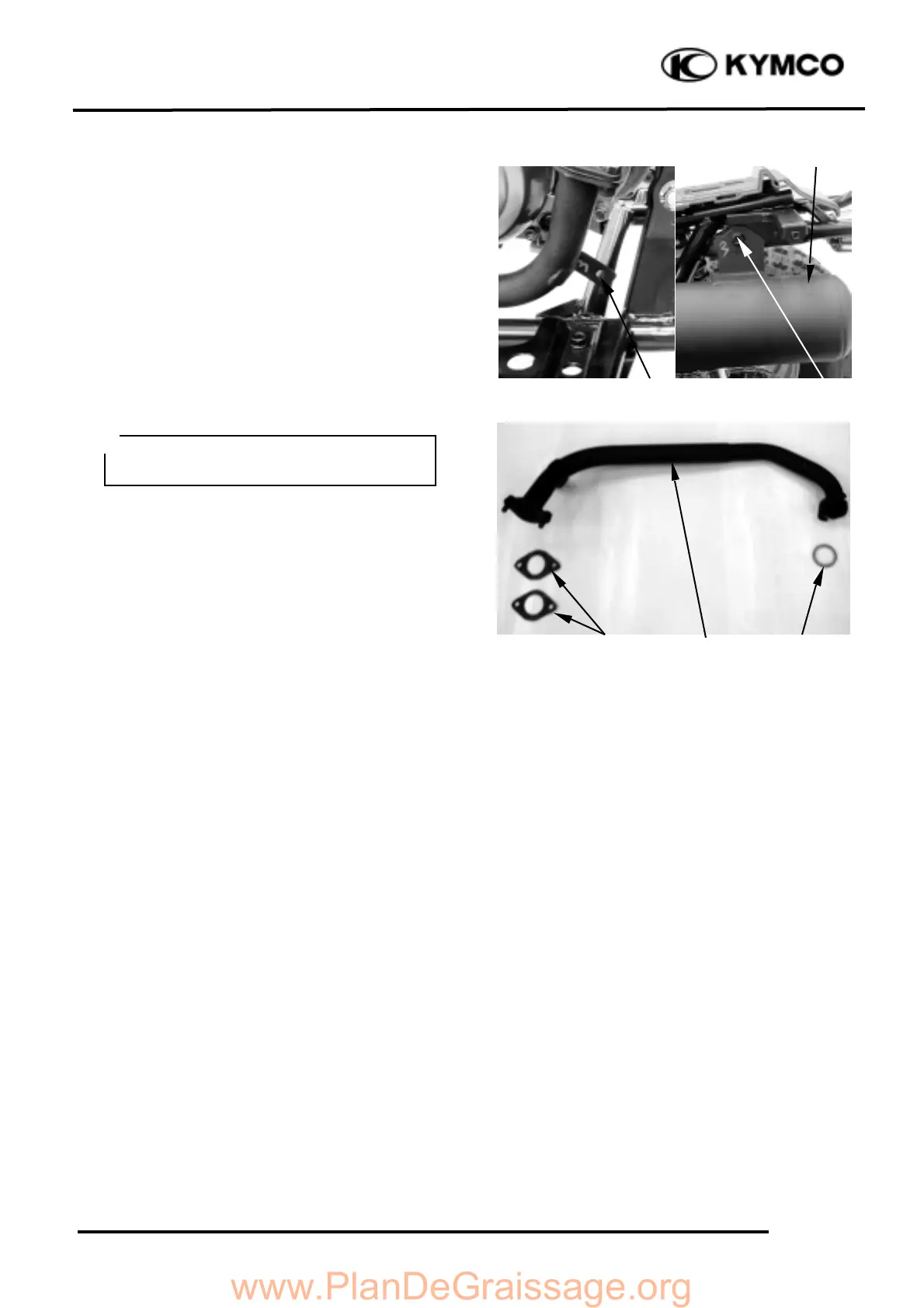

Remove the exhaust muffler lock bolts.
Remove the exhaust muffler and them
remove exhaust pipe.
When installing, first install the exhaust pipe
onto the engine and then install the exhaust
muffler.
Torque:
Exhaust muffler lock bolt: 3.0_ 3.6kgf-m
Exhaust muffler joint lock nut: 1.0_ 1.4kgf-
m
Bolt
Be sure to install a new exhaust muffler
gasket.
°Ø
Bolt
Muffler
Exhaust Pipe
Gasket
Gasket
