10. FINAL REDUCTION
10-6
MX’er 50

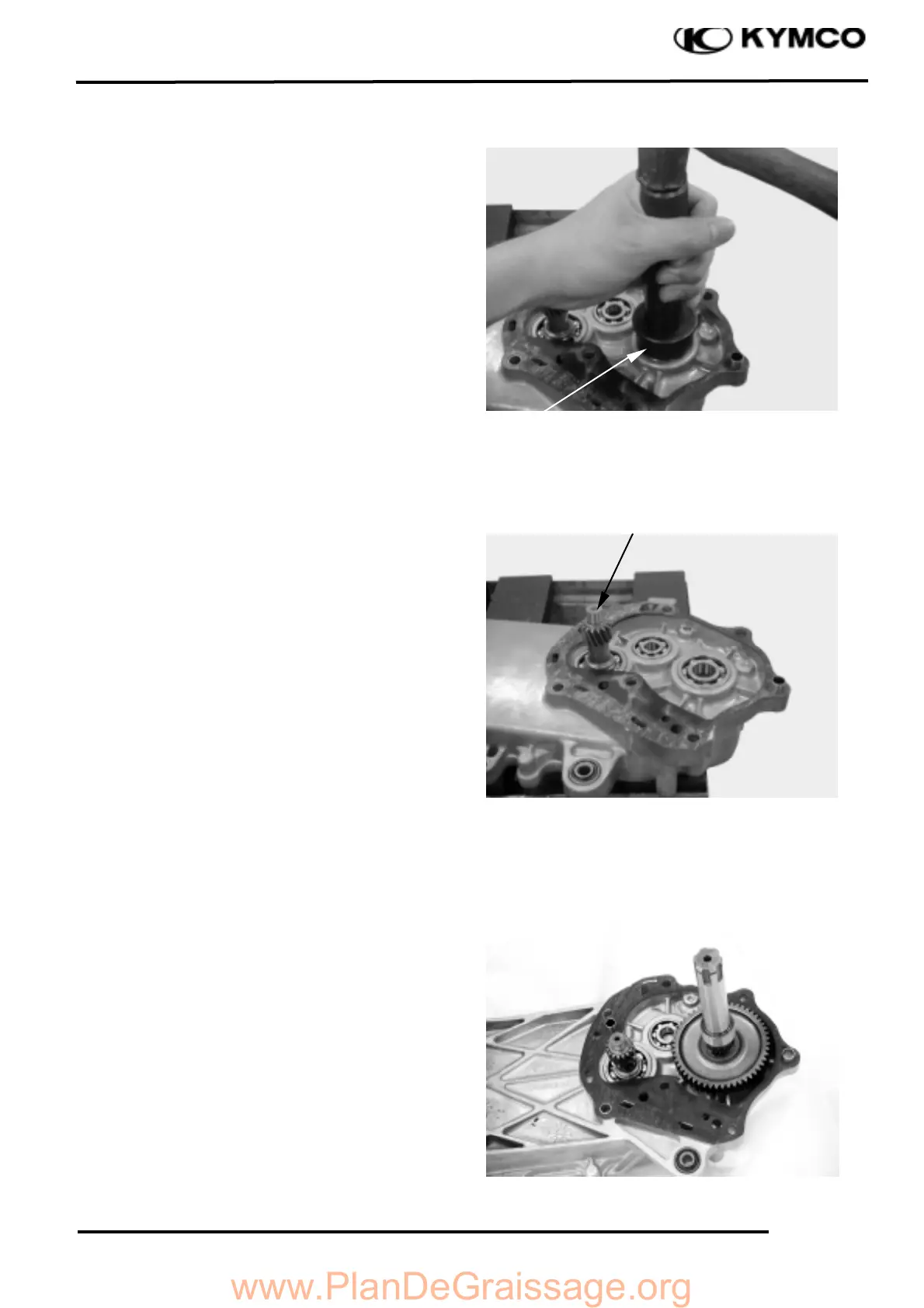

Drive new bearings into the left crankcase.
Install a new drive shaft oil seal.
FINAL REDUCTION ASSEMBLY
Install the drive shaft into the left crankcase.
Install the final gear and final shaft into the
left crankcase.
Drive Shaft
Bearing Outer Driver
