KYMCO MX'ER 50 - Page 152

12. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM
12-12
MX’er 50

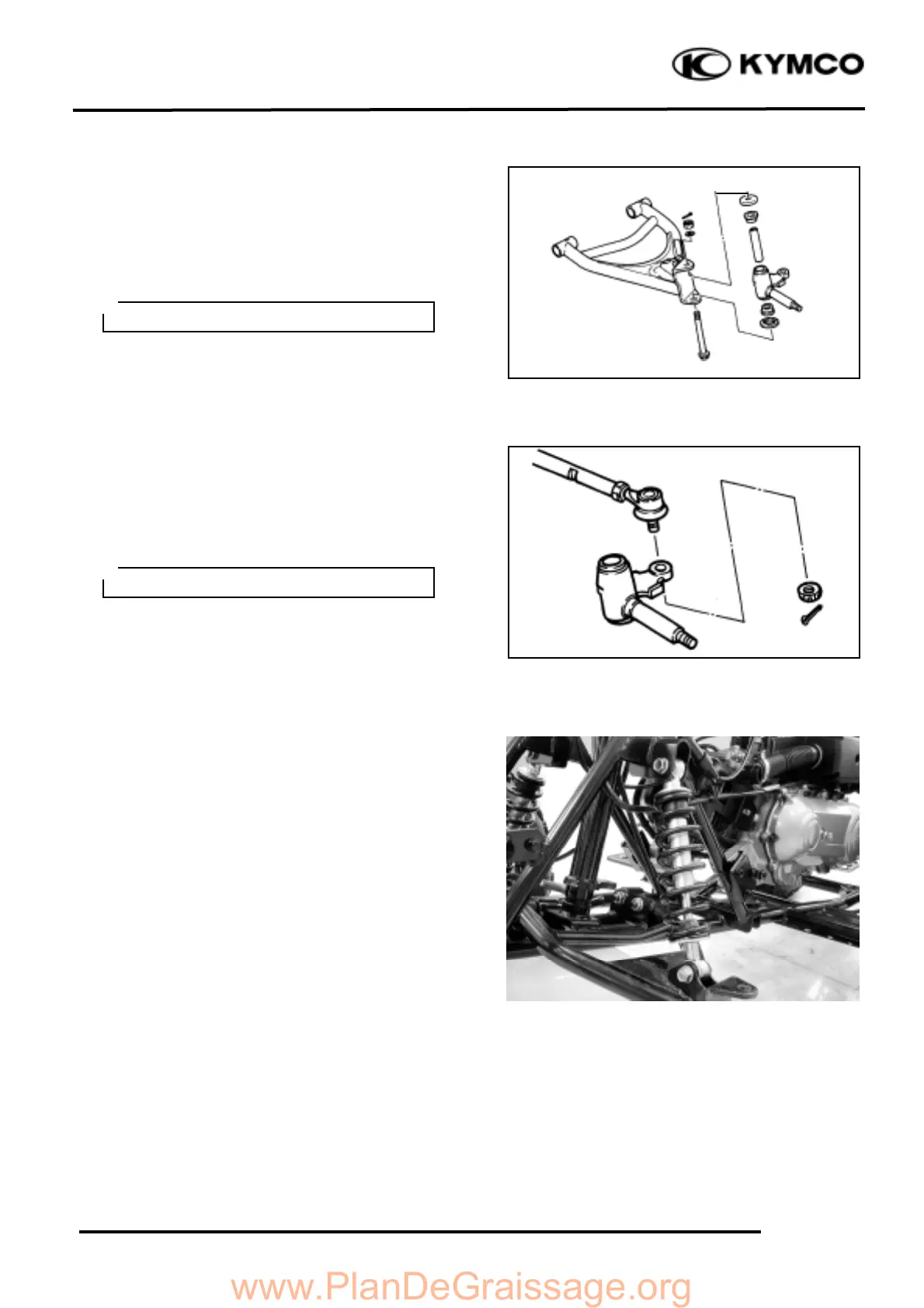

Apply the grease onto the bush, collars and
covers, then install the steering knuckle onto
the front arm and tighten the nut.
Torque: 4.0_ 5.0kgf-m
Install the cotter pin and band ends of cotter
pin.
Install the tie-rod onto the steering knuckle
and tighten the nut.
Torque: 4.0_ 5.0kgf-m
Install the cotter pin and band ends of cotter
pin.
Install the shock absorber and tighten the
upper and lower bolts.
Torque: 3.5_ 4.5kgf-m
Install the brake shoe plate, wheel hub and
front wheel.
Refer to the “FRONT WHEEL
INSTALLATION” section.
Bleed Valve
Always use a new cotter pin.
°Ø
Always use a new cotter pin.
°Ø
