12. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM
12-11
MX’er 50

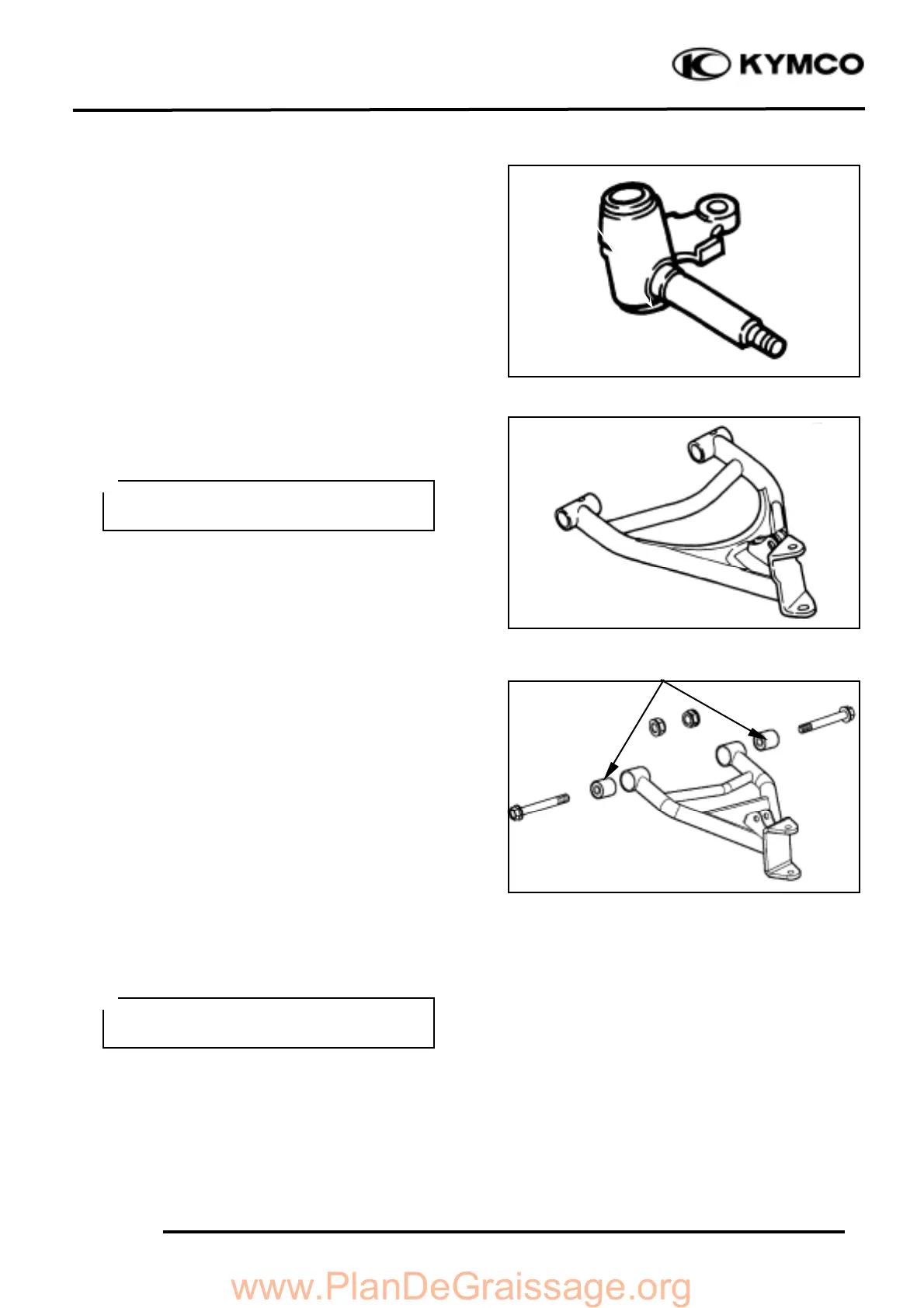

Inspect the steering knuckle.
Replace if cracks, pitting or damage.
.
Inspect the front arm.
Replace if cracks, bends or damage.
Inspect bushes.
Replace if wear or damage.
INSTALLATION
Reverse the “REMOVAL” procedures.
Install the front arm nut onto the frame and
tighten the nuts.
Torque: 4.0_ 5.0kgf-m
Do not attempt to straighten a bent arm,
this may dangerously weaken the arm.
°Ø
Apply the grease onto the bushes, collars
and covers.
°Ø
Bushes
