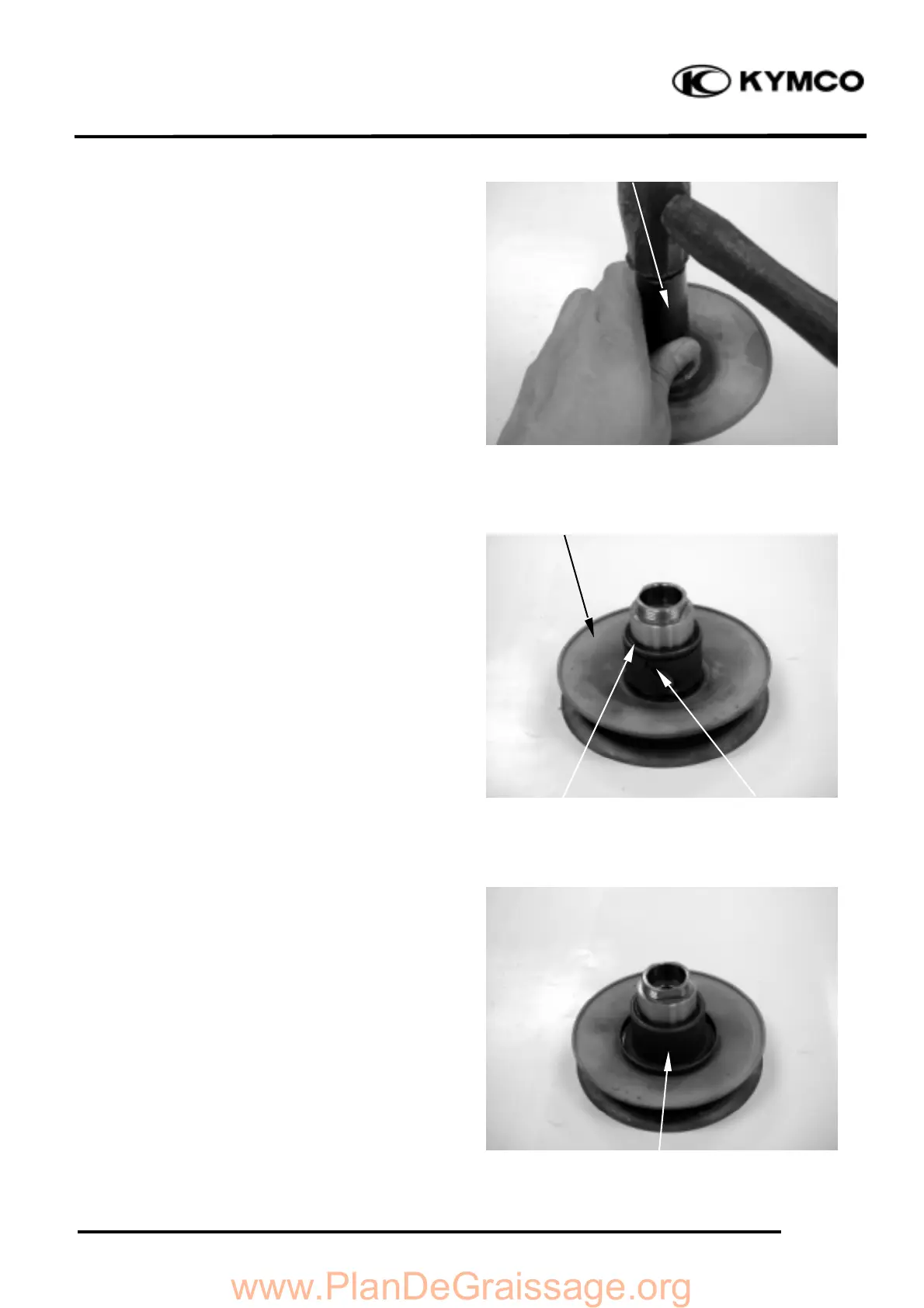

Drive in a new needle bearing into the driven
face with the mark facing up
CLUTCH/DRIVEN PULLEY ASS EMBLY
First install the movable driven face onto the
driven face. Then, install the guide roller
pins, O-rings and a new oil seal.
Install the seal collar.
Seal Collar
O-rings
Guide Roller Pin
Driven Pulley
Bearing Driver Pilot
