11. CRANKCASE/CRANKSHAFT
11-6
MX’er 50

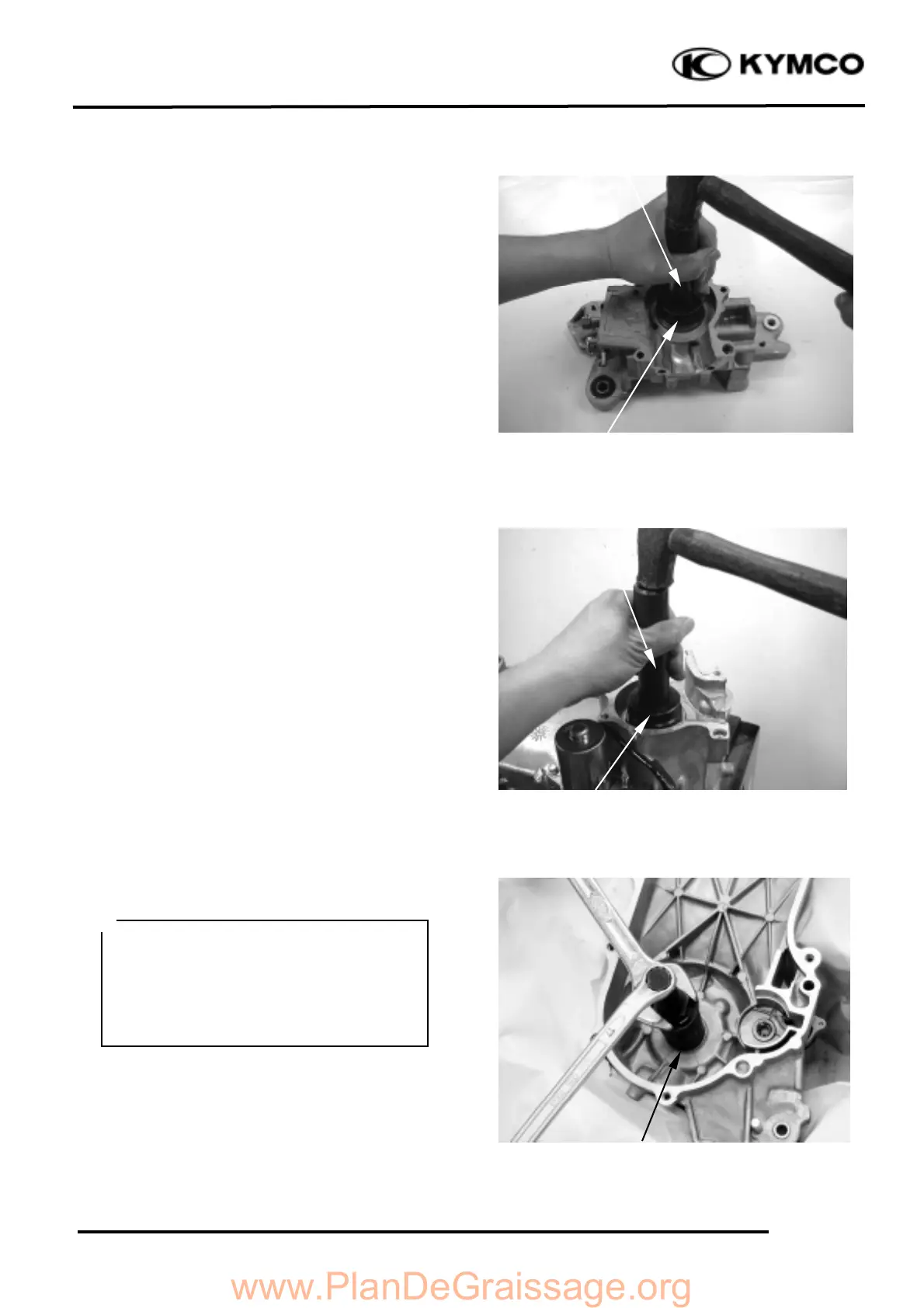

Drive a new crankshaft bearing into the right
crankcase.
Drive a new crankshaft bearing into the left
crankcase.
Install the crankshaft into the left crankcase.
Bearing Outer Driver Handle A
Bearing Outer Driver Handle A
Bearing Outer Driver, 37x40mm
Bearing Driver Pilot, 17mm
Bearing Outer Driver, 42x47mm
Pilot, 20mm
Crankcase Assembly Tool
• Apply KYMCO ULTRA motor oil or
molybdenum disulfide to the crank-
shaft bearings and connecting rod big
end.
• Apply grease to the lip of the oil seal
and then install it.
