11. CRANKCASE/CRANKSHAFT
11-8
MX’er 50

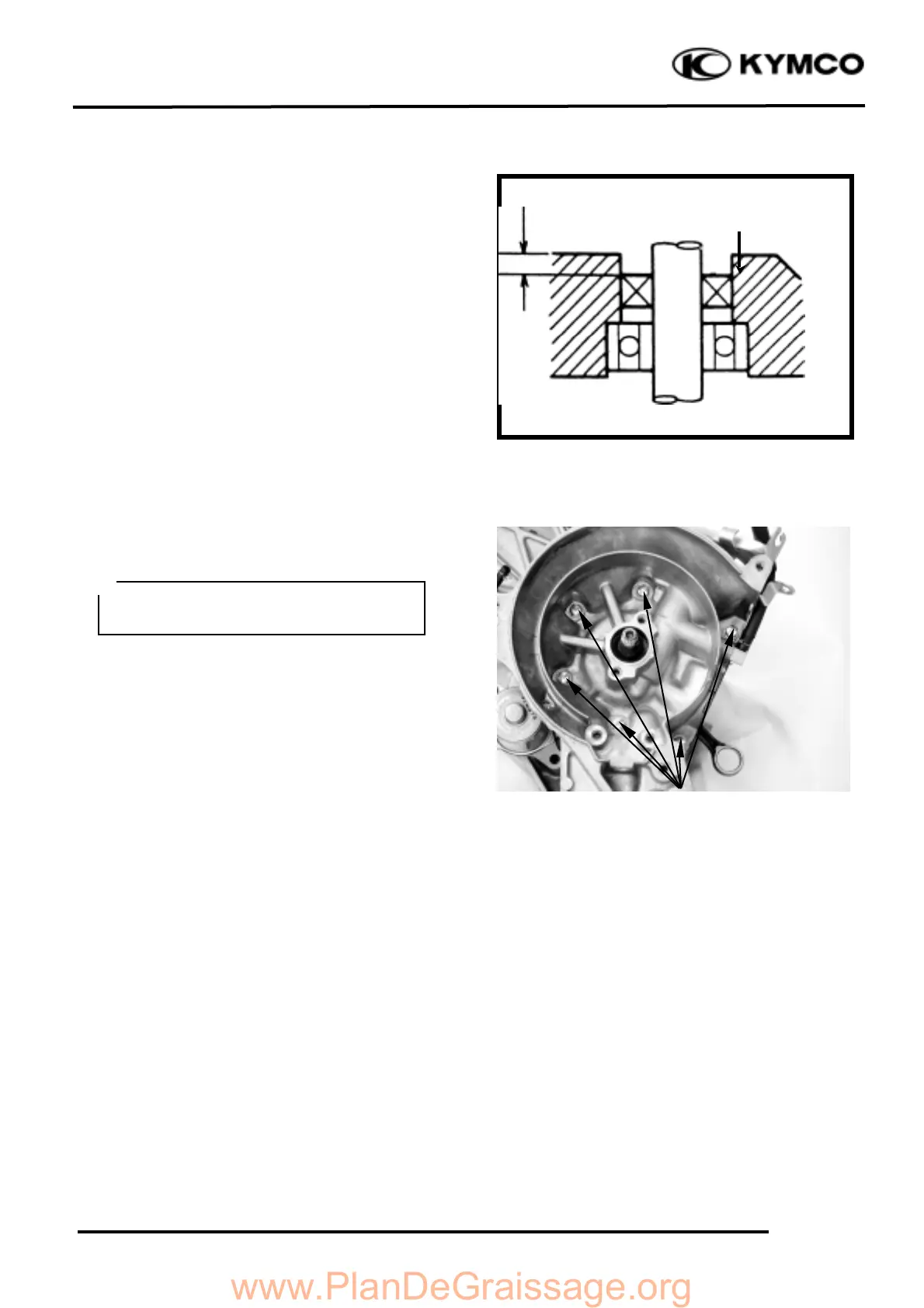

The distance between the left crankcase oil
seal and crankcase surface is about 1.0mm.
Install and tighten the crankcase attaching
bolts.
Oil Seal
1.0mm
Bolt
After assembly, check the crankshaft
for smooth operation.
