12. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM
12-5
MX’er 50

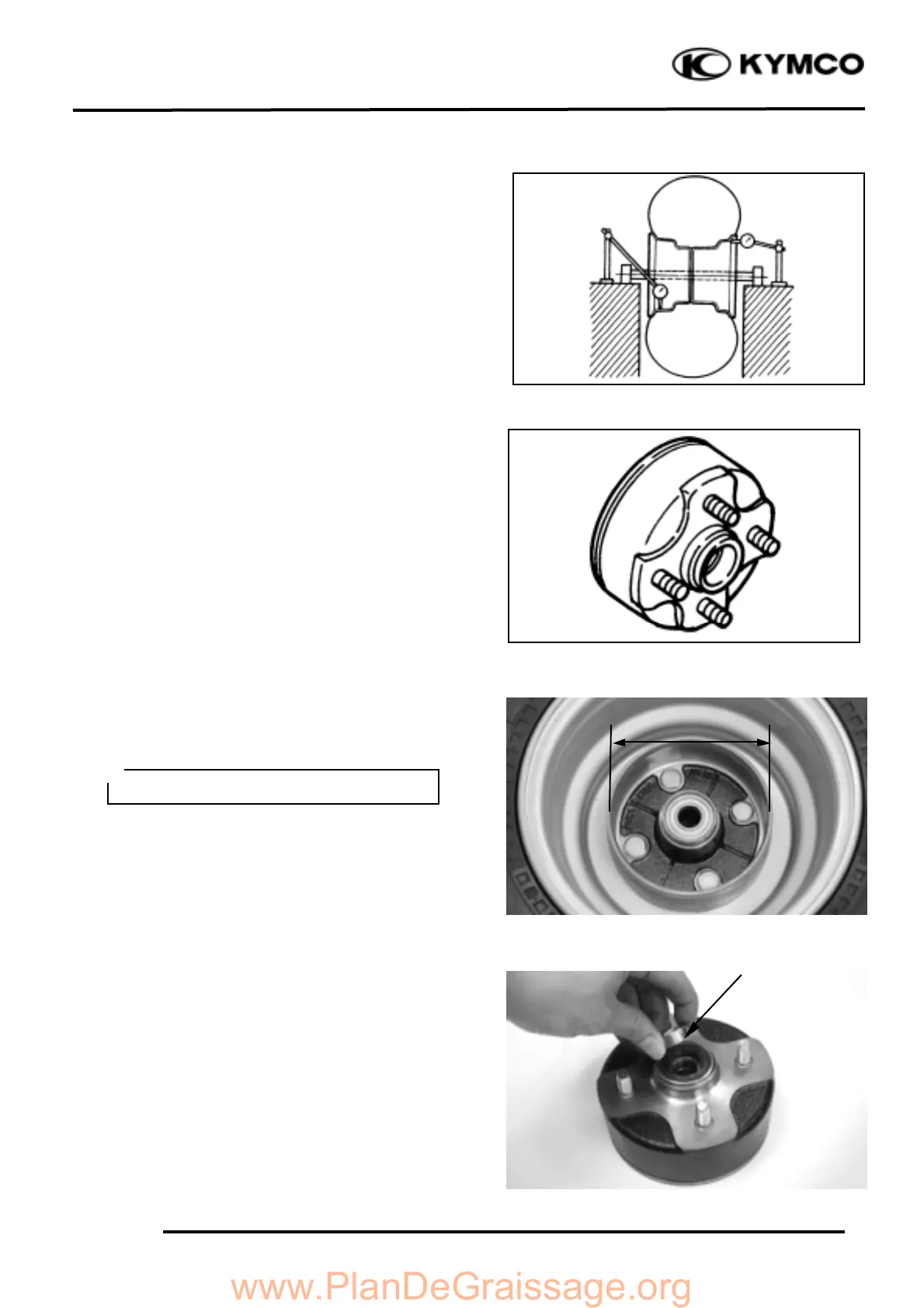

Measure the wheel run out.
Replace wheel or check bearing play if out
of specification
Rim run out limits:
Vertical: 2.0mm
Lateral: 2.0mm
Inspect the front wheel hub.
Replace if cracks or damage.
Inspect the front brake drum.
Measure the front brake drum I.D.
Service limits: 111mm
FRONT WHEEL BEARING
Remove the side collar.
Side Collar
Keep oil or grease off the brake drum.
