FRAME

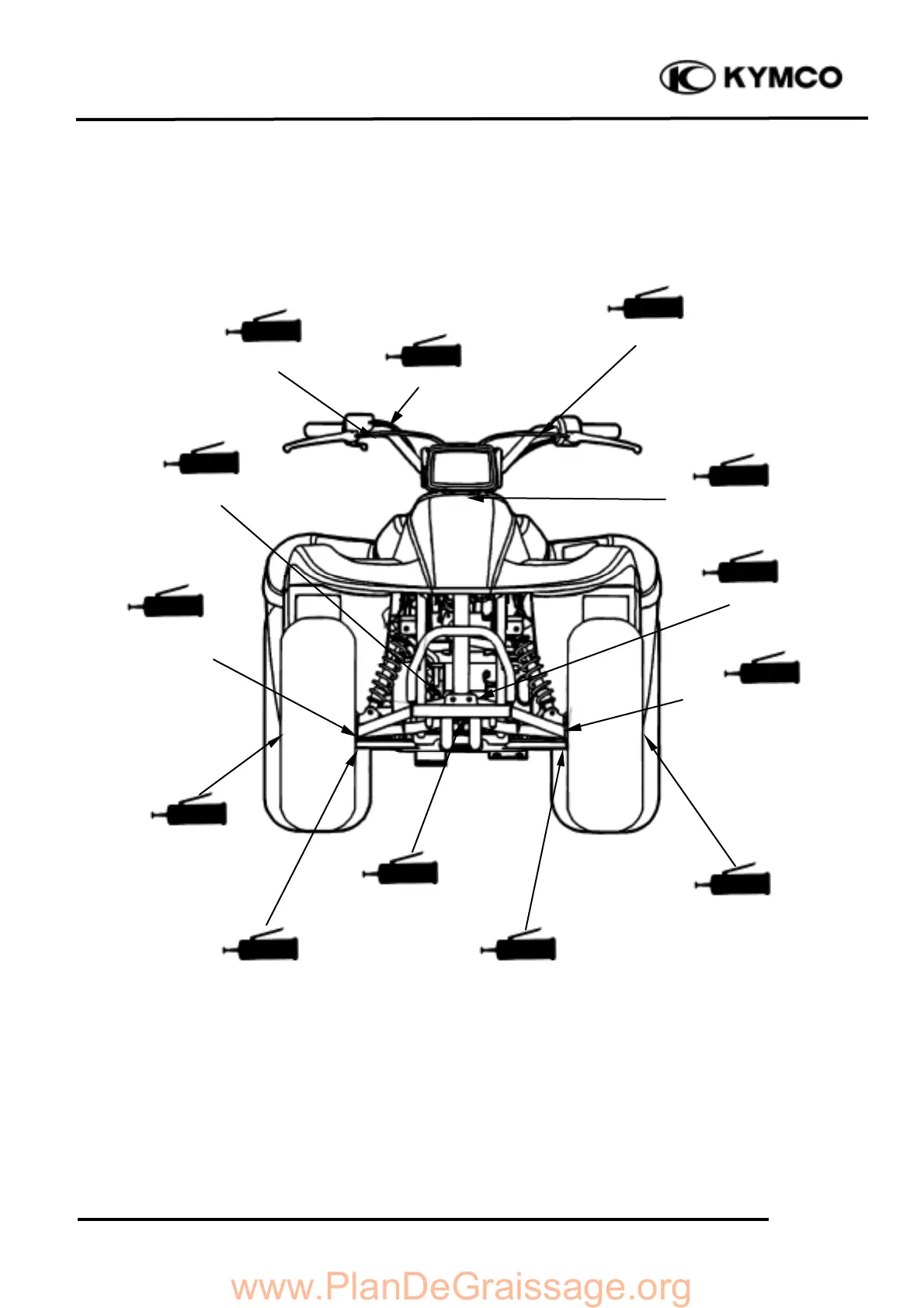

The following is the lubrication points for the frame.
Use general purpose grease for parts not listed.
Apply clean engine oil or grease to cables and movable parts not specified. This will avoid
abnormal noise and rise the durability of the motorcycle.
Steering knuckle/Thrust
Cover/Bush/Collar
Steering Column Upper
Rear Brake Cable
Front Brake
camshaft/Oil
Seal/O-ring
Throttle Cable
Front Brake Cable
Steering Column Lower
Front Wheel
Oil Seal
Front Arm Bush
Front Brake
camshaft/Oil
Seal/O-ring
Front Wheel
Oil Seal
Steering knuckle/Thrust
Cover/Bush/Collar
Front Arm Bush
