12. FRONT WHEEL/FRONT BRAKE/FRONT
SUSPENSION/STEERING SYSTEM
12-18
MX’er 50

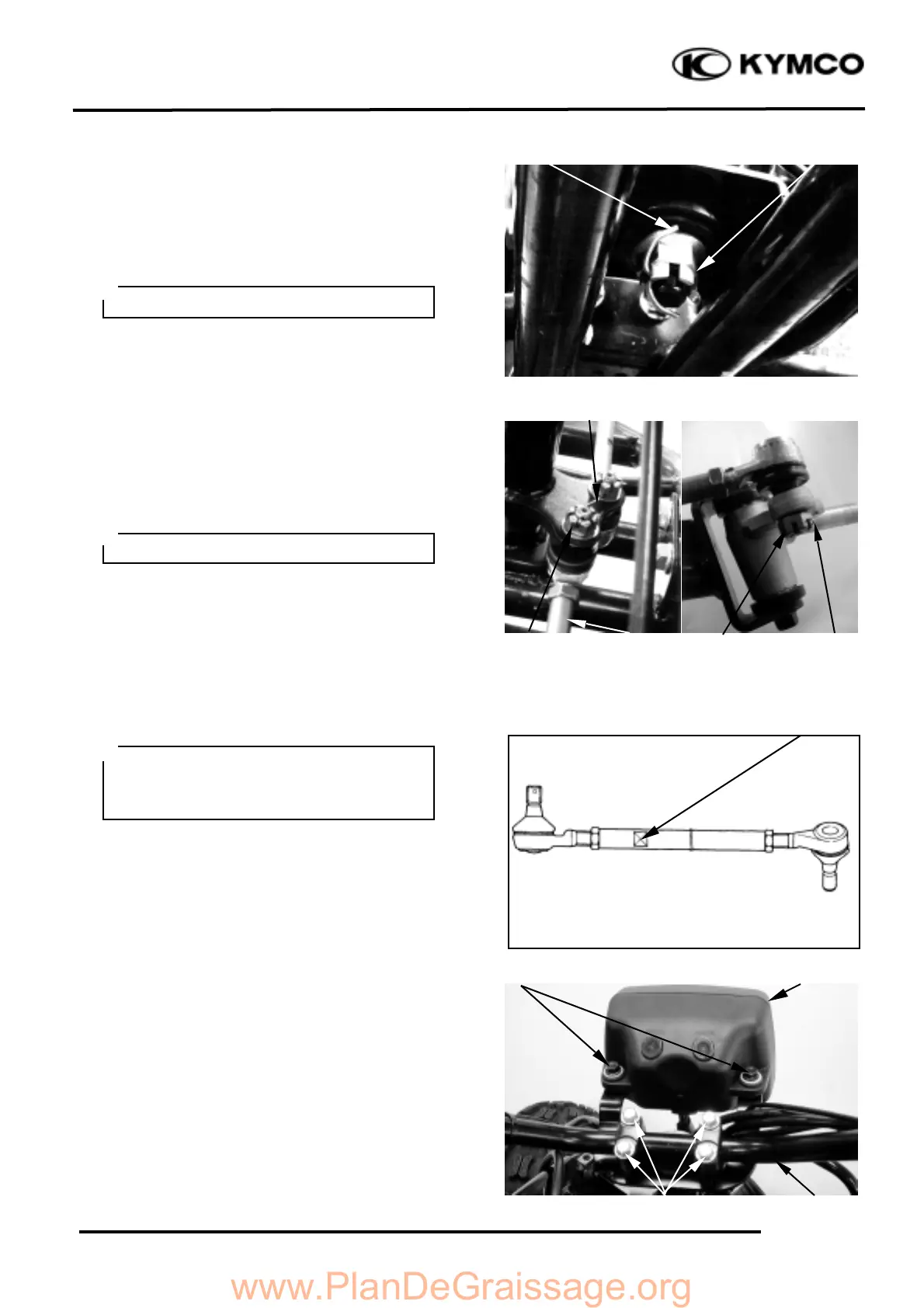

Install the steering column and collar, then
tighten the nut.
Torque: 6.0_ 8.0kgf-m
Install the cotter pin and band ends of cotter
pin.
Install the tie rods and tighten the nut.
Torque: 4.0_ 5.0kgf-m
Install the cotter pin and band ends of cotter
pin.
Install handlebar and handlebar holder, then
tighten the four bolts.
Torque: 1.8_ 2.5kgf-m
Be sure that the rod-end on the
indentation surface side is connected to
the steering column.
°Ø
Always use a new cotter pin.
°Ø
Always use a new cotter pin.
°Ø
Indentation Surface
Bolts
Headlight Unit
Bolts
Handlebar
Cotter Pin
Cotter Pin
Nut
Nut
Tie-rod
Cotter Pin
Nut
