18. ONLY ATV ON ROAD AVAILABLE
18-2
MX’er 50

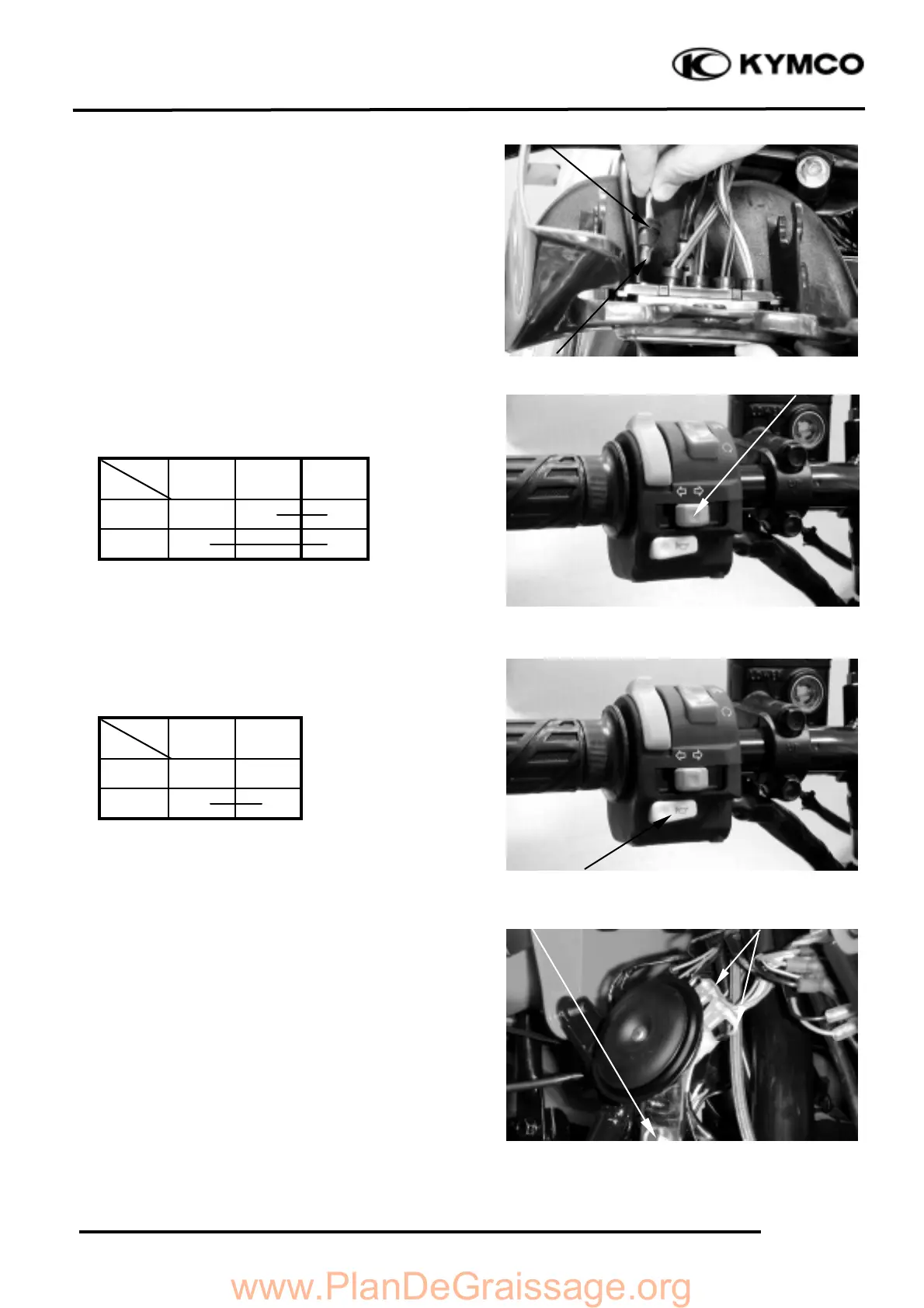

Remove the bulb socket and bulb.
Check the bulb for damage and replace with
a new one if necessary.
INSTALLATION
The installation sequence is the reverse of
removal.
WINKER SWITCH
Check for continuity between the wires
indicated below.
Color
Position
Sky
Blue
Orange
Brown
L
°≥
°≥
R
°≥
°≥
HORN SWITCH
Check for continuity between the wires
indicated below.
Color
Position
Light
Green
Black
FREE
PUSH
°≥
°≥
HORN
REMOVAL
Disconnect the horn switch wire.
Remove the bolt and remove horn.
INSTALLATION
The installation sequence is the reverse of
removal.
Bulb Socket
Bulb
Hazard Switch
Horn Switch wire
Bolt
Horn Switch
