5. FUEL SYSTEM
5-5
MX’er 50

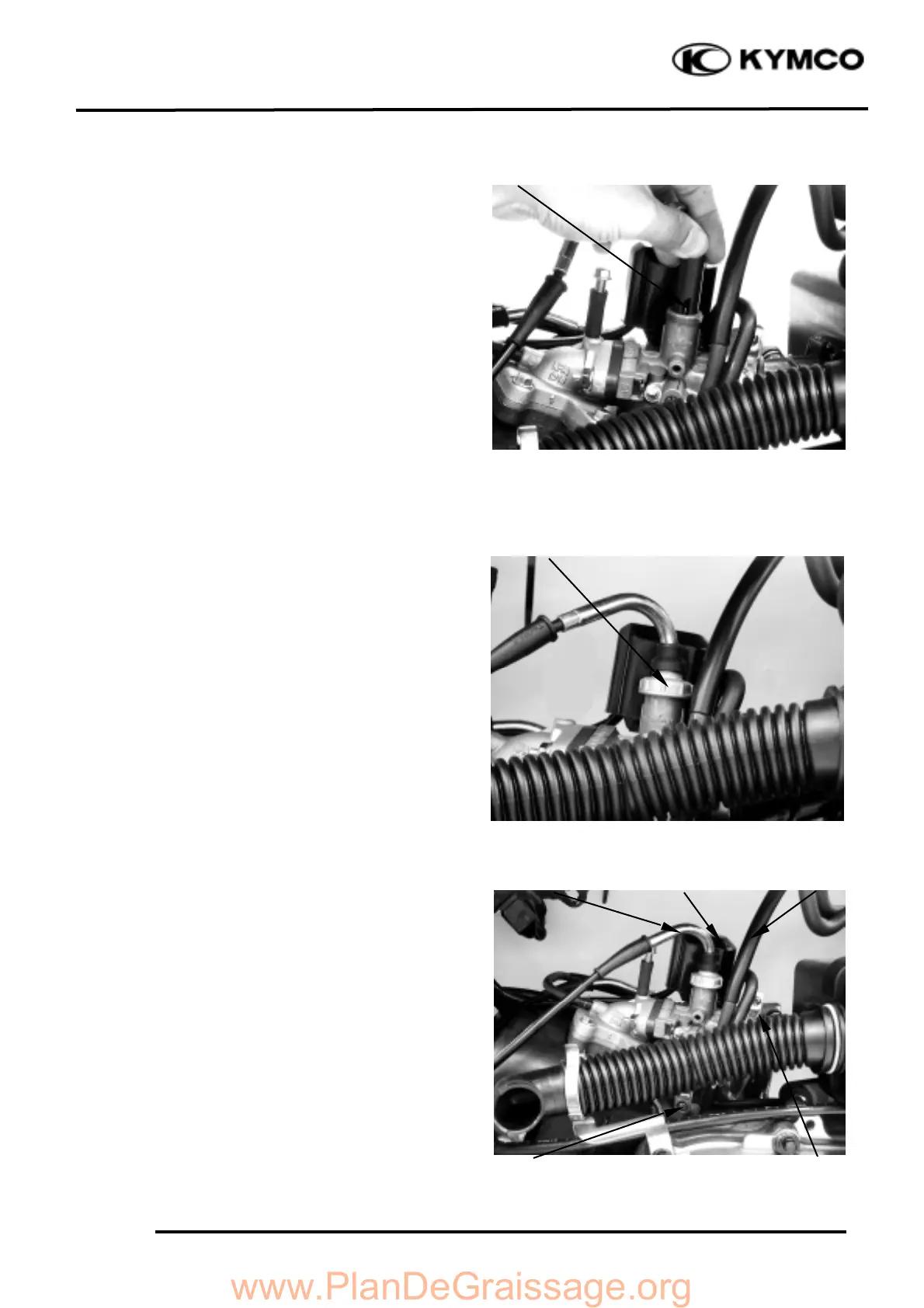

Install the throttle valve by aligning the
groove in the throttle valve with the throttle
stop screw.
Tighten the carburetor cap.
After installation, perform the following
adjustments and inspections.
• Throttle cable free play (
!
3-3)
• Idle speed adjustment (
!
3-7)
Install the met-in box.
CARBURETOR REMOVAL
Remove the air cleaner by removing the air
cleaner band screw and attaching bolts.
Disconnect the fuel tube.
Loosen the drain bolt to drain fuel from the
carburetor.
Disconnect the auto bystarter wire
connector.
Groove
Carburetor Cap
Drain Bolt
Throttle Cable
Fuel Tube
Band
Bystarter
