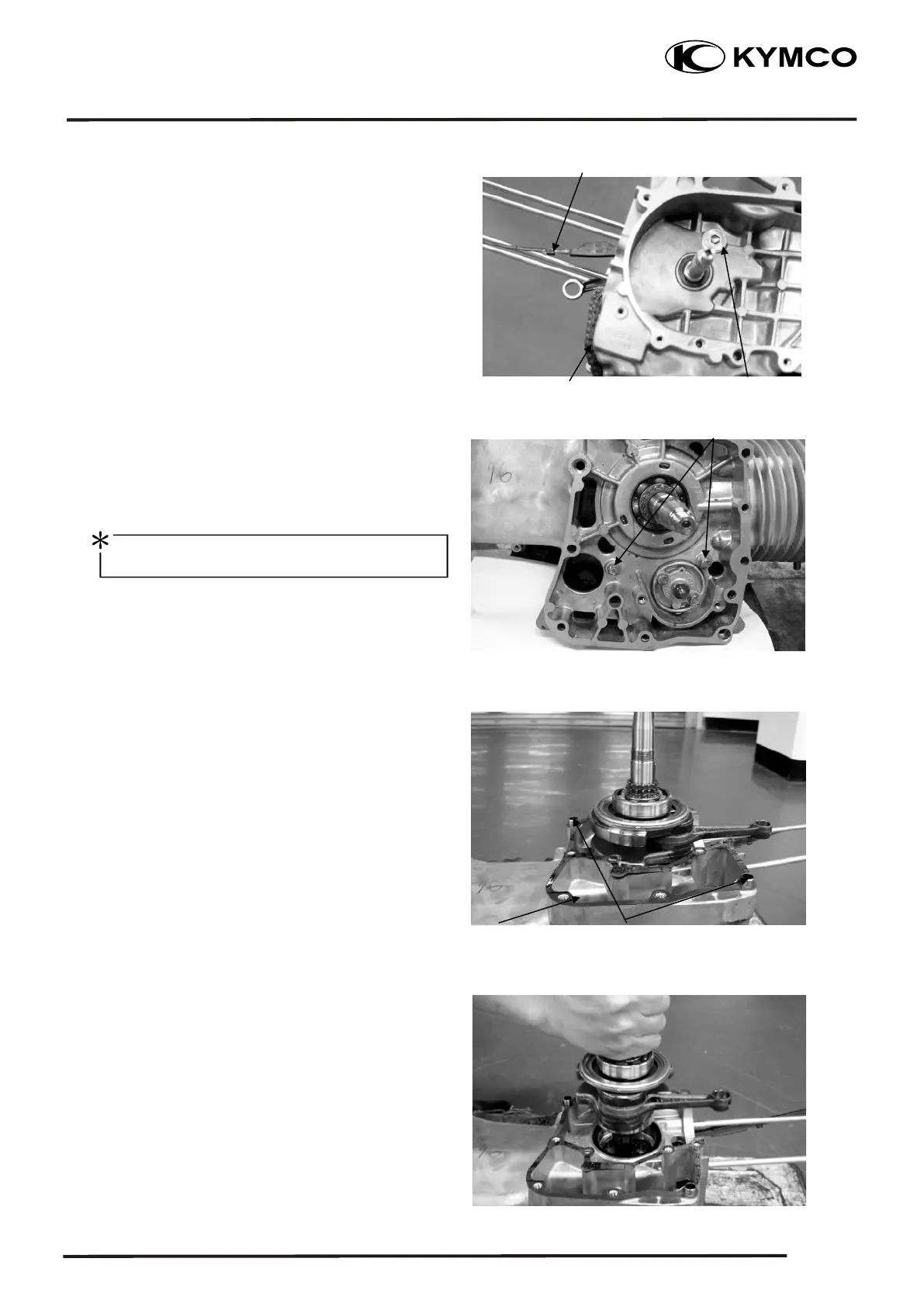

CRANKCASE SEPARATION
Remove the gasket and dowel pins.
Do not damage the crankcase gasket surface
Slipper Bolt
11-2
11. CRANKCASE/CRANKSHAFT
Remove the cam chain tensioner slipper bolt and
cam chain tensioner slipper.
Check if the O ring damaged.
Cam chain
Cam Chain Tension Slipper
Remove two bolts attaching to the right
crankcase.
Remove the right crankcase.
Bolts
Dowel pins
Gasket
Remove the crankshaft from the left crankcase.
