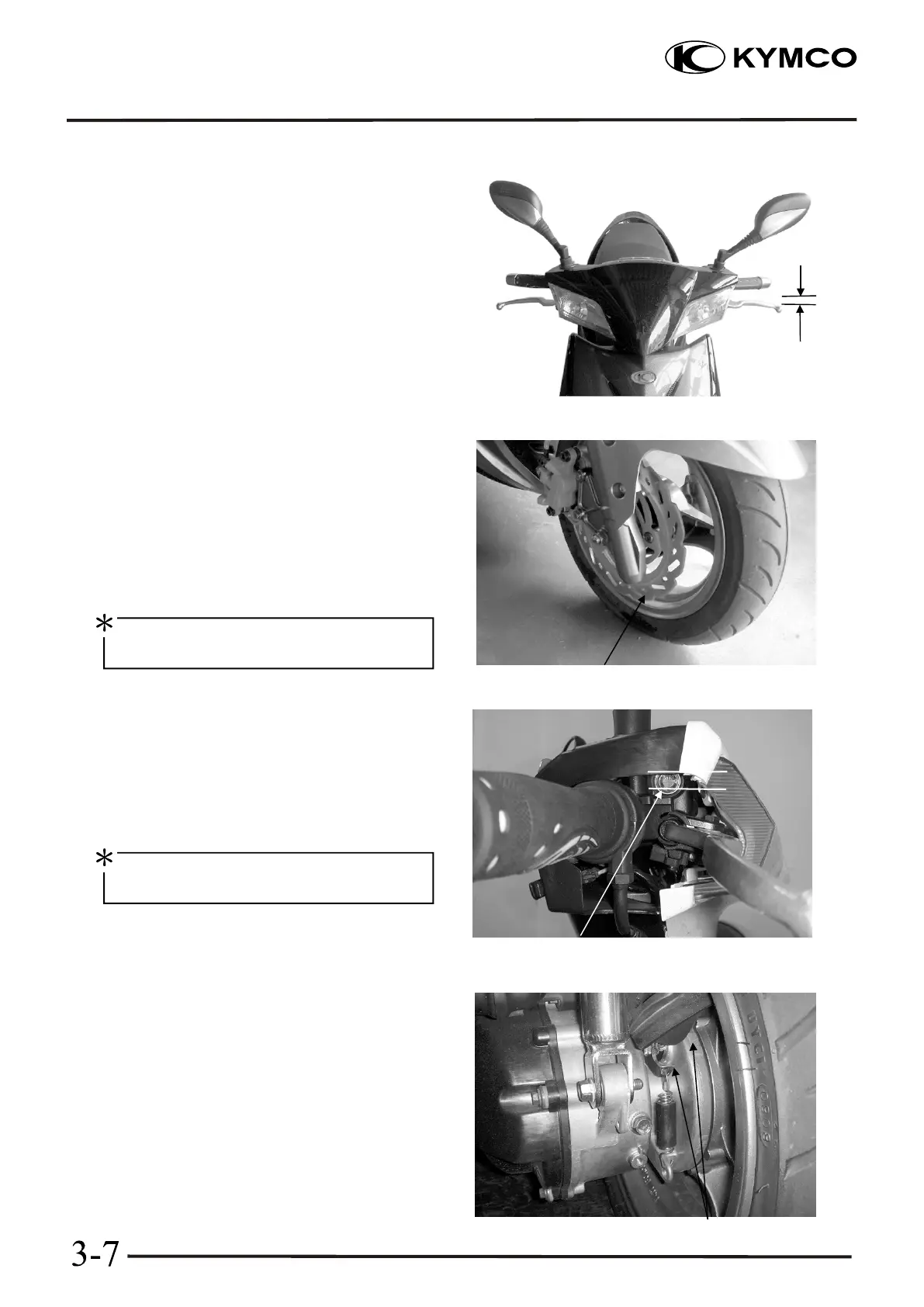

3. INSPECTION/ADJUSTMENT
BRAKE SYSTEM
BRAKE LEVER
Measure the rear brake lever free plays.
Free Play: Front:10～20 mm
Brake disk
BRAKE DISK/BRAKE PAD
Check the brake disk surface for scratches,
unevenness or abnormal wear.
Check if the brake disk runout is within the
specified service limit.
Check if the brake pad wear exceeds the wear
indicator line.
Keep grease or oil off the brake disk to
avoid brake failure.
BRAKE FLUID
Turn the steering handlebar upright and check if
the front brake fluid level is at the upper limit. If the
brake fluid is insufficient, fill to the upper limit.
Specified Brake Fluid: DOT-4
The brake fluid level will decrease if the
brake pads are worn.
BRAKE DRUM/SHOE
《Brake Shoe Wear》
Replace the brake shoes if the arrow on the brake
arm aligns with △ mark on the brake panel when
the brake is fully applied.
《Brake Drum Wear/Damage》
Check the brake drum appearance for damage.
Check if the brake lining wear is within the
specified service limit. Check the brake operation
for abnormal noise and brake drum inside for wear
or damage.
Brake fluid reservoir
Mark
