18. EVAPORATIVE / EMISSION CONTROL SYSTEM Movie S 125i
18-3
SERVICE INFORMATION
GENERAL INSTRUCTIONS
• Do not smoke or allow flames or sparks near the working area.
• Note the locations of tubes for proper installation.
• Replace any damaged tube with a new one.
• Make sure to tighten the connector of each tube securely.
TOOLS
• Vacuum pump
• Pressure pump
SPECIFICATIONS
Purge control valve vacuum pressure 45 mm/Hg
Charcoal canister capacity 90 cc

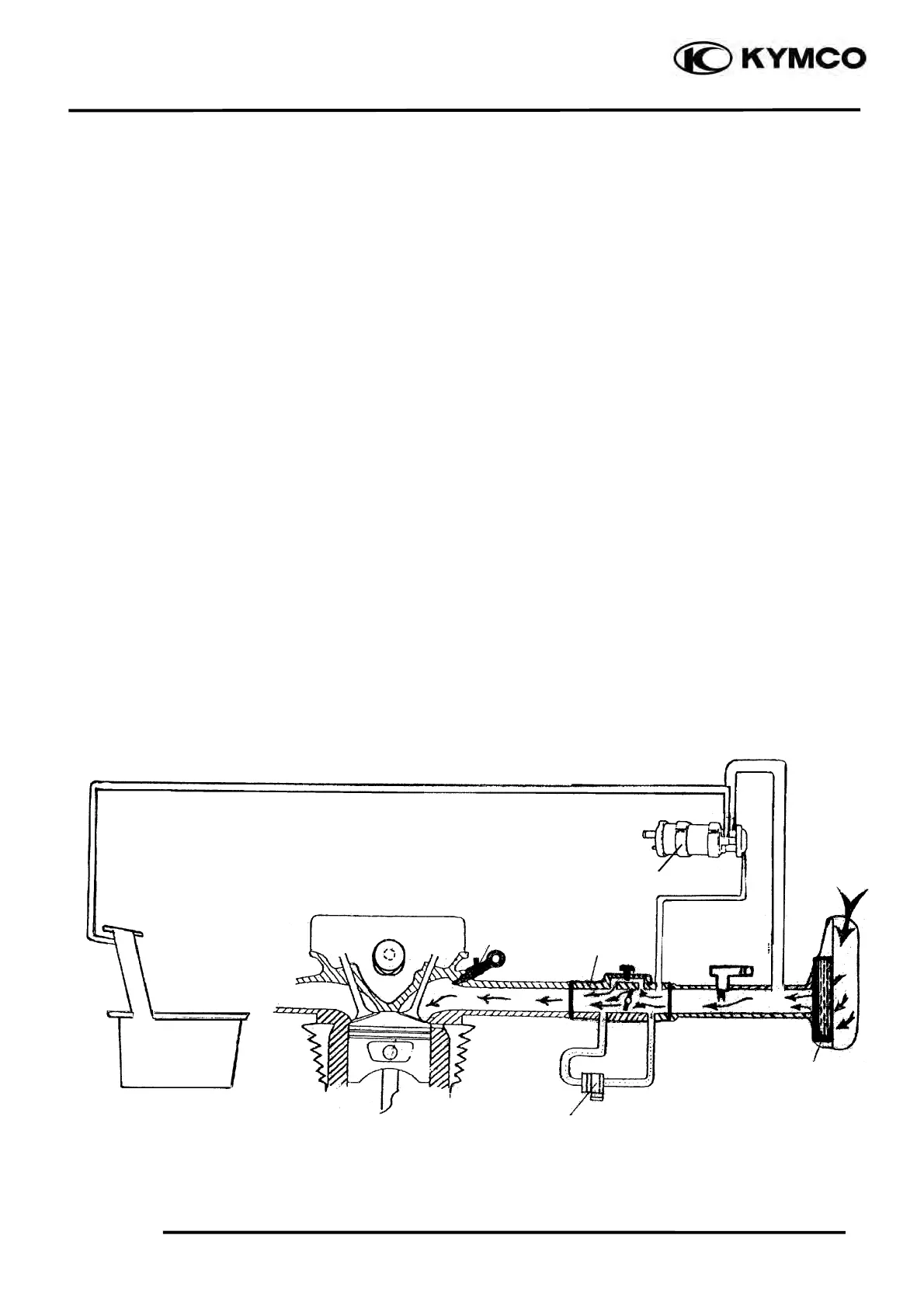

EVAPORATIVE CONTROL SYSTEM
Fuel Tank
Fuel Injector
Throttle Body
Manifold
Absolute
Pressure Sensor
Air Cleaner
Air By Pass Valve
Charcoal Canister/ Purge Control Valve
To Next Page
