REAR FENDER & TAILLIGHT LEN
REMOVAL

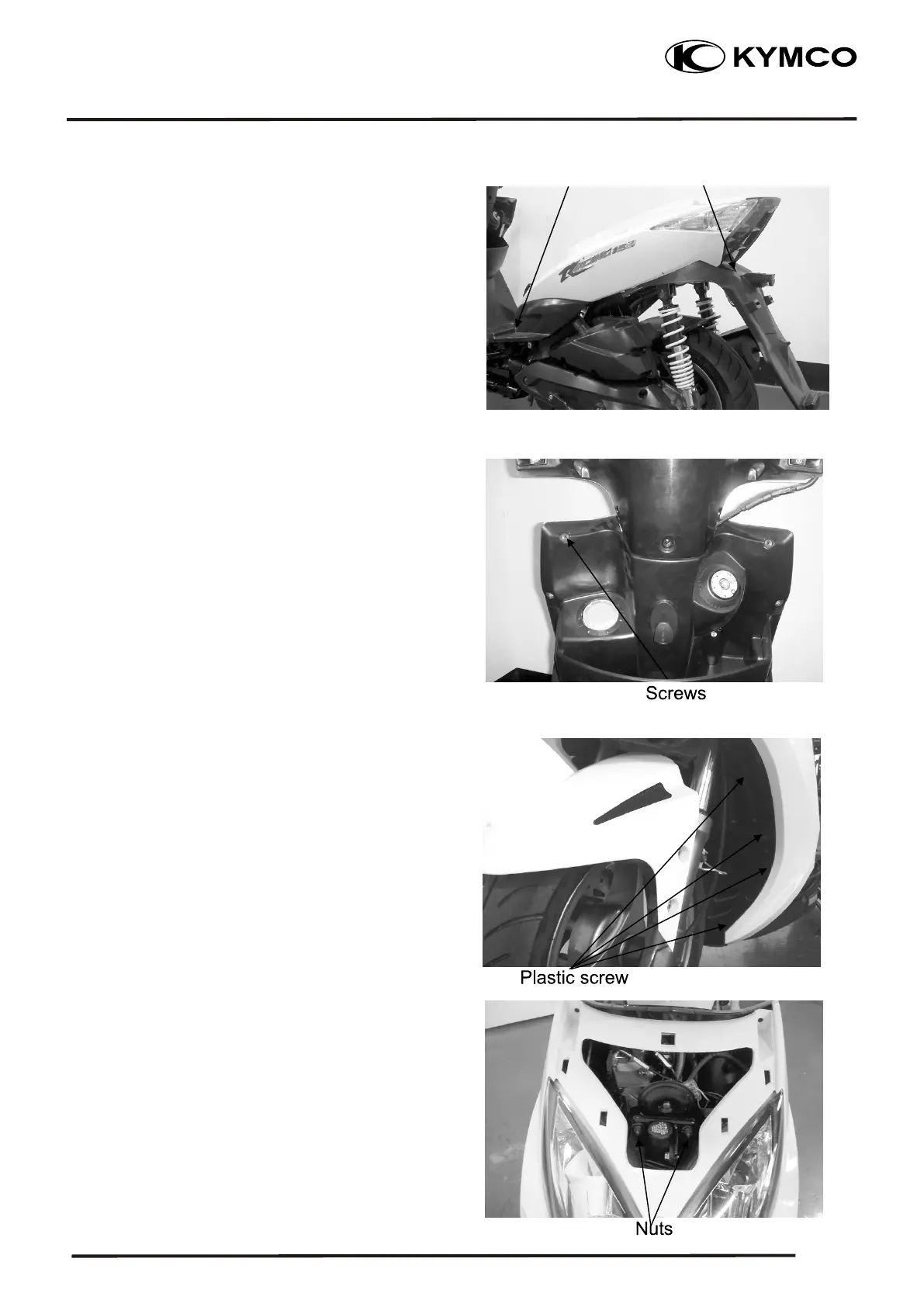

Remove the nut and two bolts attaching to the rear
fender.
Disconnect the tail light connector.
Be careful not to damage the clips attaching
between the front point of body covers and the
floorboard.
Remove two screws attaching to the front cover.
Remove the front center cover.
Be careful not to damage the claw while removing
the front center cover.
Remove four plastic screws attaching to the front
bottom cover.
Remove the front bottom cover.
2. EXHAUST MUFFLER/FRAME COVER
2-2
Screw
Nut
FRONT CENTER COVER REMOVAL
FRONT BOTTOM COVER REMOVAL
Remove four screws onto the leg shield attached to
the front cover.
Remove the two nuts attaching to the front cover.
Disconnect the head light connector.
Remove the front cover.
Installation is in the reverse order of removal.
FRONT COVER REMOVAL
