Starter motor cable
Bolts
16-2
16. STARTING SYSTEM

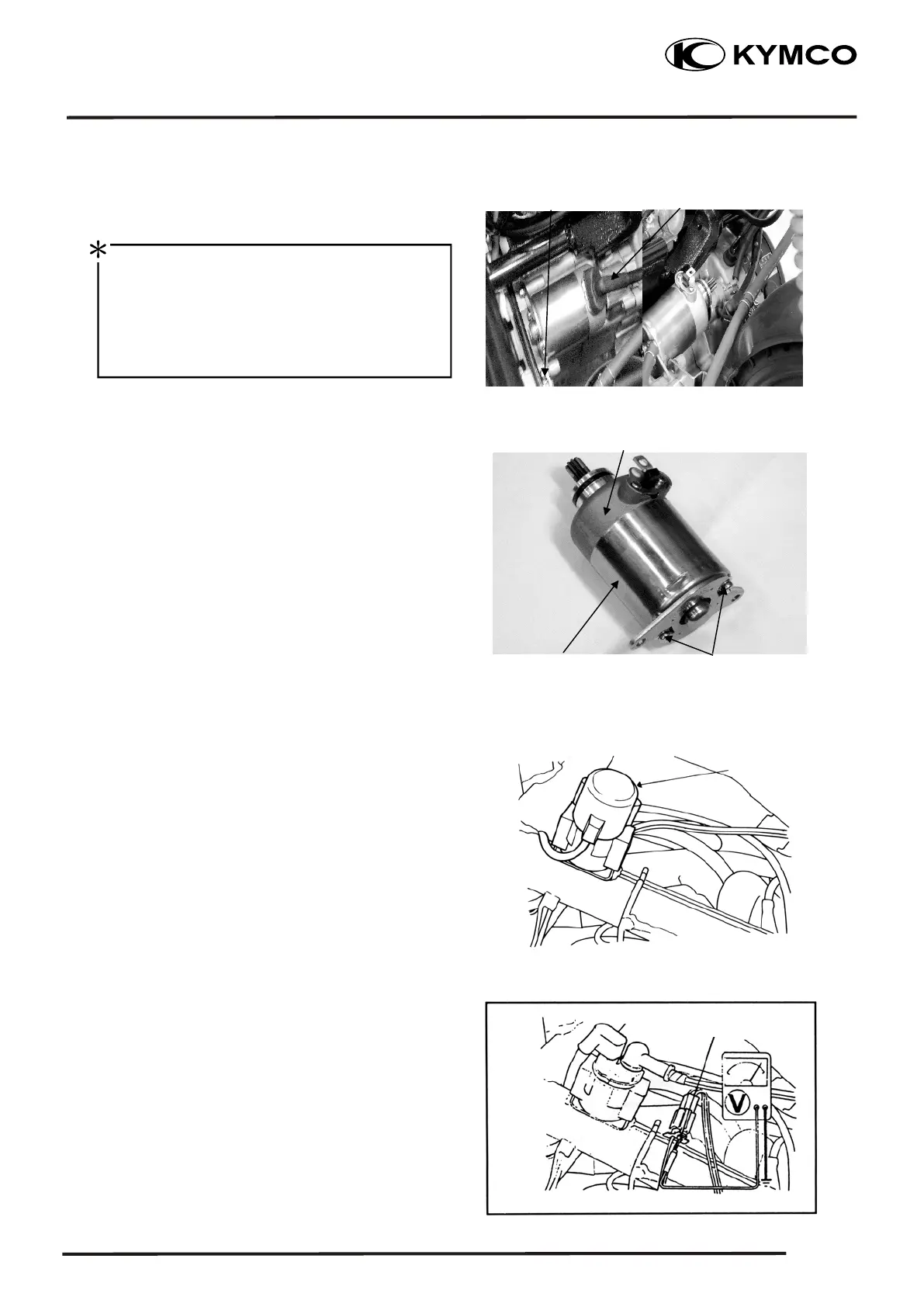

STARTER MOTOR
REMOVAL
Before removing the starter motor, turn the
ignition switch OFF and remove the battery
earth cable.
Turn on the ignition switch and push the
starter switch to see if the starter motor
operates properly.
Remove the starter motor cable. Remove the two
starter motor mounting bolts and the motor starter.
Remove the waterproof rubber jacket and
disconnect the starter motor cable connector.
Front Cover
Case ScrewsMotor Case
Starter relay
G/Y
STARTER RELAY
PERFORMANCE INSPECTION
Remove the body cover.
Turn the ignition switch ON and the starter relay is
normal if you hear a click when the starter button is
depressed.
If no click sound:
1. Inspect the starter relay voltage
2. Inspect the starter relay earth circuit
3. Inspect the starter relay operation
VOLT. INSPECTION
Place the motorcycle on its main stand.
Measure the voltage between the starter relay
connector green/yellow wire and engine ground.
Turn the ignition switch ON and the battery
voltage should be normal when the brake lever is
fully applied.
If the battery has no voltage, inspect the brake lamp
switch continuity and cable.
