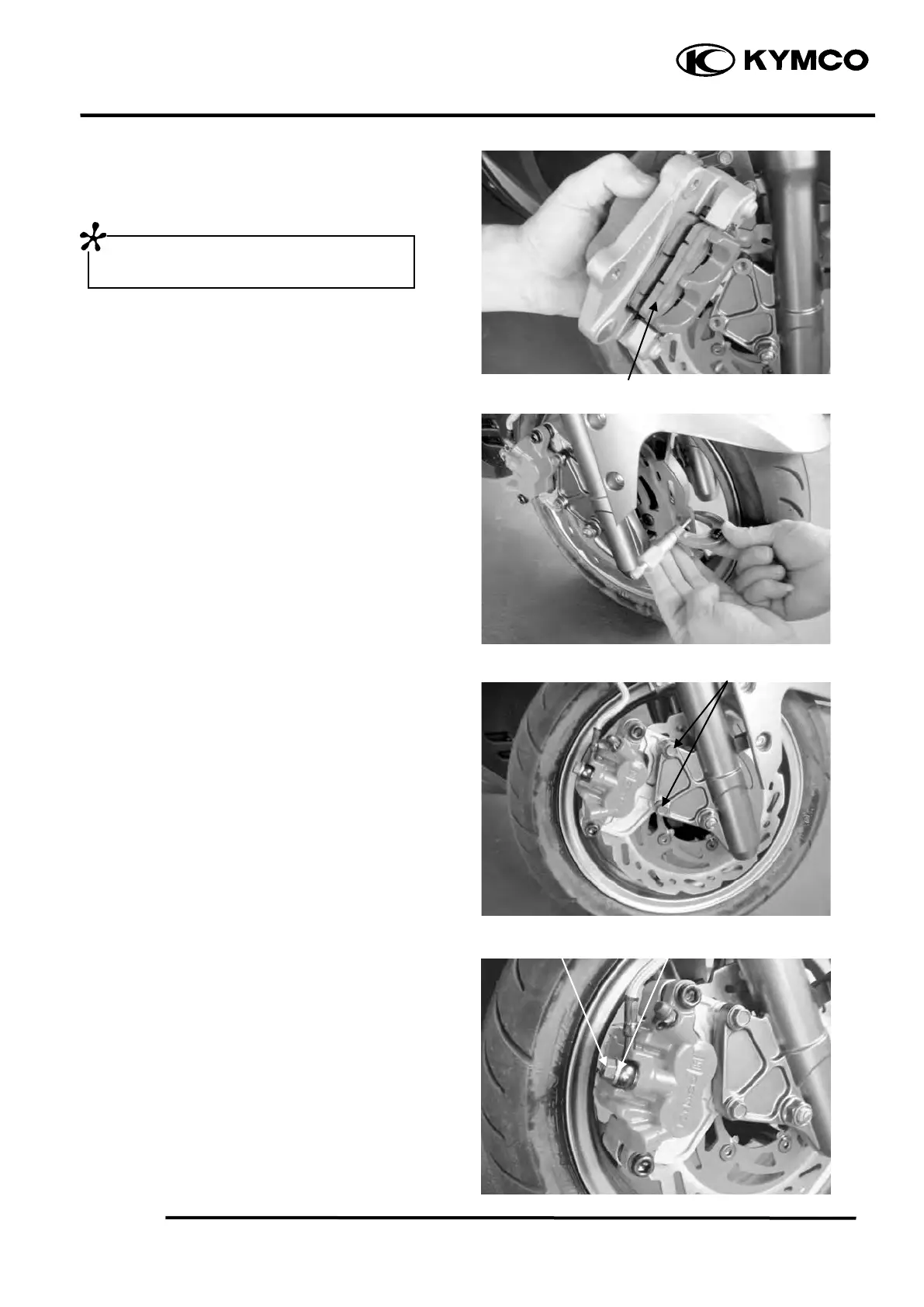

12. FRONT WHEEL/BRAKE/SUSPENSION
Install the brake pads in the reverse order of
removal.
BRAKE DISK
Measure the brake disk thickness.
Service Limit: 3.0 mm
Measure the brake disk runout.
Service Limit: 0.3 mm
INSTALLATION
Install the brake caliper and tighten the two
bolts.
Torque: 2.9
3.5 kg-m
Connect the brake fluid tube to the brake caliper
and tighten the fluid tube bolt.
Torque: 2.5
3.5 kg-m
Fill the brake reservoir with recommended brake
fluid and bleed air from the brake system.
Keep grease or oil off the brake pads to
avoid brake failure.
Brake Pads Comp
Bolts
Bolt Washers
