14. BATTERY/CHARGING SYSTEM/
A.C. GENERATOR
SPECIFICATIONS
TORQUE
CPS bolt
0.5 kg-m
Stator bolt
0.9 kg-m
Flywheel nut
5.5 kg-m
Cooling fan bolt
0.9 kg-m
SPECIAL TOOLS
Universal holder E017
Flywheel puller E002

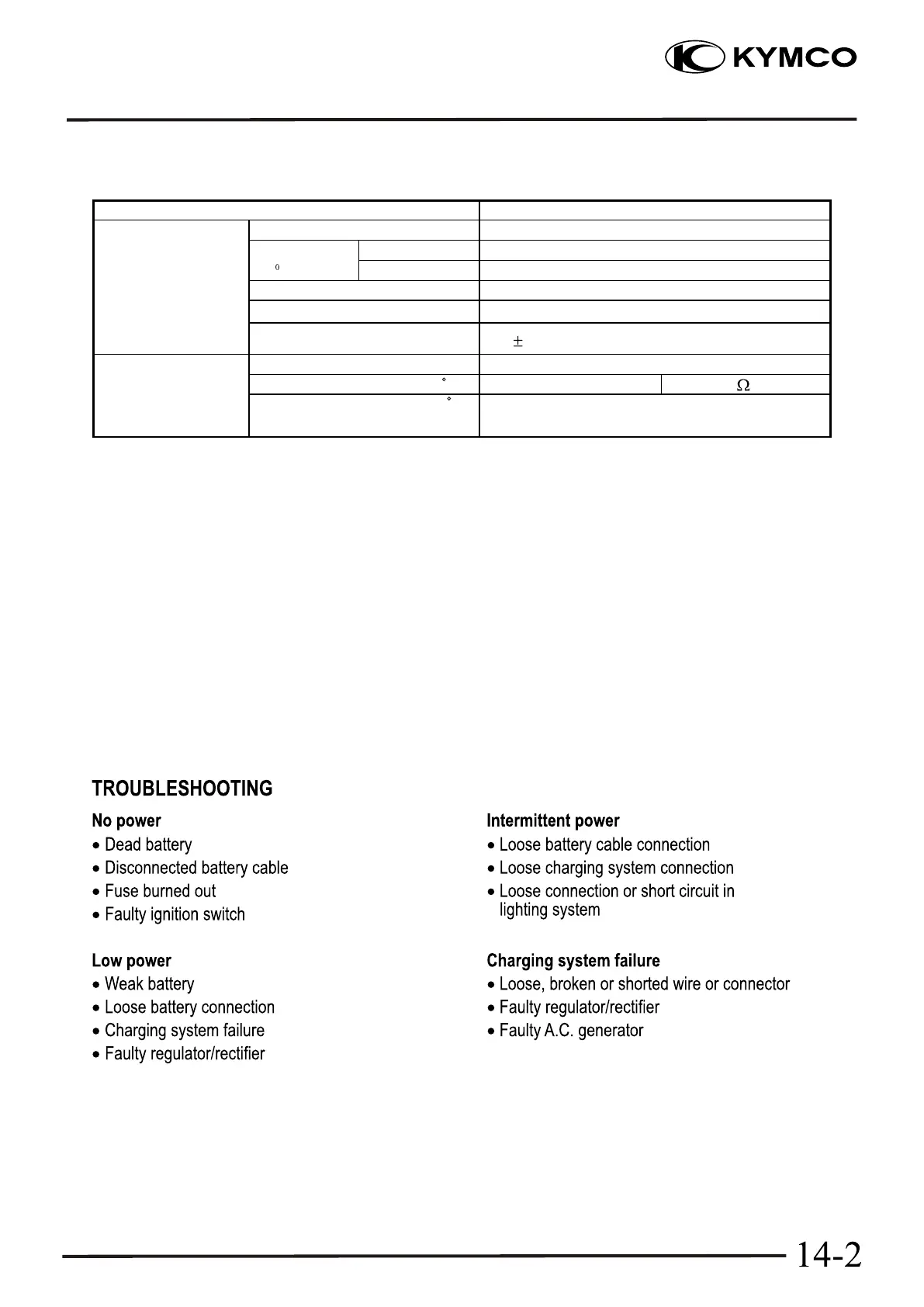

Item Standard
Capacity/Model 12V/YTX9-BS，GTX9-BS
Fully charged 13.1V Voltage
(20 C) Undercharged 12.3V
Charging current STD: 0.9A
Battery
Charging time STD: 5
～
10hr
Capacity 150 W / 5000 rpm
Lighting coil resistance (20 C) Yellow ～ 1.0
～
1.8
A.C. Generator
Charging coil resistance (20
C)
Limit voltage
Yellow
Min. 1.0 A / 2500 rpm
Min. 2.0 A / 6000 rpm
14.5 0.5V/5000rpm
Movie S 125i
