18. EVAPORATIVE / EMISSION CONTROL SYSTEM Movie S 125i
18-10

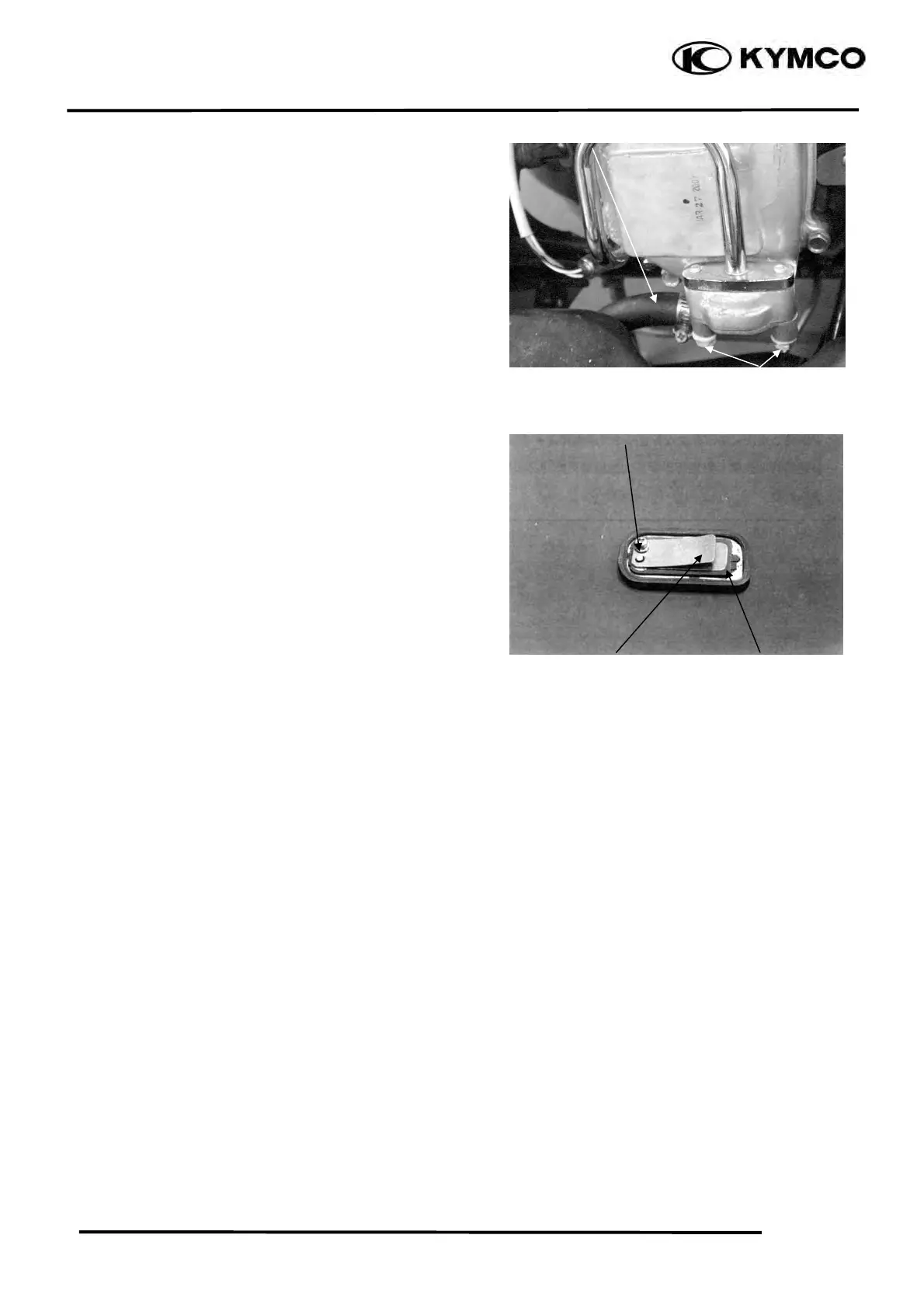

REED VALVE
REMOVAL
INSPECTION
Secondary air inlet tube
Bolts
Bolt
Reed Valve
Reed Valve stoppe
Remove the frame center cover.
Disconnect the secondary air inlet tube
connector.
Remove the reed valve cover and two secondary
air outlet tube nuts.
Check the reed valve for cracks, damage, big
clearance or weak reeds. Replace if necessary.
Check the gasket and O-ring for damage or
deterioration and replace if necessary.
Reed valve stopper clearance: 4.6 mm
