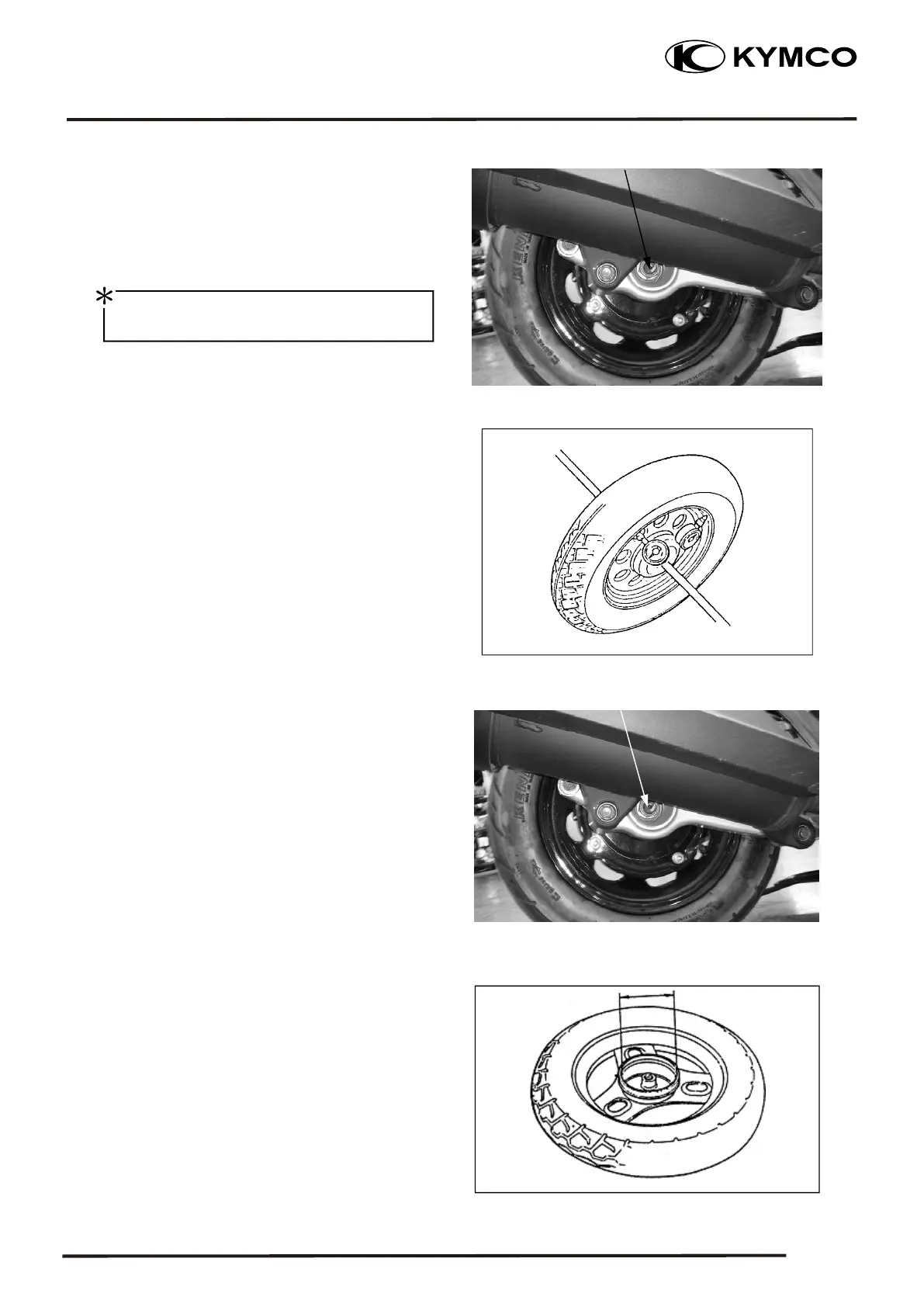

Rear axle nut
REAR WHEEL
13-2
13. REAR WHEEL/REAR BRAKE/
REAR SUSPENSION
REMOVAL
INSPECTION
Measure the rear wheel rim runout.
Service Limits :
Radial : 2.0 mm replace if over
Axial : 2.0 mm replace if over
INSTALLATION
Tighten the rear axle nut.
Torque : 11.0-13.0 kg-m
Install the exhaust muffler.
Torque :
Exhaust muffler joint lock nut : 1.2 kg-m
Exhaust muffler lock bolt : 3.5 kg-m
Remove the O2 sensor’s wire connector.
Remove the exhaust muffler.
Remove the rear axle nut and the rear wheel.
Be careful prevent the O2 sensor from
damage while removing the muffler.
If the rim runout exceeds the specified service
limits, check the final shaft bearing for excessive
play and the final shaft for bending. Inspect the rear
wheel and wheel rim for runout.
Rear axle nut
REAR BRAKE
Remove the rear wheel.
Inspect the rear brake drum.
Measure the rear brake drum I.D.
Service Limits: 131 mm replace if over
