14. BATTERY/CHARGING SYSTEM/
A.C. GENERATOR
When disconnecting the battery positive (+)
cable, do not touch the frame with tool;
otherwise it will cause short circuit and
sparks to fire the fuel.
First connect the positive (+) cable and
the negative (-) cable to avoid short circuit.

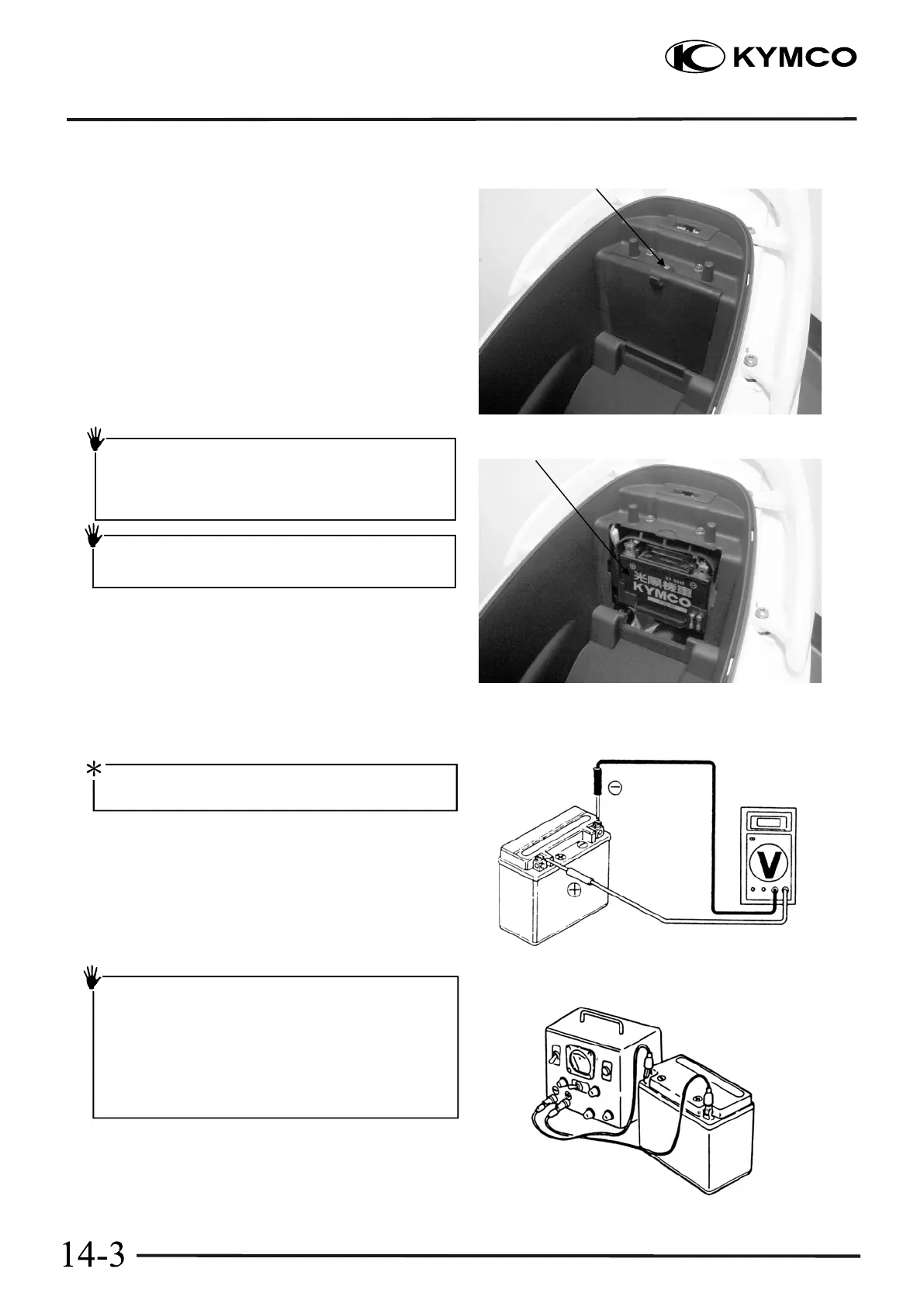

BATTERY VOLTAGE INSPECTION
Battery charging inspection must be performed
with a voltmeter.
Screws
Battery
BATTERY
REMOVAL
Remove the battery cover screws in met in-box.
Open the battery cover and remove the battery by
removing the bolt and band. First disconnect the
battery negative (-) cable and then the positive (+)
cable.
Open the battery cover and disconnect the battery
cables. Measure the voltage between the battery
terminals.
CHARGING
Connect the charger positive (+) cable with the
battery positive (+) terminal. Connect the charger
negative (-) cable with the battery negative (-)
terminal.
Fully charged : 13.1V
Low charged : 12.3V max.
Keep flames and sparks away from a charging
battery. Turn power ON/OFF at the charger, not
at the battery terminals to prevent sparks near
the battery to avoid explosion. Charge the
battery according to the current specified on the
battery.
Charging current : 0.9A
Charging time : 5～10 hours
After charging : 12.8V min.
